- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
In Youth
-
Model Number:
-
SP550M-72HC
-
Place of Origin:
-
Anhui
-
Panel Dimensions:
-
2279*1134*35mm, 2279*1134*35mm
-
Product Name:
-

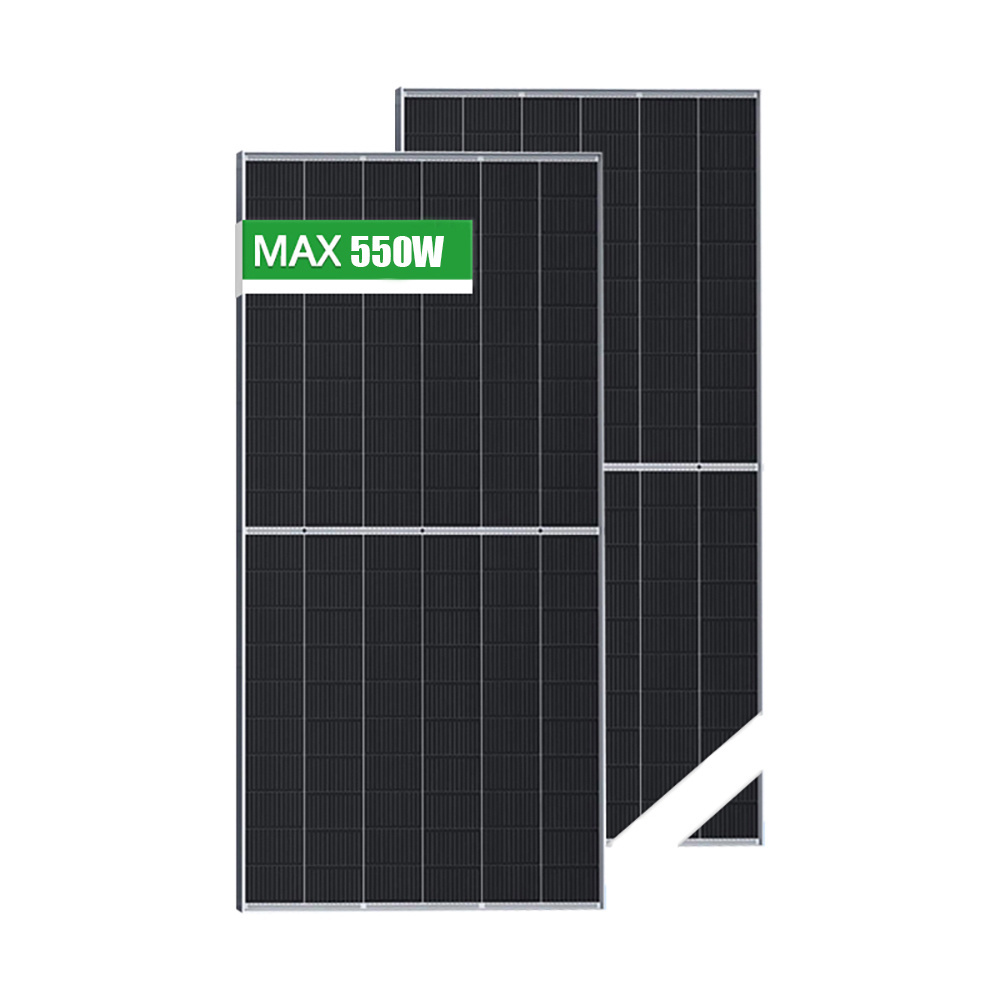

540w 545w 550w monocrystalline 182mm solar cell solar panel
-
Solar Cell:
-
Mono Solar Cell 182*182mm
-
Power:
-
540w/545W/550W
-
OEM Order:
-
Supported
-
Maximum system Voltage:
-
1500V(IEC)
-
Application:
-
Solar System
-
No of Cells:
-
144 half solar cell
-
Power Tolerance:
-
0~+5w Tolerance
-
Packaging:
-
Pallet 31/40HQ 620pcs
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, PERC, Double-glass, Bifacial, All Black, HJT, N-TYPE
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
25 years
-
Brand Name:
-
In Youth
-
Model Number:
-
SP550M-72HC
-
Place of Origin:
-
Anhui
-
Panel Dimensions:
-
2279*1134*35mm, 2279*1134*35mm
-
Product Name:
-
540w 545w 550w monocrystalline 182mm solar cell solar panel
-
Solar Cell:
-
Mono Solar Cell 182*182mm
-
Power:
-
540w/545W/550W
-
OEM Order:
-
Supported
-
Maximum system Voltage:
-
1500V(IEC)
-
Application:
-
Solar System
-
No of Cells:
-
144 half solar cell
-
Power Tolerance:
-
0~+5w Tolerance
-
Packaging:
-
Pallet 31/40HQ 620pcs
Products Description
|
ELECTRICAL SPECIFICATION (STC)
|
|
|
|
|
||||
|
Maximum Power -Pmax(W)
|
540W
|
545W
|
550W
|
555W
|
||||
|
Maximum Power Voltage-Vmp(V)
|
41.03V
|
41.18V
|
41.33V
|
41.48V
|
||||
|
Maximum Power Current-Imp(A)
|
13.17A
|
13.23A
|
13.31A
|
13.38A
|
||||
|
Open Circuit Voltage -Voc(V)
|
49.53V
|
49.68V
|
49.83V
|
49.98V
|
||||
|
Short Circuit Current-Isc(A)
|
13.63A
|
13.71A
|
13.79A
|
13.87A
|
||||
|
Module Eciency(STC) -ηm(%)
|
20.89%
|
21.09%
|
21.28%
|
21.47%
|
||||
|
Power output tolerance(W)
|
0~+5W
|
|
|
|
||||
|
MECHANICAL SPECIFICATIONS
|
|
|
|
|
||||
|
Solar Cell Type
|
182×91mm
|
|
|
|
||||
|
Glass
|
3.2mm templed, high transimission ART coating
|
|
|
|
||||
|
Back Sheet
|
White KPF
|
|
|
|
||||
|
Frame
|
Silver Anodized Aluminium Alloy
|
|
|
|
||||
|
Junction Box
|
IP68
|
|
|
|
||||
|
Output Cable
|
4.0mm2 400/400mm (custmized available)
|
|
|
|
||||
|
Wind/Snow Load
|
2400pa/5400pa
|
|
|
|
||||
|
Module Size
|
2279×1134×35mm
|
|
|
|
||||
|
Weight
|
26.5kg
|
|
|
|
||||
|
Packing
|
31pcs/pallet, 620pcs/40HQ
|
|
|
|
||||
