- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
FD-18A
-
Brand Name:
-
GORENCY
-
Voltage:
-
6VDC
-
Resistance:
-
16Ω
-
Min current:
-
250mA
-
Switch Mode:
-
DC pulse
-
Operating Pressure:
-
0.02Mpa-0.8Mpa
-
Responding Time:
-
Open ≤0.15s close≤0.5s
-
Service life:
-
950000 cycles
-
inlet size:
-
1/2"
-
outlet size:
-
1/2"
-
Color:
-
Black and white
Quick Details
-
Port Size:
-
1/2"
-
Warranty:
-
2 Years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
FD-18A
-
Brand Name:
-
GORENCY
-
Voltage:
-
6VDC
-
Resistance:
-
16Ω
-
Min current:
-
250mA
-
Switch Mode:
-
DC pulse
-
Operating Pressure:
-
0.02Mpa-0.8Mpa
-
Responding Time:
-
Open ≤0.15s close≤0.5s
-
Service life:
-
950000 cycles
-
inlet size:
-
1/2"
-
outlet size:
-
1/2"
-
Color:
-
Black and white
Product Description
|
Rated Voltage
|
DC6V
|
DC12V
|
DC24V
|
||
|
Coil Resistance
|
16Ω ±0.5Ω(20ºC)
|
36Ω± 5Ω(20ºC)
|
130Ω ±5Ω(20ºC)
|
||
|
Min Current
|
250mA
|
300mA
|
166mA
|
||
|
Switch Mode
|
DC pulse(latching type)
|
AC and DC continuous(normal closed type)
|
|
||
|
Operating Pressure
|
0.02Mpa-0.8Mpa
|
|
|
||
|
Media Temperature
|
1ºC--75ºC
|
|
|
||
|
Responding Time
|
Open ≤0.15s close≤0.5s
|
|
|
||
|
Service life
|
≥1000000 cycles
|
|
|
||
Product Feature

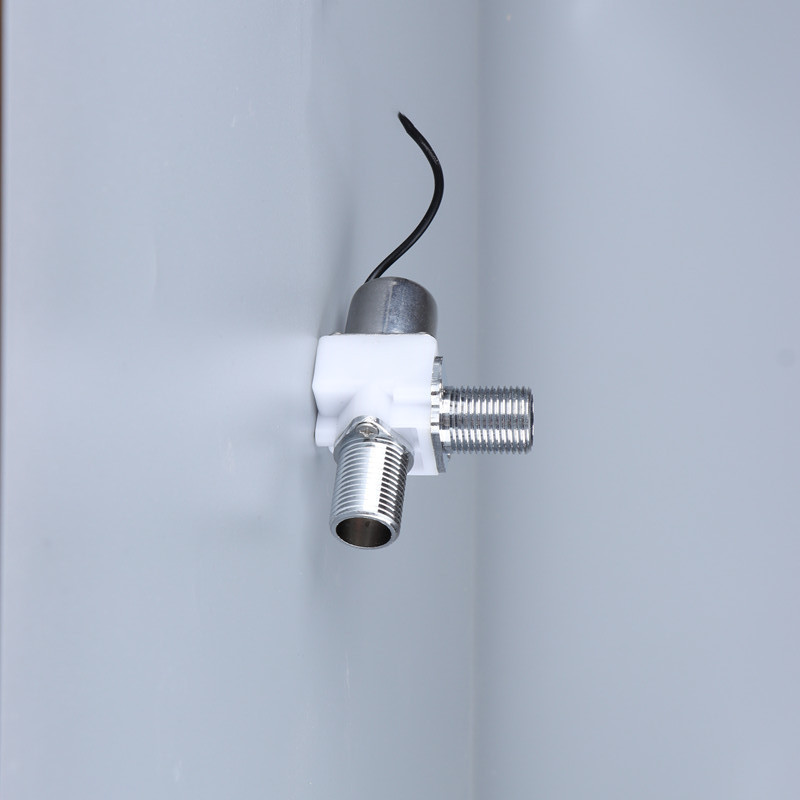

energy-saving type bi-stable pulse solenoid valve，they are widely used in intelligent toilet automatic flushing control, induction sanitary ware, solar automatic water supply control, household appliances, washing equipment, food processing, garden irrigation, intelligent water meter and engineering water control systems, etc.
Brass inlet & outlet joint, G1/2”, inlet filter
SS material, waterproof IP67
Waterproof connector wires
Company Introduction
Wenzhou Yuanjing Intelligent Home Co., Ltd, was established in 1983 and located in Wenzhou Zhejiang China. We were the first and best company in China who develop sensor modules, sensor faucet, sensor urinal, hand dryer, soap dispenser and so on. Moreover, we are a Chinese high-tech enterprise with multiple utility model patents and inventions patents.
We are developed to providing you professional, intelligent, environmentally-friendly and high quality kitchen and bathroom sensor sanitary wares. We are also devoted to providing professional intelligent water solutions for enterprise in the kitchen and bathroom fields. We are committed to improving your life with intelligent water solutions.
Our Advantage
1.We were the first and best company in China who develop sensor modules, sensor faucet, sensor urinal, hand dryer, soap dispenser and so on.
2.Your inquiry will be replied in 2 hours.
3.Well-trained and experienced staff in GORENCY will reply your inquires with fluent English.
4.OEM is provided for your designing as well as our models.
5.Follow business confidential rules.
Certificate
Sample Display
Partner
Packing&Shipping
Soft Protection Cushion + Carton
FAQ
Q1: Are you trading company or manufacturer?
A: Yes, we are professional sensor sanitary wares manufacturer. We supply automatic hand dryer, automatic faucet, sensor urinal and toilet flusher. We have 2 factories in Fuzhou and Guangdong.
Q2: Can we place a trial order to do some test?
A: Sure, we have test our products for many terms, also you can do more tests. Generally, trial order is also welcomed. We would like more new customers to place trial order.
Q3: Do you accept OEM order?
A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery.
Q4: What is your terms of payment?
A: T/T, L/C at sight, and Western Union are available for our company.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q6: How about your delivery time?
A: 35 days for container order, 7-10 days for sample order. The specific delivery time depends on the items and the quantity of your order.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2years warranty to our products.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customer`s benefit.
2. We respect every customer as our friend sincerely and hope to do long-term business and make friends with you, no matter where you come from.
