- Product Details
- {{item.text}}
Quick Details
-
Application:
-
mortar spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Dimension(L*W*H):
-
1650*550*1200mm
-
Weight:
-
320 kg
-
Power:
-
5.5kw
-
Product name:
-
Cement Mortar Spraying Machine
-
Applicable materials:
-
Mortar Cement Water
-
After-sales Service Provided:
-
Video Technical Support
-
Keyword:
-
Cement Mortar Plaster Spraying Machine
-
Function:
-
Wet Model Plastering Machine
-
Voltage:
-
380v
-
Main Motor Power:
-
5.5kw
-
Bucket Volume:
-
50L
Quick Details
-
Max. vertical conveying distance:
-
30M
-
Max. horizontal conveying distance:
-
50M
-
Hopper Capacity:
-
3m3/h
-
Application:
-
mortar spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Dimension(L*W*H):
-
1650*550*1200mm
-
Weight:
-
320 kg
-
Power:
-
5.5kw
-
Product name:
-
Cement Mortar Spraying Machine
-
Applicable materials:
-
Mortar Cement Water
-
After-sales Service Provided:
-
Video Technical Support
-
Keyword:
-
Cement Mortar Plaster Spraying Machine
-
Function:
-
Wet Model Plastering Machine
-
Voltage:
-
380v
-
Main Motor Power:
-
5.5kw
-
Bucket Volume:
-
50L
Product Description

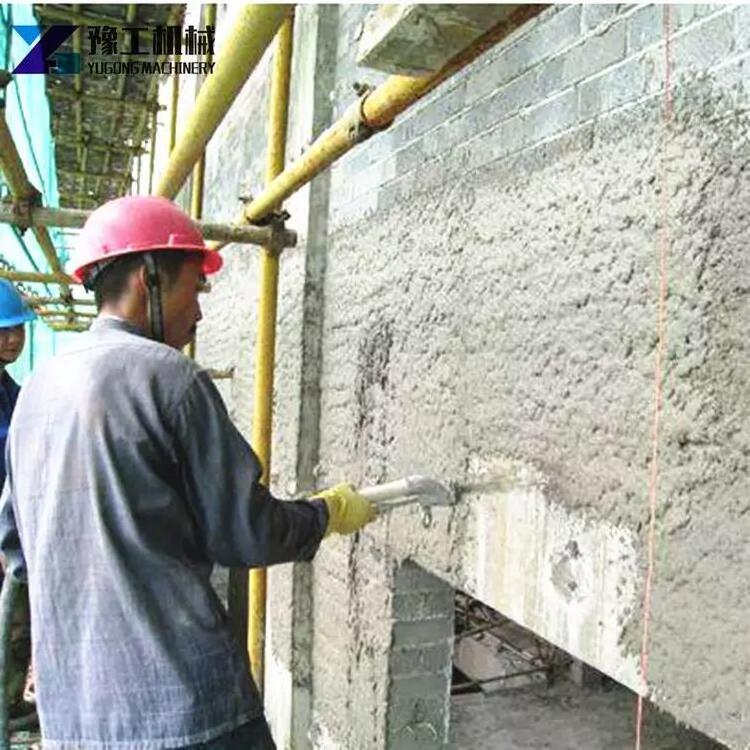

Mortar spraying machine, a kind of spraying machine can be called mortar sprayer, mortar spray equipment, cement mortar spraying machine, stucco machine which has a wide range of uses. It is commonly used for indoor and outdoor wall spraying, cement mortar grouting, bridge grouting and waterproof, fireproof, ceiling, wall, paint, garden spraying, as well as relief effect coating, sound-absorbing material spraying, waterproof plugging and filling.
The mortar spraying machine is very easy to operate which don’t need scaffolding, mobile equipment, even the small corners and roof can be freely spray. The use of this equipment can greatly shorten the construction period, improve work efficiency and save the expense of shelf materials.
Specification
|
Model
|
YG-311
|
YG-511
|
YG-711
|
YG-712 with mixer
|
|
Output
|
3m³/h
|
3-4m³/h
|
4m³/h
|
4m³/h
|
|
Pressure
|
3Mpa
|
3MPa
|
3MPa
|
6MPa
|
|
Applicable Material Ratio(Water,Ash,Sand)
|
0.7-1:1:3
|
0.7-1:1:3
|
0.7-1:1:3
|
0.7-1:1:3
|
|
Voltage
|
220v/380v
|
Diesel engine
|
380v
|
380v
|
|
Power
|
4kw
|
8hp/12hp
|
7.5kw
|
Main power: 7.5kw
Mixer power: 3kw
|
|
Hopper Volume
|
60L
|
80L
|
100L
|
100L
|
|
Vertical conveying distance
|
20m
|
30m
|
30m
|
30m
|
|
Horizontal Conveying Distance
|
30m
|
50m
|
50m
|
50m
|
|
Particle Diameter
|
≤4mm
|
≤8mm
|
≤8mm
|
≤6mm
|
|
Weight
|
200kg
|
320kg
|
320kg
|
370kg
|
Features
1.The high efficiency mortar spraying machine has a reasonable design, an integrated pump and compressor, and is easy to move.
2.Screw mortar spraying machine continuous feeding without pulse.
3.The mortar spraying machine has a wide range of practicability. It can spray dry powder, mortar, and ordinary mortar.
4.The machine featured with uniform spraying and strong adhesion.
5.The mortar spraying machine is multi-functional device and can be both sprayed or shotcreted.
6.The gun and nozzle connection can be selected in any direction for easy operation.
2.Screw mortar spraying machine continuous feeding without pulse.
3.The mortar spraying machine has a wide range of practicability. It can spray dry powder, mortar, and ordinary mortar.
4.The machine featured with uniform spraying and strong adhesion.
5.The mortar spraying machine is multi-functional device and can be both sprayed or shotcreted.
6.The gun and nozzle connection can be selected in any direction for easy operation.
Application
Packing & Delivery
1. Packaging:
2. Shipping:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
