Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
220V/380V, 220v/customized( add transformer)
-
Dimension(L*W*H):
-
1200*1500*1600mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
250
-
Spindle:
-
1.5kw water cooling spindle
-
Motor:
-
Stepper motor 450A
-
Driver:
-
AIGT 542 driver
-
Inverter:
-
1.5kw inverter
-
Z axis:
-
Z axis TBI-1610 ball screw
-
X,Y axis:
-
X,Y axis TBI-1610 ball screw
-
Control system:
-
March 3 control system, support laptop control, independent cabinet
-
Machine body:
-
Aero-aluminium plate with oxidation protection treatment
-
Net weight:
-
250kg
-
Certification:
-
CE, ISO
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
220V/380V, 220v/customized( add transformer)
-
Dimension(L*W*H):
-
1200*1500*1600mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
250
-
Spindle:
-
1.5kw water cooling spindle
-
Motor:
-
Stepper motor 450A
-
Driver:
-
AIGT 542 driver
-
Inverter:
-
1.5kw inverter
-
Z axis:
-
Z axis TBI-1610 ball screw
-
X,Y axis:
-
X,Y axis TBI-1610 ball screw
-
Control system:
-
March 3 control system, support laptop control, independent cabinet
-
Machine body:
-
Aero-aluminium plate with oxidation protection treatment
-
Net weight:
-
250kg
-
Certification:
-
CE, ISO

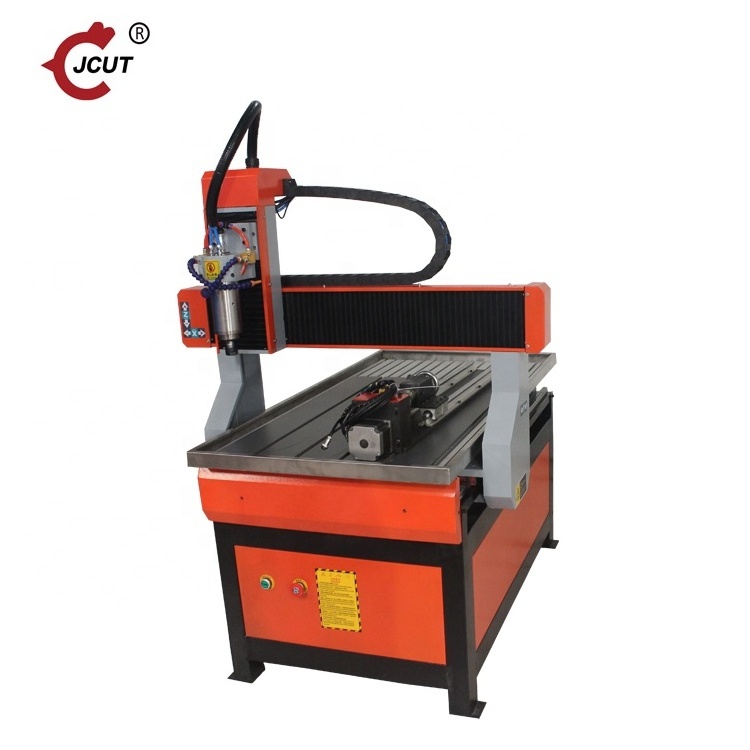

jcut Cnc 6090/functional oscillating knife router carton gasket cnc cutting machine
It is widely used in processing wood, acrylic, dual color board, plastic, stone, glass, metal (aluminum, brass, stainless steel), wood, acrylic, dual color board, plastic, stone, glass as well as many other nonmetal materials, and can do perfect 2D/3D carving or cutting.
Configuration can be customized according to customer requirements.
|
6090 CNC advertising machine |
|
|
Spindle |
1.5kw water cooling spindle |
|
Motor |
Stepper motor 450A |
|
Driver |
AIGT 542 driver |
|
Inverter |
1.5kw inverter |
|
Z axis |
Z axis TBI-1610 ball screw |
|
X,Y axis |
X,Y axis TBI-1610 ball screw |
|
Control system |
March 3 control system, support laptop control, independent cabinet |
|
Voltage |
220v/customized( add transformer) |
|
Machine body |
Aero-aluminium plate with oxidation protection treatment |
|
Machine size |
1200*1500*1600mm |
|
Net weight |
250kg |
Packaging: Wooden box
Shipping: About 10~15 working days after confirm the order
1. We provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price from us.
3. Email/ Skype/ MSN/ Trade manager online to support.
4. Life-long Technical Support and After-sale Service free of charge.
5. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
6. Free and Professional Training at our Factory under the relaxed condition.
