Quick Details
-
Brand Name:
-
jieyouth
-
Model Number:
-
Li-10840 700mAh 3.7V
-
Battery Size:
-
10840
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
17±2g
-
The charging ratio:
-
0.2c
-
The discharge rate:
-
0.1c
-
Battery type:
-
Lithium Ion Battery
-
Product name:
-
Li-10840
-
Capacity:
-
700mAh
-
Size:
-
10.5*84mm
-
Standard Discharge:
-
CC,0.2C5A, 3.00V
-
End-of-charge Voltage:
-
4.20V±0.05V
-
OEM/ODM:
-
Accepatable
-
Color:
-
Purple
-
Chargeable:
-
Yes
Quick Details
-
Storage Type:
-
dry
-
Anode Material:
-
NCM
-
Application:
-
Toys, Power Tools, Consumer Electronics, The strong light flashlight
-
Brand Name:
-
jieyouth
-
Model Number:
-
Li-10840 700mAh 3.7V
-
Battery Size:
-
10840
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
17±2g
-
The charging ratio:
-
0.2c
-
The discharge rate:
-
0.1c
-
Battery type:
-
Lithium Ion Battery
-
Product name:
-
Li-10840
-
Capacity:
-
700mAh
-
Size:
-
10.5*84mm
-
Standard Discharge:
-
CC,0.2C5A, 3.00V
-
End-of-charge Voltage:
-
4.20V±0.05V
-
OEM/ODM:
-
Accepatable
-
Color:
-
Purple
-
Chargeable:
-
Yes
Product Description
|

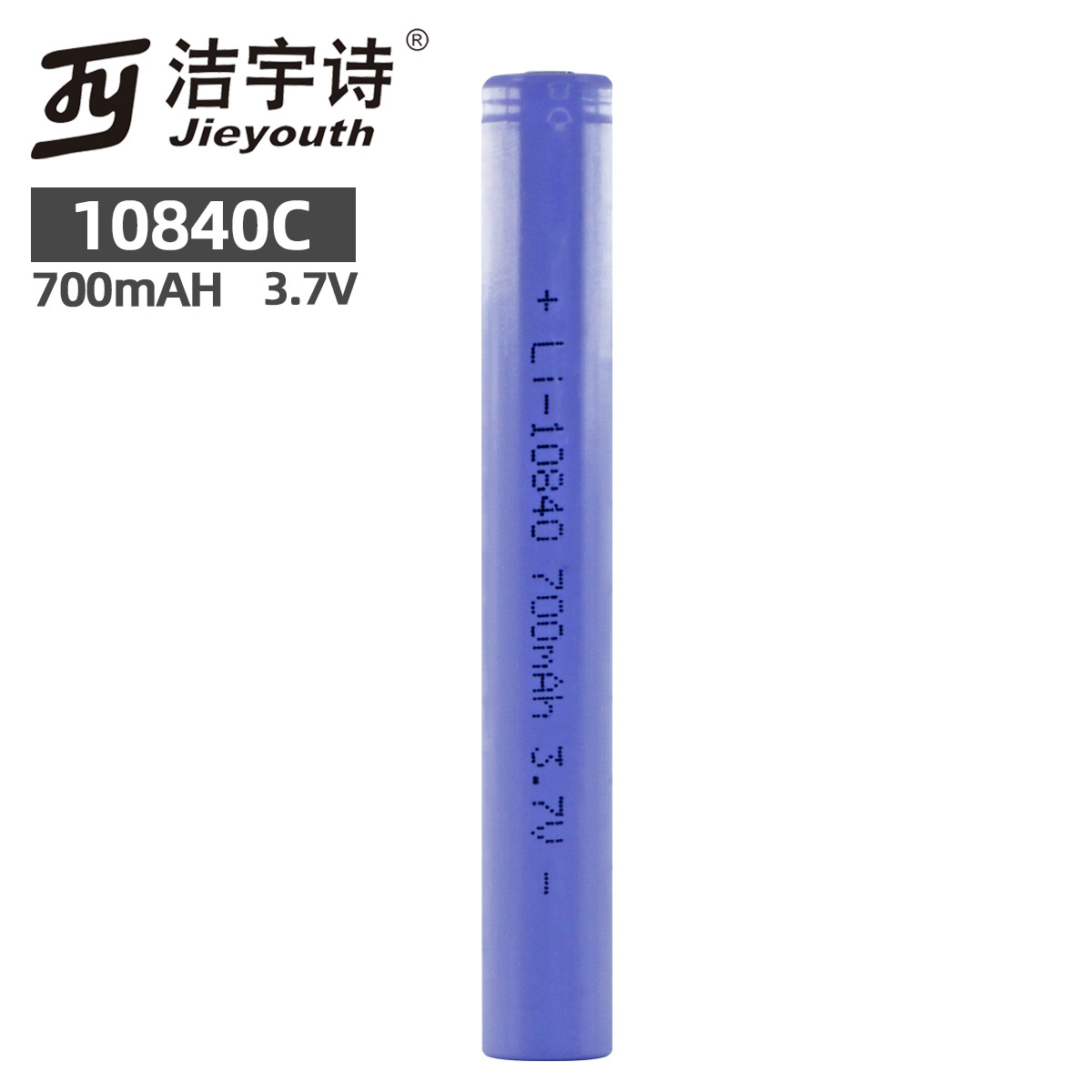

Model
|
10840C
|
|
Nominal voltage
|
3.7V
|
|
Nominal capacity
|
700mAh
|
|
Diameter
|
10.5mm－0.7
|
|
Height
|
84.0mm－0.6
|
|
Weight
|
17±2g
|
|
Standard Charge
|
CC/CV,0.2C
5
A, 4.20V
|
|
Standard Discharge
|
CC,0.2C
5
A, 3.00V
|
|
End-of-charge Voltage
|
4.20V±0.05V
|
|
End-of-charge Current
|
0.02C
5
A （At CV mode）
|
|
End-of-discharge Voltage
|
3.00V
|
|
Charging Time
|
8.0hours（standard charge）
|
|
Quick Charge Current
|
1.0C
5
rate
|
|
Quick Discharge Current
|
2.0C
5
rate
|
|
Maximum instantaneous pulse discharge current
|
3.0
C
5
rate
|
|
Initial Impedance
|
Max:55mΩ
|
|
Operating temperature
|
Charging： 0℃~45℃ Discharging：-20℃~60℃
|
|
Storage temperature
|
-5℃~35℃
|
|
Storage Humidity
|
≤75% RH
|
|
Standard environmental condition
|
Temperature： 25±2℃ Humidity : 45-75%RH
Atmospheric Pressure： 86-106 KPA |
|
Temperature Dependence of Discharge Capacity
|
-10℃:50% 0℃:80% 15℃:90% 25℃:100% 40℃:100%
|
|
Cycle Life
|
≥500 times
|
