- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China (Mainland)
-
Brand Name:
-
BFT
-
Weight (KG):
-
490 KG
-
Product name:
-
Co2 Laser Cutting Engraving Machine
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Cutting materials:
-
Acrylic Wood Mdf Plywood Plactical
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Voltage:
-
110V/2200V 50~60Hz
-
Working table:
-
Honeycomb Table
-
Control system:
-
RuiDa RDC6445G
-
Compatible software:
-
Ruida Support Coreldraw AI
-
Transmission:
-
Linear Rail + Belt
-
Key words:
-
CO2 Laser Cuttting Machine 1390
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China (Mainland)
-
Brand Name:
-
BFT
-
Weight (KG):
-
490 KG
-
Product name:
-
Co2 Laser Cutting Engraving Machine
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Cutting materials:
-
Acrylic Wood Mdf Plywood Plactical
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Voltage:
-
110V/2200V 50~60Hz
-
Working table:
-
Honeycomb Table
-
Control system:
-
RuiDa RDC6445G
-
Compatible software:
-
Ruida Support Coreldraw AI
-
Transmission:
-
Linear Rail + Belt
-
Key words:
-
CO2 Laser Cuttting Machine 1390
Products Description

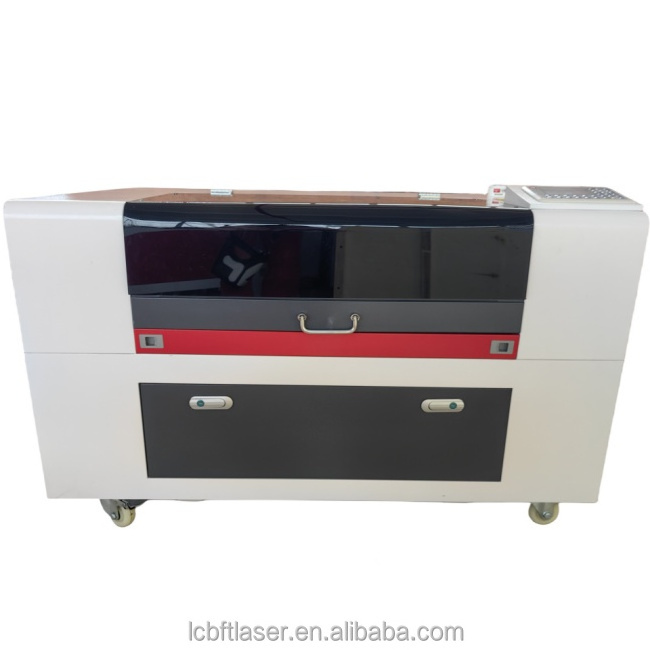

CO2 LASER ENGRAVIGN AND CUTTING MACHINE
Laser engraving and cutting machine with CO2 sealed laser tube. Able to engrave and cut most non-metal materials and thin metal material like acrylic, wood, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic ECT
Product Paramenters
|
Specification of co2 laser cutting machine co2 6040/1060/9060 laser cutting machine
|
|
|
|
|
|
|||||
|
Working Table Size
|
400mm *600mm /1000*600mm/900*600mm
|
|
|
|
|
|||||
|
Laser Tube
|
Sealed CO2 glass Tube
|
|
|
|
|
|||||
|
Working Table
|
Honeycomb /KNIFE BLADE
|
|
|
|
|
|||||
|
Laser Power
|
60W/80W/100W
|
|
|
|
|
|||||
|
Cutting Speed
|
0-60 mm/s
|
|
|
|
|
|||||
|
Engraving Speed
|
0-600mm/s
|
|
|
|
|
|||||
|
Resolution
|
±0.05mm/1000DPI
|
|
|
|
|
|||||
|
Minimum Letter
|
English 1×1mm (Chinese Characters 2*2mm)
|
|
|
|
|
|||||
|
Support Fils
|
BMP,HPGL,PLT,DST and AI
|
|
|
|
|
|||||
|
Interface
|
USB2.0
|
|
|
|
|
|||||
|
Software
|
Rdworks v8 ( suitable for Ruida 6442s controller )
|
|
|
|
|
|||||
|
Computer system
|
Windows XP/win7/ win8/win10
|
|
|
|
|
|||||
|
Motor
|
Stepper Motor
|
|
|
|
|
|||||
|
Power Voltage
|
AC 110 or 220V±10%,50-60Hz
|
|
|
|
|
|||||
|
Power cable
|
European Type/China Type/America Type/UK Type
|
|
|
|
|
|||||
|
Working Environment
|
0-45℃(temperature) 5-95%(humidity)
|
|
|
|
|
|||||
|
Power consumption
|
<350W (Total)
|
|
|
|
|
|||||
|
Z-Axis Movement
|
ELECTRICAL UP DOWN
|
|
|
|
|
|||||
|
Position system
|
Red-light pointer
|
|
|
|
|
|||||
|
Cooling way
|
Water cooling and protection system
|
|
|
|
|
|||||
|
Machine Size
|
147*85*86cm
|
|
|
|
|
|||||
|
Gross Weight
|
120KG
|
|
|
|
|
|||||
|
Package
|
Standard plywood case for export
|
|
|
|
|
|||||
|
Warranty
|
All life free tech support, one year warranty, except consumables
|
|
|
|
|
|||||
|
Free accessories
|
Air Pump/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ /USB Cable/Power Cable
|
|
|
|
|
|||||
About US
Liaocheng Bofet laser technology co.,ltd are manufacture of laser machines with plenty of skilled workers for nearly 10 years .Our main products as follow: co2 laser engraving and cutting machine, fiber laser marking machine, RF laser marking machine, Fiber laser cutting machine ect ,
We can supply laser machines with quality and moderate price, We have professional producing and sales team ,own machine designer be good at machine customized ,the strict quality control ,testing issues before shipping .We realize that the quality control is the first priority for running our business .
As One growing laser machine manufacture BFT Laser obtain both home and broad market with its good quality and professional after service team.BFT Laser welcome customers from worldwide visit our company to get further info of us
Our service
Before-sale service:
Any technical questions will be answered as soon as possible.
Machine video or sample is available.
Any questions about our company will be treated.
After-sale service:
We provide 12 months warranty for the machine.
All spare parts for the machine can be bought with agent price.
Email/ Skype/ MSN/ Trade manager online to support.
Life-long technical support and free after-sale service.
Professional technical team and salesperson assists you with trouble shooting.Procedures via Internet and phone any time whenneeded.Free and professional training at our factory.Door-to-door service if necessary.
FAQ
1.Q: What customized services you provided?
A: BFT Laser as one manufacturer with its own designer can supply full OEM and ODM service.
2.Q: What payment method you accept?
A: T/T LC Alibaba assurance , paypal west union ,ect
3.Q: How long is the delivery time?
A: within 10-20 days for container quantity .
4.Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer technical supporting online and find out the problem after checking
5.Q;What is the warranty
A: Co2 laser machine whole machine for 1 years (except the consumption parts like lens, mirrors for 3 month) fiber laser markingmachine whole machines for 2 years
6. Q:.If there is some problems for some parts during warranty period, will your company repair or replace for me?
A;Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warrantytime. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including
the consumable parts and Man-made damage.
7Q”.Can I buy spare parts from your company if I have spare parts in the future?
A: Yes, please. Our company supply spare parts for all of our machine.
8 Q: How to guarantee the quality of your products?
A.1) Strict detection during production.
.2) Strict sampling inspection on products before shipment and intact product packaging ensured
Any technical questions will be answered as soon as possible.
Machine video or sample is available.
Any questions about our company will be treated.
After-sale service:
We provide 12 months warranty for the machine.
All spare parts for the machine can be bought with agent price.
Email/ Skype/ MSN/ Trade manager online to support.
Life-long technical support and free after-sale service.
Professional technical team and salesperson assists you with trouble shooting.Procedures via Internet and phone any time whenneeded.Free and professional training at our factory.Door-to-door service if necessary.
FAQ
1.Q: What customized services you provided?
A: BFT Laser as one manufacturer with its own designer can supply full OEM and ODM service.
2.Q: What payment method you accept?
A: T/T LC Alibaba assurance , paypal west union ,ect
3.Q: How long is the delivery time?
A: within 10-20 days for container quantity .
4.Q: I don’t know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer technical supporting online and find out the problem after checking
5.Q;What is the warranty
A: Co2 laser machine whole machine for 1 years (except the consumption parts like lens, mirrors for 3 month) fiber laser markingmachine whole machines for 2 years
6. Q:.If there is some problems for some parts during warranty period, will your company repair or replace for me?
A;Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warrantytime. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including
the consumable parts and Man-made damage.
7Q”.Can I buy spare parts from your company if I have spare parts in the future?
A: Yes, please. Our company supply spare parts for all of our machine.
8 Q: How to guarantee the quality of your products?
A.1) Strict detection during production.
.2) Strict sampling inspection on products before shipment and intact product packaging ensured
packing and delivery
All the machine will be packed with plastic film inside the plywood box
