Quick Details
-
Size:
-
Different As Each Model
-
Power:
-
10~40W
-
Productivity:
-
0.4m3/hr-35m3/hr
-
Weight (KG):
-
150 kg
-
Working Pressure:
-
0.2~0.6MPa
-
Power Supply:
-
220V/50Hz
-
Hardness Of Raw Water:
-
<6mmol/L
-
Output Water Hardness:
-
0.03mmol/L
-
Working Temperature:
-
5°C-50°C
-
Certification:
-
ISO9001 CE
-
Material:
-
Carbon Steel, Stainless Steel, PVC
-
Filter Media:
-
Resin and Salt
-
After Warranty Service:
-
Video Technical Support\Online Support
-
After-sales Service Provided:
-
Video Technical Support\Online Support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Beite
-
Weight:
-
Different As Each Model
-
Size:
-
Different As Each Model
-
Power:
-
10~40W
-
Productivity:
-
0.4m3/hr-35m3/hr
-
Weight (KG):
-
150 kg
-
Working Pressure:
-
0.2~0.6MPa
-
Power Supply:
-
220V/50Hz
-
Hardness Of Raw Water:
-
<6mmol/L
-
Output Water Hardness:
-
0.03mmol/L
-
Working Temperature:
-
5°C-50°C
-
Certification:
-
ISO9001 CE
-
Material:
-
Carbon Steel, Stainless Steel, PVC
-
Filter Media:
-
Resin and Salt
-
After Warranty Service:
-
Video Technical Support\Online Support
-
After-sales Service Provided:
-
Video Technical Support\Online Support
Video Description
Product Description

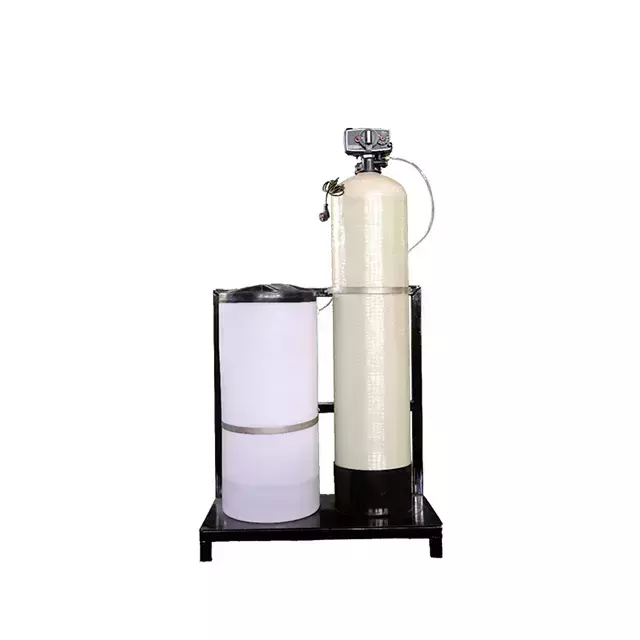

The automatic water softener is mainly composed of a multi-channel control valve, a controller, a resin tank (with a water distributor), and a salt tank. The multi-channel control valve is a valve with multiple channels in the same valve body. The controller is based on the set program. A command is sent to the multi-way valve, and the multi-way valve automatically completes the switching of multiple valves. In this way, the procedures of running, backwashing, regeneration, replacement and forward washing can be realized without setting a salt solution pump.
Product Parameters
|
Type
|
Water Production
m3/h
|
Inlet and outlet Pipe Diameter
mm
|
Exchange Tank
D1*H1mm
|
Resin Loading
L
|
Salt Bucket
D2*H2 L
|
|
BTN-0.5
|
0.4-0.6
|
20
|
200*1200
|
25
|
60
|
|
BTN-1.0
|
0.8-1.2
|
20
|
250*1400
|
50
|
60
|
|
BTN-2.0
|
1.8-2.2
|
25
|
300*1650
|
75
|
100
|
|
BTN-3.0
|
2.8-3.4
|
25
|
350*1650
|
100
|
200
|
|
BTN-4.0
|
3.8-4.5
|
25
|
500*1750
|
200
|
300
|
|
BTN-6.0
|
5.6-6.5
|
40
|
600*1850
|
325
|
500
|
|
BTN-8.0
|
7.5-8.5
|
40
|
600*1850
|
325
|
500
|
|
BTN-10
|
9.5-11
|
40
|
600*1850
|
550
|
500
|
|
BTN-15
|
14-18
|
50
|
900*2200
|
850
|
1000
|
|
BTN-22
|
20-25
|
65
|
1000*2400
|
1100
|
2000
|
|
BTN-30
|
25-35
|
65
|
1200*2400
|
1700
|
2000
|
