Quick Details
-
Brand Name:
-
Lixian
-
Model Number:
-
HZ-2001C
-
Certification:
-
ASTM/ISO/CE/ROHS
-
Salt Spray test chamber:
-
108L or customized
-
Brine temperature:
-
35±1 degree or 50±1 degree
-
Operation:
-
PLC touch screen or button operation
-
Spray volume:
-
1.0~2.0ml/80cm2/h
-
Inside box size(cm):
-
60*45*40/90*60*50/120*80*50
-
Testing room temperature:
-
Salt test (NSS ACSS)35±1 degree / Corrosion Test (CASS)50±1 degree
-
Air pressure:
-
85% above
-
Brine tank capacity:
-
15L / 25L / 40L
-
PH:
-
6.5~7.2; 3.0~3.2
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lixian
-
Model Number:
-
HZ-2001C
-
Certification:
-
ASTM/ISO/CE/ROHS
-
Salt Spray test chamber:
-
108L or customized
-
Brine temperature:
-
35±1 degree or 50±1 degree
-
Operation:
-
PLC touch screen or button operation
-
Spray volume:
-
1.0~2.0ml/80cm2/h
-
Inside box size(cm):
-
60*45*40/90*60*50/120*80*50
-
Testing room temperature:
-
Salt test (NSS ACSS)35±1 degree / Corrosion Test (CASS)50±1 degree
-
Air pressure:
-
85% above
-
Brine tank capacity:
-
15L / 25L / 40L
-
PH:
-
6.5~7.2; 3.0~3.2
Product Description

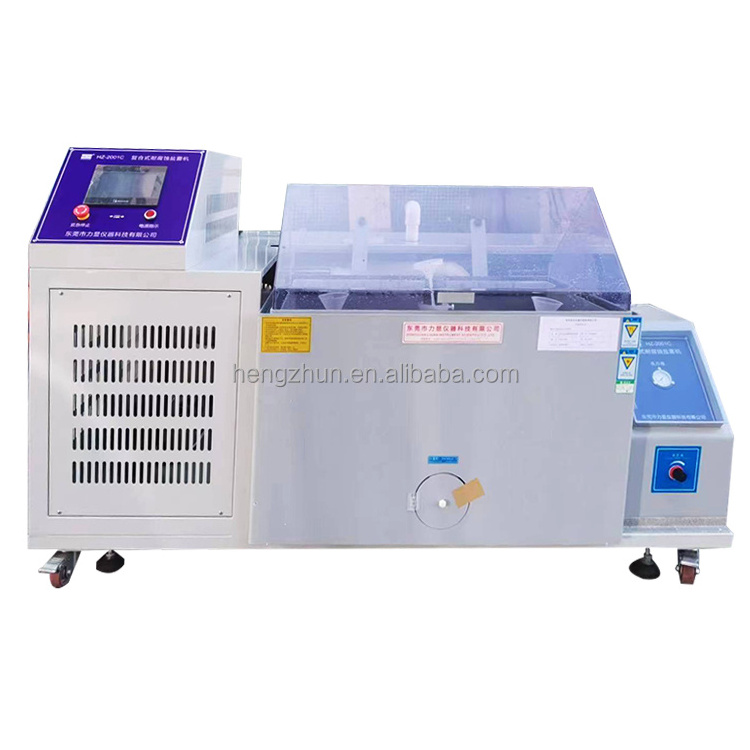

HZ-2001C Salt spray testing machine
Salt spray testing machine used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, etc.
Specification
|
Model Number
|
HZ-2001C
|
|
Power
|
Electronic
|
|
Certification
|
ASTM /ISO/ROHS
|
|
Capaciy
|
108L
|
|
Salt Spray test laboratory
|
economical
|
|
Salt Spray test oven
|
programmable
|
|
Testing room temperature
|
Salt test (NSS ACSS)35±1 degree / Corrosion Test (CASS)50±1 degree
|
|
Power
|
220V
|
|
Brine temperature
|
35±1 degree or 50±1 degree
|
|
Testing room relative humidity
|
85% above
|
|
Pressure barrel temperature
|
Salt test (NSS ACSS)47±1 degree / Corrosion Test (CASS)63±1 degree
|
|
Air pressure
|
1.00±0.01kgf/cm2
|
Corresponding standard :
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt spray test
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
