Quick Details
-
Brand Name:
-
phocos
-
Model Number:
-
CIS05 CIS10 CIS20, CIS05 CIS10 CIS20
-
Work Time (h):
-
50000
-
Max PV Power:
-
512W
-
Max PV Voltage:
-
24V
-
Certificate:
-
CE, RoHS, ISO
-
Warranty:
-
1 year
-
Brand:
-
Germany phocos
-
type:
-
CIS Series
-
Load output control mode:
-
single timer, Lighting
-
Self- consumption:
-
Max.6mA
-
Cut-off voltage:
-
11-12v 22-24v
-
Description:
-
solar charge controller waterproof ip68
-
Battery type::
-
lead acid ,GEL battery
-
Type of protection:
-
IP68 (1.5 m, 72 h)
-
Usage:
-
solar charge controller
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Lighting Controller
-
Place of Origin:
-
Germany
-
Brand Name:
-
phocos
-
Model Number:
-
CIS05 CIS10 CIS20, CIS05 CIS10 CIS20
-
Work Time (h):
-
50000
-
Max PV Power:
-
512W
-
Max PV Voltage:
-
24V
-
Certificate:
-
CE, RoHS, ISO
-
Warranty:
-
1 year
-
Brand:
-
Germany phocos
-
type:
-
CIS Series
-
Load output control mode:
-
single timer, Lighting
-
Self- consumption:
-
Max.6mA
-
Cut-off voltage:
-
11-12v 22-24v
-
Description:
-
solar charge controller waterproof ip68
-
Battery type::
-
lead acid ,GEL battery
-
Type of protection:
-
IP68 (1.5 m, 72 h)
-
Usage:
-
solar charge controller
phocos CIS05 CIS10 CIS20 solar regulator phocos pwm solar charge controller for 12v 24v solar street light
Sales Agent for Germany brand Phocos controller i
n china, Own the bottom price in the world.
1. P roduct overview
CIS controller is special designed for solar street light, provide perfect, multiple protection for solar street lamps’ electrical systems, and through good control strategy, effective extend the system’s power supply time
12V/24V CIS solar charge controller waterproof ip68 of solar street lighting controller
2. sturdy and durable aluminium alloy case, anti-corrosion
3. four stages charge control(main charge,powerful charge,equalizing charge,float charge)
4 Single and double street light output contro l flexible

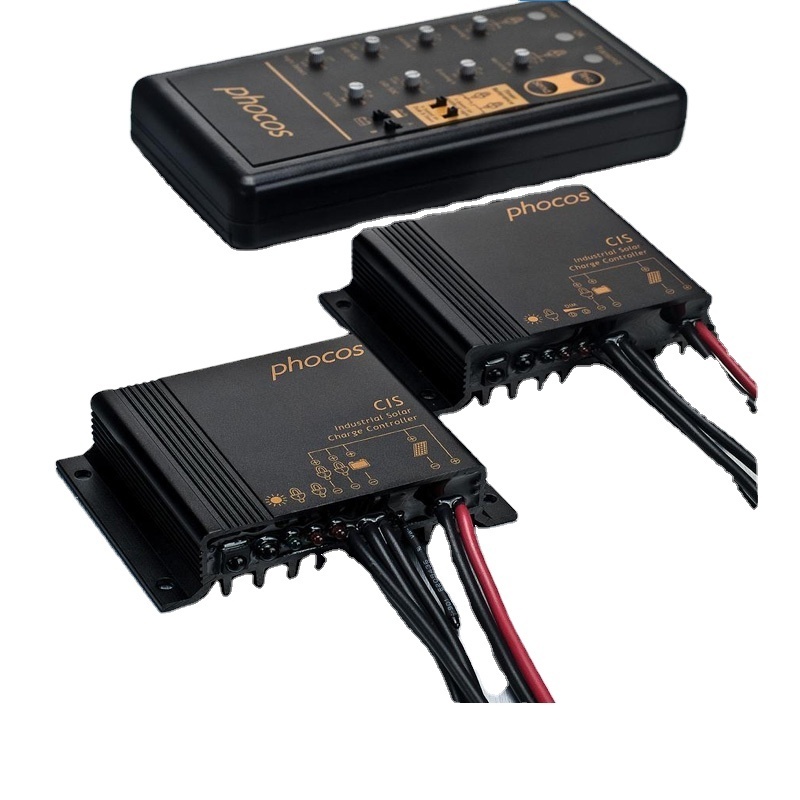

5. infrared remote controller (CU) set, simplicity and convenience operator
6. LED status indicate
7. at night all the time,morning and twilight double time light-operated/time control timing function
8. external temperature sensor, automatic temperature compensation
9. output power regulatory function, saving energy and protecting environment.
10. compact structure, small volume, easy to install
The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge thresholds, timers, etc. are made quickly and easily via infrared remote control accessory.
All devices are connected to the controller by supplied lead wires rather than wire terminals. This feature eliminates the risk of damage from external influences (corrosion, dust, water, bugs, chemicals, physical shock) where components make electrical contact to the controller.
The extremely compact aluminum housing even allows for mounting CIS inside street light poles.
CIS was developed in accordance with well-established Phocos standards incorporating the latest technology, highest-quality and best possible cost/performance.
2. Specification
phocos CIS05 CIS10 CIS20 solar regulator phocos pwm solar charge controller
|
Type |
CIS 05 |
CIS 10 |
CIS 20
|
|
System voltage |
12/24 V auto recognition |
||
|
Max. charge/load current |
5A |
10A |
15A |
|
Float charge |
13.8/27.6 V (25 °C) |
||
|
Main charge |
14.4/28.8 V (25°C), 30 min. (daily) |
||
|
Boost charge |
14.4/28.8 V (25 °C), 2 h |
||
|
activation: battery voltage < 12.3/24.6 V |
|||
|
Equalization |
14.8/29.6 V (25 °C), 2 Std |
||
|
activation: battery voltage < 12.1/ 24.2 V (at least every 30 days) |
|||
|
|
|
||
|
Cut-off voltage |
11- 12 V / 22- 24 V |
||
|
Reconnect level |
12.8/25.6 V |
||
|
Overvoltage protection |
15.5/31.0V |
||
|
Undervoltage protection |
10.5/21 V |
||
|
Max. panel voltage |
55 V
|
||
|
(Overvoltage protection by varistor) |
|||
|
Temperature compensation |
−25 mV/K at 12 V |
||
|
(Charge voltage) |
−50 mV/K at 24 V |
||
|
Max. self consumption |
5-8 mA at 12 V |
||
|
6 -10 mA at 24 V |
|||
|
Grounding |
positive grounding possible |
||
|
Ambient temperature |
−40 to +60 °C |
||
|
Max. height |
4,000 m above sea leve |
||
|
Battery type |
lead acid (GEL, AGM, flooded) |
||
|
Adjustment range: |
|
||
|
Evening/morning hours |
0 -15 h / 0 -14 h |
||
|
Night/day detection |
2.5 -10 V |
||
|
Wire length |
10 cm |
||
|
Wire cross section |
1.5 mm2 |
1.5 mm2 |
2.5 mm2 |
|
Type of protection |
IP68 (1.5 m, 72 h) |
||
|
Technical data dimming output |
CIS 05 |
CIS 10 |
CIS 20 |
|
Dimming value |
0-100% output power |
||
|
Dimming output voltage |
0 -5 V (max. 1 mA) |
||
3. PRODUCT FUNCTION
1. Over protection: could chose LVD mode or SOC mode
2. Overvoltage protection: 12V system 15.5V, 24V system 31V cut off the load
3. Low-voltage protection: 12V system 10.5V, 24V system 21V cut off the load
4. Over-current protection: When the actual current is 110% greater than the rated current, Delay of 120 s to cut off the load
When the actual current is 150% greater than the rated current, Delay of 10 s to cut off the load
When the actual current is 200% greater than the rated current, Delay of 3 s to cut off the load
5. Short-circuit protection: When the actual current is three times greater than the rated current, immediately cut off the load
6. Reverse polarity protection
7. Overheating protection
12V/24V CIS solar charge controller waterproof ip68 of solar street lighting controller
4. Package
1PCS/Carton box; 10PCS Carton box/BOX
5. Usage
solar street light controller phocos Germany brand
12V 24V phocos solar LED charge controller for solar street light use
solar street light control/ solar panel controller
* Output Dimming to save energy in lighting applications.
* Dual load to independently control two loads
* Output Dimming to save energy in lighting applications.
12V/24V CIS solar charge controller waterproof ip68 of solar street lighting controller
phocos solar controller/phocos charge controller
6. Quality
12V/24V CIS Dimming waterproof solar lighting controller with light&time control and led driver, solar street light controller
