Quick Details
-
Panel Efficiency:
-
23%
-
Solar cell:
-
125*125 mm USA Sunpower solar cells
-
Color:
-
Deep Blue
-
Backsheet:
-
Double-Sided TPT
-
EVA:
-
excellent anti-aging resistance
-
Junction Box:
-
General international standard IP65
-
Solar Cell efficiency:
-
21.3~23%
-
Keyword:
-
semi flexible solar panel
-
Product name:
-
flexible solar panel 100w
-
Size:
-
1060*540*2.5mm
-
Certificate:
-
CE , ROHS
-
Warranty:
-
2years
Quick Details
-
Brand Name:
-
Vglory or OEM
-
Model Number:
-
U-FSP100W
-
Place of Origin:
-
Guangdong, China
-
Panel Efficiency:
-
23%
-
Solar cell:
-
125*125 mm USA Sunpower solar cells
-
Color:
-
Deep Blue
-
Backsheet:
-
Double-Sided TPT
-
EVA:
-
excellent anti-aging resistance
-
Junction Box:
-
General international standard IP65
-
Solar Cell efficiency:
-
21.3~23%
-
Keyword:
-
semi flexible solar panel
-
Product name:
-
flexible solar panel 100w
-
Size:
-
1060*540*2.5mm
-
Certificate:
-
CE , ROHS
-
Warranty:
-
2years
super lightweight etfe thin film flexible solar panels 100w 120w 150w 200w
|

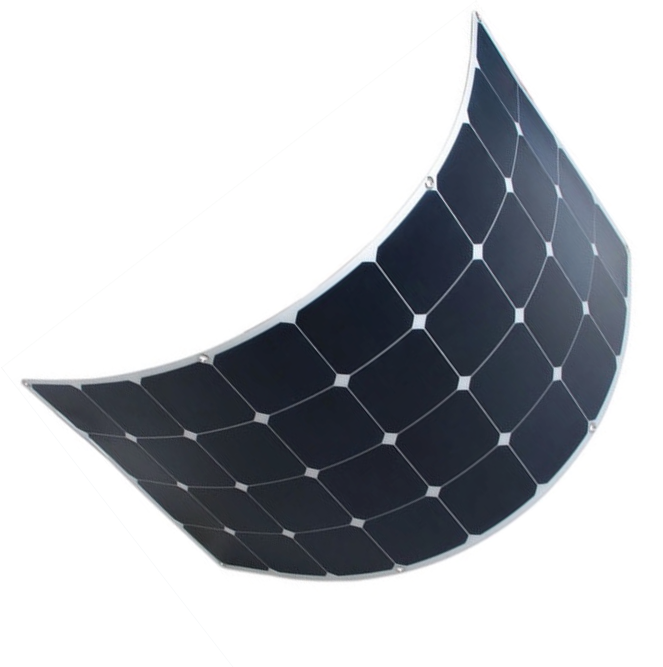

100W Sunpower Flexible solar panel |
|
|
Cell size(mm): |
125*125 |
|
Power tolerance: |
±3% |
|
Peak power(WP): |
100w |
|
Voltage at Pmax(Vmp): |
17.7 |
|
Current at Pmax(Imp): |
5.70 |
|
Open circuit voltage(Voc): |
21.7 |
|
Short circuit current(Isc): |
6.1 |
|
Max system voltage(VDC): |
1000V |
|
Operating Temperature: |
-40℃ to + 85℃ |
|
Cell Efficiency: |
21.3% |
|
Temperature Coefficient of Pmax: |
-0.48%/℃ |
|
Temperature Coefficient of voc: |
-0.34%/℃ |
|
Temperature Coefficient of ISC: |
0.015%/℃ |
|
Nominal Operating Cell Temperature: |
45+/-2℃ |
|
Data under standard testing conditions(STC) |
1000W/M²; 1.5AM |
|
Type of Connector: |
MC4 with cable length 900mm |
|
Dimension(mm): |
1050*540 |
Our USA Sunpower Flexible solar panel is made with this Unique Highest efficiency , most thin and lightest USA imported Sunpower solar cell , This kind special Back-contact cell been make with newest production equipment and cutting edge technology .
They are perfect power application for Golf car, electric car,travel tourism car, patrol car, tent, backpacks, caravan, campers, roof , Marine ,Yacht, ,Motorhome, Caravan, Campervan, RV, Lorry, Trailer, Etc .
brief some basic structure inf. of our High quality USA Semi-flexible solar panel : PET+ EVA +Sunpower solar cell+ EVA+TPT ; Enjoy our this Versatile Solar kit :
Advantages :
Compact size: G enerate 30% high power than others ;
Hardening process :
The surface with Hardening process prevent from scratched electronic appliances :
SO easy installed :
easy installed with clue , adhesive , screw , and also grommet at corner is easy for installation .
High wind-pressure :
The modules can withstand high wind-pressure, snow loads and extreme temperatures .
Super Light weight :
Light weight for easy carrying easy shipment easy installation, really 83% lighter than normal
Perfect wide use applications : Golf-cart , Yacht , boat , caravan , electric car , travel tourism car , patrol car , roof , camping, roof power generations , tent , portable bag , backpacks , portable generator kits ,lightweight roof solar system etc .
It is perfect for outdoor permanent use to provide free electricity charging 12V batteries to power various electronic devices, such as in a motorhome, caravan, camper, boat, or for solar lighting systems, off-grid and back up solar power systems, and complete household solar power systems.
