The MENGSHAN® 980
inner wrap
is a multilayer system used for the protection of steel pipelines.
MENGSHAN
® 1019,1027 Liquid Adhesives can be used as primers for this system. In addition to serving as primers, these liquid adhesives themselves represent an anticorrosion layer and provide a uniformly smooth contact surface to promote high adhesion of the coating system to the pipe. They are designed for machine or brush application and formulated with stress-corrosion cracking inhibitors.
- Product Details
- {{item.text}}
Quick Details
-
Backing:
-
Special blend of stabilized polyethylene
-
OEM:
-
acceptable
-
Adhesive:
-
Butyl rubber and Adhesion Promoting Resins
-
width:
-
2'' to 8''
-
length:
-
100ft to 800ft
-
Color:
-
black
-
thickness:
-
15mil,20mil,25mil,30mil
-
Brand:
-
MENGSHAN
-
standard or no-standard:
-
standard
-
Certification:
-
DVGW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MENGSHAN
-
Model Number:
-
MENGSHAN 980-20
-
Backing:
-
Special blend of stabilized polyethylene
-
OEM:
-
acceptable
-
Adhesive:
-
Butyl rubber and Adhesion Promoting Resins
-
width:
-
2'' to 8''
-
length:
-
100ft to 800ft
-
Color:
-
black
-
thickness:
-
15mil,20mil,25mil,30mil
-
Brand:
-
MENGSHAN
-
standard or no-standard:
-
standard
-
Certification:
-
DVGW
Product Description
MENGSHAN 980&955
inner wrap Coating System
The Anti-Corrosion layer
MENGSHAN
® 980
inner wrap
is engineered to assure a high bond to the primed surface with excellent conformability characteristics. The mechanical protection layer
MENGSHAN
® 955,achieves a complete bond to the
MENGSHAN
® 980 inner layer, providing maximum handling and in-service protection for the coating system. The adhesives in these and all
MENGSHAN
® tape systems contain proven anti-microbial additives. The
MENGSHAN
® 980/955 can also be used for ductile iron pipes, in this case the use of
MENGSHAN
® 1027 primer is recommended.
Features
-Resistant to soil stress
- Excellent adhesion to pipe and self
-Low cathodic protection
-Long-term in-ground performance
- Serve for low-high temperatures - Cold applied
-Uniform coating thickness
-Compatible with all pipe diameters and generic plant
coating systems
-Qualified ASTM D1000,AWWA C 214,EN 12068 standards
|
PRODUCT PROPERTIES
|
980-15
|
980-20
|
980-25
|
980-30
|
|
Total Thickness
|
15mil(0.381mm)
|
20mil(0.508mm)
|
25mil(0.635mm)
|
30mil(0.762mm)
|
|
Backing of PE film
|
9 mils(0.229 mm)
|
12mil(0.305mm)
|
13mil(0.330mm)
|
10mil(0.254mm)
|
|
Adhesive
|
6 mils(0.152 mm)
|
8mil(0.203mm)
|
12mil(0.305mm)
|
20mil(0.508mm)
|
|
Tensile Strength
|
40 N/cm
|
55 N/cm
|
62 N/cm
|
70 N/cm
|
|
Elongation
|
300%
|
330%
|
350%
|
400%
|
|
Peel Adhesion to Primed Steel
|
24.5 N/cm
|
25 N/cm
|
26.5 N/cm
|
30 N/cm
|
|
Water Vapor Transmission Rate
|
0.10g/m2
|
0.10g/m2
|
0.09g/m2
|
0.08g/m2
|
|
Water absorption ,At+23℃
|
0.10%
|
0.10%
|
0. 08%
|
0. 06%
|
|
Volume Resistivity
|
2.0 x 1015 ohm.cm
|
2.5x1015 ohm.cm
|
2.5x1015 ohm.cm
|
2.5x 1015ohm.cm
|
|
Dielectric Strength
|
30 kV
|
35 kV
|
42kv
|
43kv
|
Details Images

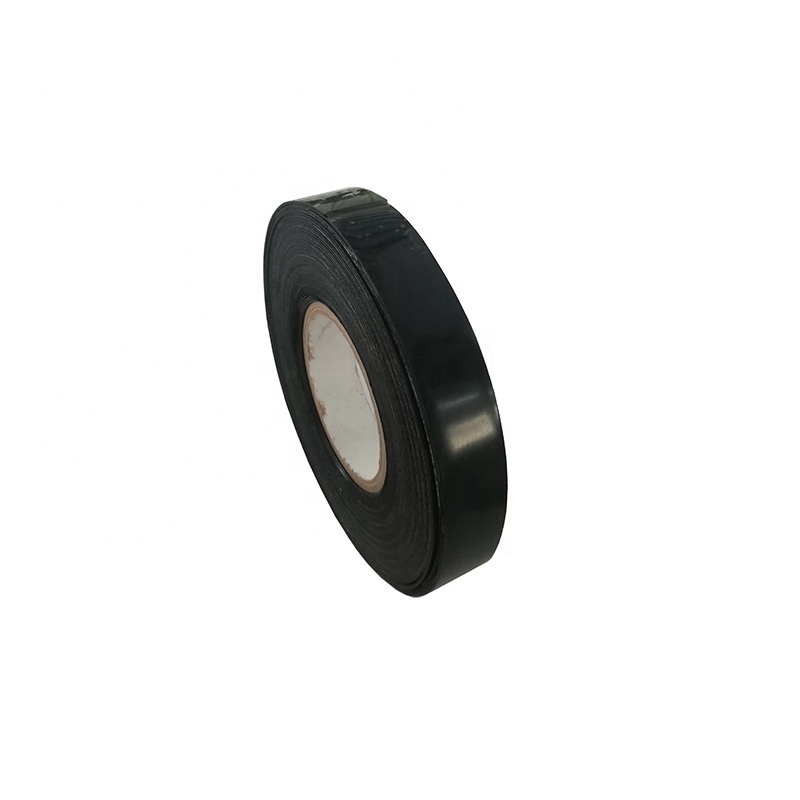

980 Inner wrap
980 Inner wrap
980 Inner wrap
Other Product
MENGSHAN Visco-elastic Tape
for Soil-to-air transitions, Field joints, High salt and water content,In-ditch applications,Pipeline Renovation Repair
About Us
Jining Qiangke Pipe Anticorrosion Materials CO.,Ltd
We are the most professional manufacturers of Coating Tapes in China for the Corrosion protection of pipelines and specialty applications .
A company supplying Polyethylene tape, Polypropylene geotextile tape , Visco-Elastic tape, 3-Ply tape Coating Systems to the corrosion industry within the oil, gas and water pipeline construction industry for both onshore and offshore applications
Approved Material Supplier of China National Petroleum Corporation (CNPC) and China Petroleum Chemical Corporation(SINOPEC),SGS .High-quality anti-corrosion systems providing anti-corrosion solutions for oil pipelines, natural gas, chemicals and water transmission and distribution pipelines, etc.
ISO 14001
ISO9001
ISO18001
MENGSHAN BRAND
CNPC CERTIFICATE
CCPIT CERTIFICATE
Testing instrument
Thickness gauge
For thickness of tape
Volume surface resistivity tester
For Volume Resistivity of tape
Electric spark detector
There is no leakage point in the tape coating
Steam tester
For Water Vapor Transmission Rate of tape
Baking machine
For Application Temperature of tape
Tension teste
For Elongation of tape
Export Display
Bangladesh
Indonesia
Iraq
