Quick Details
-
Lift Speed:
-
2.7-20m/min
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
40 kg
-
Product name:
-

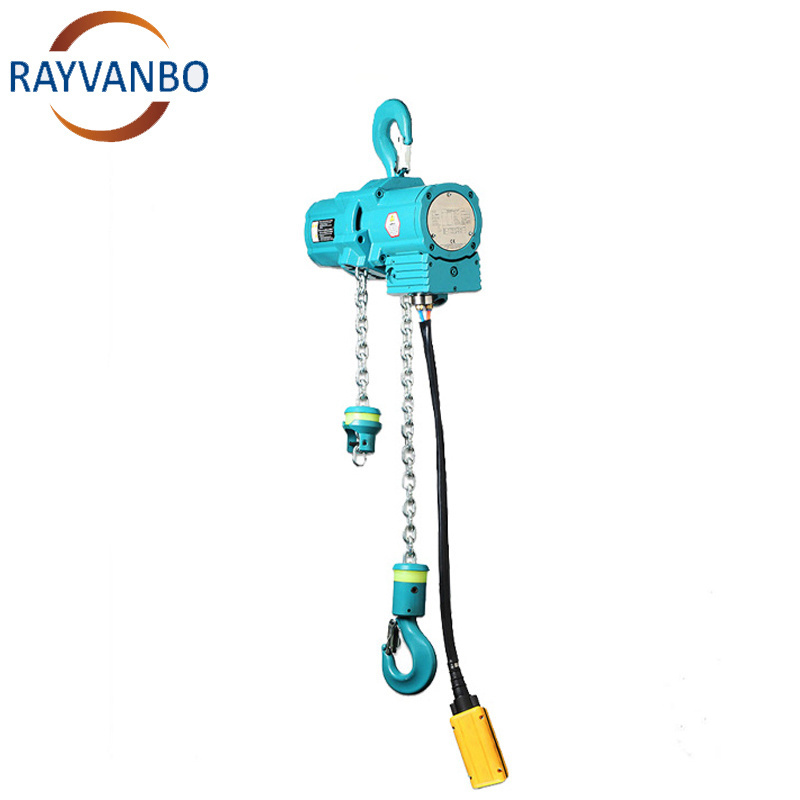

Air Hoist
-
Weight(kg):
-
40
-
Lifting speed:
-
2.7-20m/min
-
Empty lifting speed:
-
5-42m/min
-
Full load of descent:
-
5-38m/min
-
Chain size(mm):
-
7*21 9*21
-
Lifting height:
-
3m
-
Motor output:
-
0.6-2kw
-
Lifting capacity:
-
0.16-2t
-
Air pressure(bar):
-
4-6
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Rayvanbo
-
Lift Speed:
-
2.7-20m/min
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
40 kg
-
Product name:
-
Air Hoist
-
Weight(kg):
-
40
-
Lifting speed:
-
2.7-20m/min
-
Empty lifting speed:
-
5-42m/min
-
Full load of descent:
-
5-38m/min
-
Chain size(mm):
-
7*21 9*21
-
Lifting height:
-
3m
-
Motor output:
-
0.6-2kw
-
Lifting capacity:
-
0.16-2t
-
Air pressure(bar):
-
4-6
Product Description
Product Details
Product Advantages
Specification
|
Work level
|
M3
|
M3
|
M3
|
M3
|
M3
|
|
Mine safety certificate No.
|
MAJ150309
|
MAJ150305
|
MAJ150310
|
MAJ150307
|
MAJ150308
|
|
Capacity
|
8T
|
10T
|
12T
|
18T
|
20T
|
|
Air pressure
|
6Bar
|
6Bar
|
6Bar
|
6Bar
|
6Bar
|
|
Lifting height
|
3m
|
3m
|
3m
|
3m
|
3m
|
|
falls of chain
|
3
|
4
|
4
|
3
|
4
|
|
Lifting motor power
|
3.5KW
|
3.5KW
|
3.5KW
|
3.5KW
|
3.5KW
|
|
Full load Lifting speed
|
1.2m/min
|
1m/min
|
1m/min
|
0.9m/min
|
0.7m/min
|
|
Full loadlowering speed
|
3m/min
|
2m/min
|
2m/min
|
1.9m/min
|
1.6m/min
|
|
Lifting motor air consumption
|
5.5cbm/min
|
5.5cbm/min
|
5.5cbm/min
|
5.5cbm/min
|
5.5cbm/min
|
|
Lifting motorAir connection
|
Rc1/2
|
Rc3/4
|
Rc3/4
|
Rc3/4
|
Rc3/4
|
|
Supply hose insidediameter
|
25mm
|
25mm
|
25mm
|
25mm
|
25mm
|
|
Lifting chain size
|
13*36mm
|
13*36mm
|
13*36mm
|
13*45mm
|
13*45mm
|
|
Length of control hose
|
3m
|
3m
|
3m
|
3m
|
3m
|
|
Sound level
|
79dB
|
79dB
|
79dB
|
78dB
|
78dB
|
|
Traverse motor power
|
2*0.25KW
|
2*0.25KW
|
2*0.25KW
|
0.7KW
|
0.7KW
|
|
Traverse speed
|
10m/min
|
10m/min
|
10m/min
|
5m/min
|
5m/min
|
|
Traverse motor
air consumption |
2*0.6cbm/min
|
2*0.6cbm/min
|
2*0.6cbm/min
|
1.3cbm/min
|
1.3cbm/min
|
|
Traverse motor
air connection |
Rc1/4
|
Rc1/4
|
Rc1/4
|
Rc1/4
|
Rc1/4
|
|
Traverse motor
supply hose inside dia |
G3/4
|
G3/4
|
G3/4
|
G3/4
|
G3/4
|
|
Traverse motor
weight |
200kg
|
200kg
|
200kg
|
260kg
|
260kg
|
|
Total weight
|
358kg
|
358kg
|
388kg
|
688kg
|
688kg
|
Product Application
Packing & Delivery
Wooden box or as your requirement packaging
