Quick Details
-
Dimension(L*W*H):
-
9000x1225x1500mm
-
Application:
-
factory
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
7.5kw
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Pinliang
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
9000x1225x1500mm
-
Application:
-
factory
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
7.5kw
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support

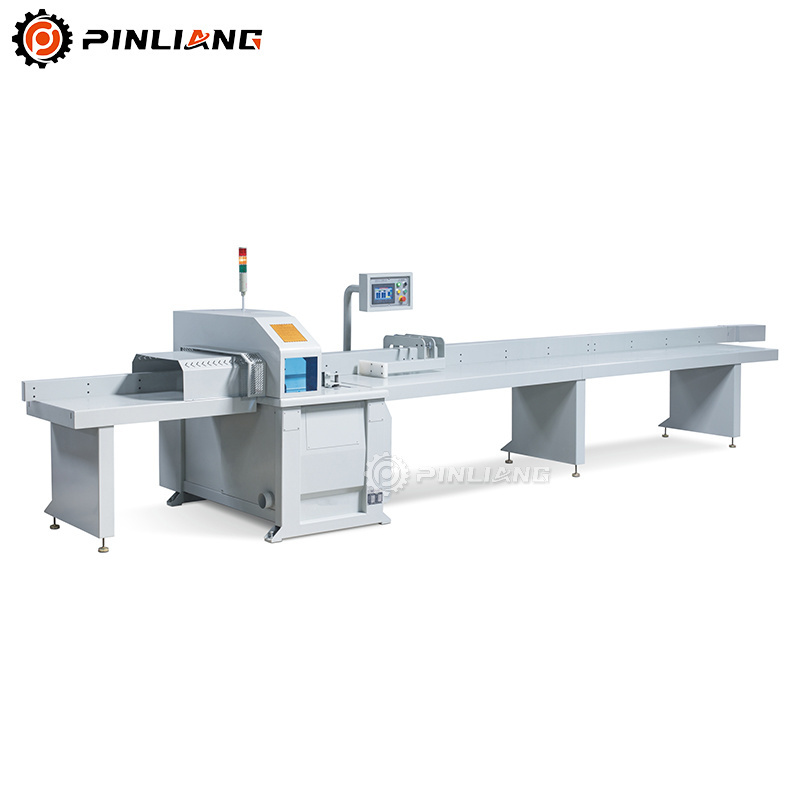

CNC timber cutting saw machine Pinliang automatic pneumatic cross cut saw machine
Parameter
|
Max. cut off size 1
|
Width 200mm, thickness 200mm
|
|
Max. cut off size 2
|
Width 550mm, thickness 60mm
|
|
Max. cut off length
|
2000/4000/6000mm (can be customized)
|
|
Saw blade size
|
650*30mm
|
|
Feeding speed
|
5-25m/min
|
|
Spindle speed
|
1850r/min
|
|
Servo motor power
|
750w
|
|
Saw shaft motor power
|
7.5kw
|
|
Overall size
|
7200*1500*1700mm
|
|
Cut off error
|
±1mm
|
Product details
