ZLP630 Galvanised Electric Hanging Scaffolding

ZLP630 Galvanised Electric Hanging Scaffolding

FOB Reference Price: Get Latest Price

≥1 Sets

US $1887

≥3 Sets

US $1720

≥7 Sets

US $1654

≥13 Sets

US $1597

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel

Design Style:: Contemporary

Type:: Work Platform

Place of Origin:: Shandong, China

Brand Name:: HUIYANG

Model Number:: ZLP630-HX

Rated Load:: 630kg

Working Cage:: 6m

Lifting Height:: 100m

Lifting Speed:: 9-11m/min

Certificate:: CE, CCC, ISO9001

Material:: Steel Q235

Voltage:: 220V/380V/415V

Surface:: Galvanised

Contact:: 008613176274341

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support, Free spare parts

Project Solution Capability:: Others

Application:: Hotel

Design Style:: Contemporary

Type:: Work Platform

Place of Origin:: Shandong, China

Brand Name:: HUIYANG

Model Number:: ZLP630-HX

Rated Load:: 630kg

Working Cage:: 6m

Lifting Height:: 100m

Lifting Speed:: 9-11m/min

Certificate:: CE, CCC, ISO9001

Material:: Steel Q235

Voltage:: 220V/380V/415V

Surface:: Galvanised

Contact:: 008613176274341

ZLP630 Parameters

Working Principle:

The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.

Usage and Application:

ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.

Above all, HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.

Miss Thea: WhatsApp 86-13176274341 https://www.instagram.com/tianfeng_liu/

The Parameters of ZLP series Suspended Platform
Type	ZLP500	ZLP630	ZLP800
1. Rated Load	500kg	630kg	800kg
2. Lifting speed	9.3m/min	9.3m/min	9.3m/min
3. Lifting height	100m	100m	100m
4. Hoist	LTD6.3	LTD6.3	LTD8.0
4.1 Voltage-3 Phase	380V(415V/220V)	380V(415V/220V)	380V(415V/220V)
4.2 Frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
4.3 Power	1.5kw x 2	1.5kw x 2	1.8kw x 2
5. Safety Lock	LSG20	LSG20	LSG30
6. Electric Cabinet Parts	Schneider or CHNT	Schneider or CHNT	Schneider or CHNT
7. Platform Sise (LxWxH)	(2.5+2.5)x0.69x1.42m	(2+2+2)x0.69x1.42m	(2.5+2.5+2.5)x0.69x1.42m
8. Steel Wire Rope	4pcs; 100m/pcs D=8.3mm; 4x31SW+FC	4pcs; 100m/pcs D=8.3mm; 4x31SW+FC	4pcs; 100m/pcs D=9.1mm; 4x31SW+FC
9. Electric Cable	(3x2.0+2x1.0mm2) 100m	(3x2.0+2x1.0mm2 ) 100m	(3x2.5+2x1.5mm2) 100m
10. Suspended Jibs	340kg	340kg	340kg
Working Cage Weight	410kg(Steel) 290kg(Aluminum)	480kg(Steel) 340kg(Aluminum)	530kg(Steel) 380kg(Aluminum)
Counter Weight	Cement; 750kg	Cement; 900kg	Cement; 1000kg
Qty of 20" Container	13 sets	13 sets	13 sets

ZLP630 Detail

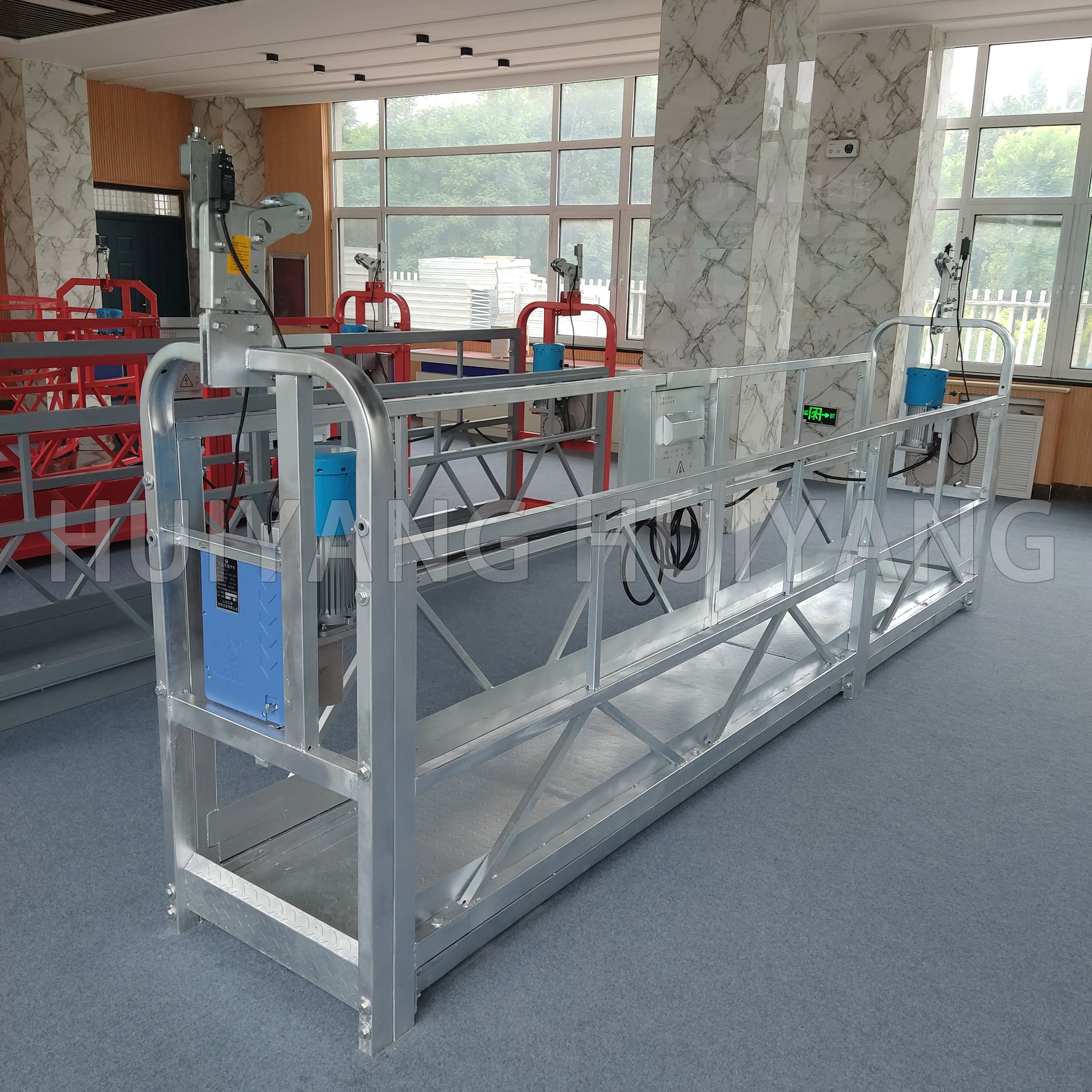

1. Working Cage: Material Q235 Steel with Hot-dipped Galvanised. ( Steel+Painting or Aluminum Alloy+Painting is available also)

1.1 Working Cage is the workplace at heights for the workers.

1.2 L=6m (2+2+2) or (1.5+2+2.5) or (1+2+3) W=0.69m; H=1.42m;
1.3 With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.

2. Suspension Mechanism: Surface with Hot-dipped Galvanized

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.

3. Components:
LTD6.3 Hoist, 1.5kw, 2 sets;
LSD20 Safety Lock, 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=8.3mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.0+2x1.0mm sq; Rubber;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.

Components 1

Name: Hoist Brand: HUIYANG

Model: LTD6.3 Quantity: 2 sets

Lifting Speed: 9.3±0.5m/min

Lifting Force: 6.3KN

Name : Motor Brand : Tianjin YONGHENG

Power: 1.5kw*2

Voltage: 3 Phase 380/220V 50/60Hz
Rotational Speed: 1420rpm Weight:48kgx2

Components 2

Name: Safety Lock Brand: HUIYANG
Model: LSG20 Quantity: 2 sets
Locking Rope Angle: 3°~8°

Allow impulsive force: 20KN
Steel Wire Diameter: 8.3mm Weight: 5kgx2

Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

Components 3

Name: Electrlic Control Cabinet

Brand: HUIYANG
Surface: Galvanised

With manual Switch

Components Brand: CHNT (Schneider need add $50)

On Electric Control Cabinet, there are 4 buttons and a 220V 50Hz outlet for necessary use.

( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )

Components 4

Name: Steel Rope Brand: Fasten

Quantity: 4pcs Length: 100m/pcs;

Diameter: 8.3mm Weight: 25kgx4

4x31SW+FC

Nylon Safety Rope 1Pcs=100m
Electric Cable : 1Pcs=100m, Rubber, (3x2.0+2x1.0mm2)
Counterweight : (Optional) Cement or Cast Iron

Certifications

Company Introduction

HUIYANG Company Introduction.

Shandong Huiyang Construction Equipment Co., Ltd,established in 2005,located at Dezhou City, is a professional and accurate technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.

Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.

Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.

No matter what structure needs, everything is easier with Huiyang!

Miss Thea: WhatsApp 86-13176274341 https://www.instagram.com/tianfeng_liu/

Our Service

Pre-Sales Service

* Factory Show.

* Consulting Support

* Fast Quotation and PI Feedback

* View our Factory.

* Sample testing support.

After-Sales Service

* Video Training: Installation Instructions.

* Engineer Online Service.

* Email Instruction.

All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

FAQ.

1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?

T/T or L/C at sight.
6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date.

We will send new parts to replace right away.
7. Can you make suspended platform with our brand?

Yes.
8. Delivery time?

According to order quantity, 10-20 working days will be finished after getting the deposit.

Packing & Delivery

Packaging
Size	3m³
Weight	940kg (without Counterweight)
Packaging Details	MOQ: 1set 1-5 sets packed in wooden case. 5-13 sets be nude inside the Container.

Packaging
Size	3m³
Weight	940kg (without Counterweight)
Packaging Details	MOQ: 1set 1-5 sets packed in wooden case. 5-13 sets be nude inside the Container.
