Quick Details
-
Model Number:
-
RCA5D2
-
Brand Name:
-
BEOT or without
-
Valve type:
-
pilot valves
-
Medium:
-
Clear Air
-
Item:
-
nice replacement for goyen RCA5D2 pilot valves
-
MOQ:
-
1pcs
-
Thread:
-
NPT, G, BSP, BSPP, BSPT or PT thread
-
Certification:
-
ISO & CE
Quick Details
-
Port Size:
-
1/4"
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
RCA5D2
-
Brand Name:
-
BEOT or without
-
Valve type:
-
pilot valves
-
Medium:
-
Clear Air
-
Item:
-
nice replacement for goyen RCA5D2 pilot valves
-
MOQ:
-
1pcs
-
Thread:
-
NPT, G, BSP, BSPP, BSPT or PT thread
-
Certification:
-
ISO & CE
Products Description

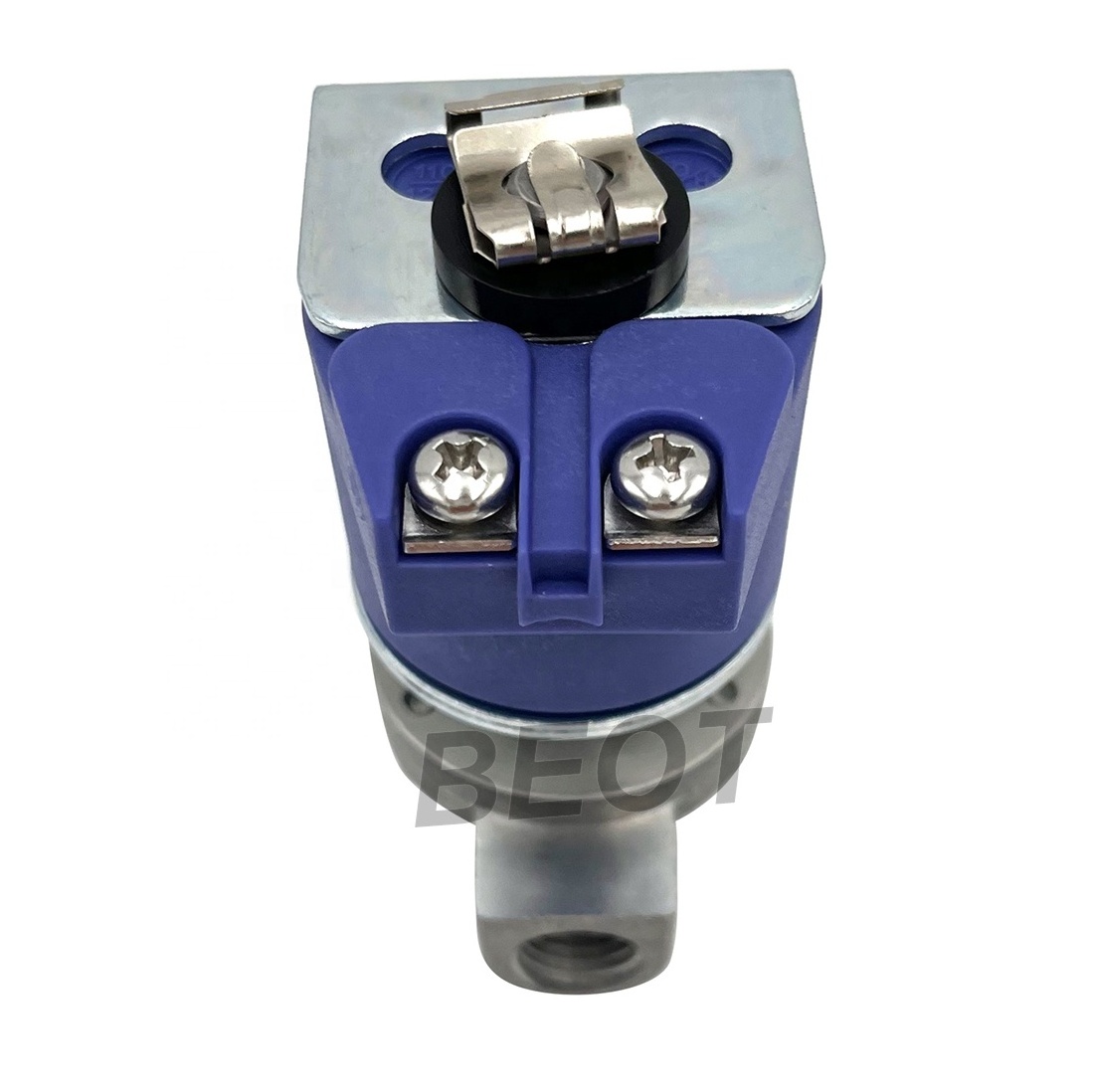

RCA5D2 / RCA5D type 1/4" pilot valves
RCA5D2 RCA5D type 1/4" Pilot solenoid valve
.
1/4" port size, can be NPT, G, BSP, BSPP, BSPT or PT thread, voltage normal is 120VAC, 220VAC 24VAC, & 24VDC.
The pilot valve orifice: 5 mm (3/16")
Flow Performance: .68 Cv/.58 kV
Suitable for :
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
|
Technical Data
|
|
|
|
Working pressure
|
0.15~0.8Mpa
|
|
|
Relatively humidity
|
<85%
|
|
|
Working medium
|
Clear Air
|
|
|
Voltage
|
AC110V /AC220V /AC24V /DC24V
|
|
|
Ambient Temperature
|
for -5~50°C
|
|
|
Seal material
|
NBR(Nitrile) or VITON (NBR for -10~70°C; VITON for -10~200°C)
|
|
|
Port Size
|
1/4"
|
|
|
Body material
|
die-cast aluminium
|
|
