Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
3kw
-
Weight:
-
50 kg
-
Dimension(L*W*H):
-
570*270*450mm
-
Final products:
-
20-200 Mesh
-
Application:
-
Food Flour Grinding Mill Machine
-
Advantage:
-
High Efficiency Working
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XL
-
Production Capacity:
-
20-50kg/h
-
Voltage:
-
220V/380V
-
Power:
-
3kw
-
Weight:
-
50 kg
-
Dimension(L*W*H):
-
570*270*450mm
-
Final products:
-
20-200 Mesh
-
Application:
-
Food Flour Grinding Mill Machine
-
Advantage:
-
High Efficiency Working

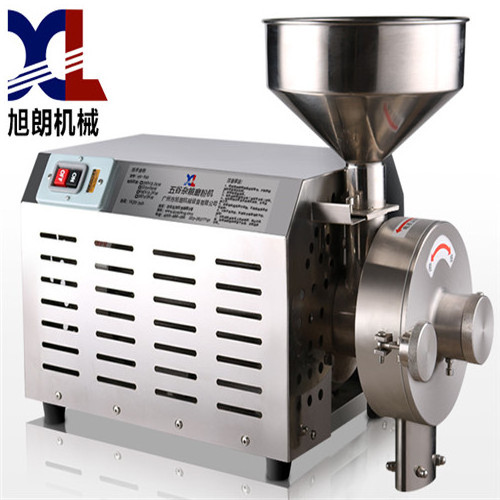

When the motor of milling machine works,both the connecting axis and grinding disc covering on the connecting shaft runs together.Until the milling material enters the powder grinding sleeve from the feeding hopper,between the auger of grinding disc and powder milling sleeve relatively runs.It will cause strong crushing force to make the feeding material mince into small particles.After the crushing particles is brought into the middle of two friction blades under the spiral motion of grinding auger.With the relative motion of milling teeth,the feeding material will be minced small powder particles in a short time, the powder pours out from the ditch of grinding blade and swings everywhere. Simultaneously,the finished powder flow out from the outlet under the motion of the scraping board fixed on the grinding disc.
This machine is also called small rice mill machine,wheat flour mill machine,poultry feed mill machine,flour mill milling machine,fish feed mill machine.Welcome to contact us to get more information if possible.
|
Specifications |
Model: HK-860 |
Material: Stainless Steel |
|
Voltage |
220V/380V |
220V/380V |
|
Power Supply |
2.2KW |
3KW |
|
Velocity of rotation |
1420r/min |
1420r/min |
|
Fineness of finished product |
20-200 mesh |
20-200 mesh |
|
Capacity |
20-40kg/h |
20-40kg/h |
|
Overall Dimension |
57 × 25 × 45cm |
57 × 27 × 45cm |
|
N.W |
50kg |
60kg |
