Quick Details
-
Brand Name:
-
I.C.T
-
Model Number:
-
S3020
-
Product name:
-
Automaticl Insertion Machine
-
Name:
-
THT Pick and Place Machine
-
Application:
-
SMT PCB Assembly Production Line
-
Usage:
-
SMD LED SMT
-
Feeder Type:
-
Radial
-
Keyword:
-
Insertion Machine
-
PCB Size:
-
50x50-45x450mm
-
Feeders:
-
20
-
Dimension(mm):
-
L1700xW1500xH1000
-
Power Supply:
-
220±10%,50/60HZ,2Kw
Quick Details
-
Weight (KG):
-
2100
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
I.C.T
-
Model Number:
-
S3020
-
Product name:
-
Automaticl Insertion Machine
-
Name:
-
THT Pick and Place Machine
-
Application:
-
SMT PCB Assembly Production Line
-
Usage:
-
SMD LED SMT
-
Feeder Type:
-
Radial
-
Keyword:
-
Insertion Machine
-
PCB Size:
-
50x50-45x450mm
-
Feeders:
-
20
-
Dimension(mm):
-
L1700xW1500xH1000
-
Power Supply:
-
220±10%,50/60HZ,2Kw
Products Description
Through Hole THT Pick and Placement Machine DIP Component Radial Automatic Terminal Plug In Axial SMT Terminal Insertion Machine
The s-3020 offers consistently high throughput regardless of component type, with single-, dual-, triple-, and quad-span insertion variants. Lead span capability up to 10mm virtually eliminates tedious manual assembly requirements to improve throughput, product quality and output per floor space, while reducing associated labor costs and time requirements to provide greater returns. The s-3020 delivers exceptional flexibility with over 100 available inputs on the expandable sequencer. An intuitive operator interface that is common with other Generation s-3020 equipment offers easy operation, diagnostics, data management and a graphical product editor.
18000 CPH
Highest reliability in the industry (1000 ppm)
Component replenishment without machine stoppage
Manual Load or Automatic PCB Load/Unload
Configurable sequencer (In-Line or Straight-Back)
Multiple clinch options
Component Verifier
Simple-to-use operator environment with graphical user interface
-Highest Throughput
• 18,000 CPH Spec Speed
-Strong Machine Flexibility
• Expandable from 20 inputs up to 100 inputs
• Inserts at 1 degree increments up to 360 degrees
• Inward clinch option to increase bottom side density
- Lowers Cost of Ownership
• Low Energy costs.
• Minimal preventative maintenance required.
- Easy to Use User Interface
• Easy operation, use Excel program and USB input.
• Off-line programming available
• Components available: Capacitors (electrolytic, ceramic, box, and film), transistors, diodes, LEDs, connectors, tact switches, coils, potentiometers, lamps, fuses, etc
Application:
Specifications
|

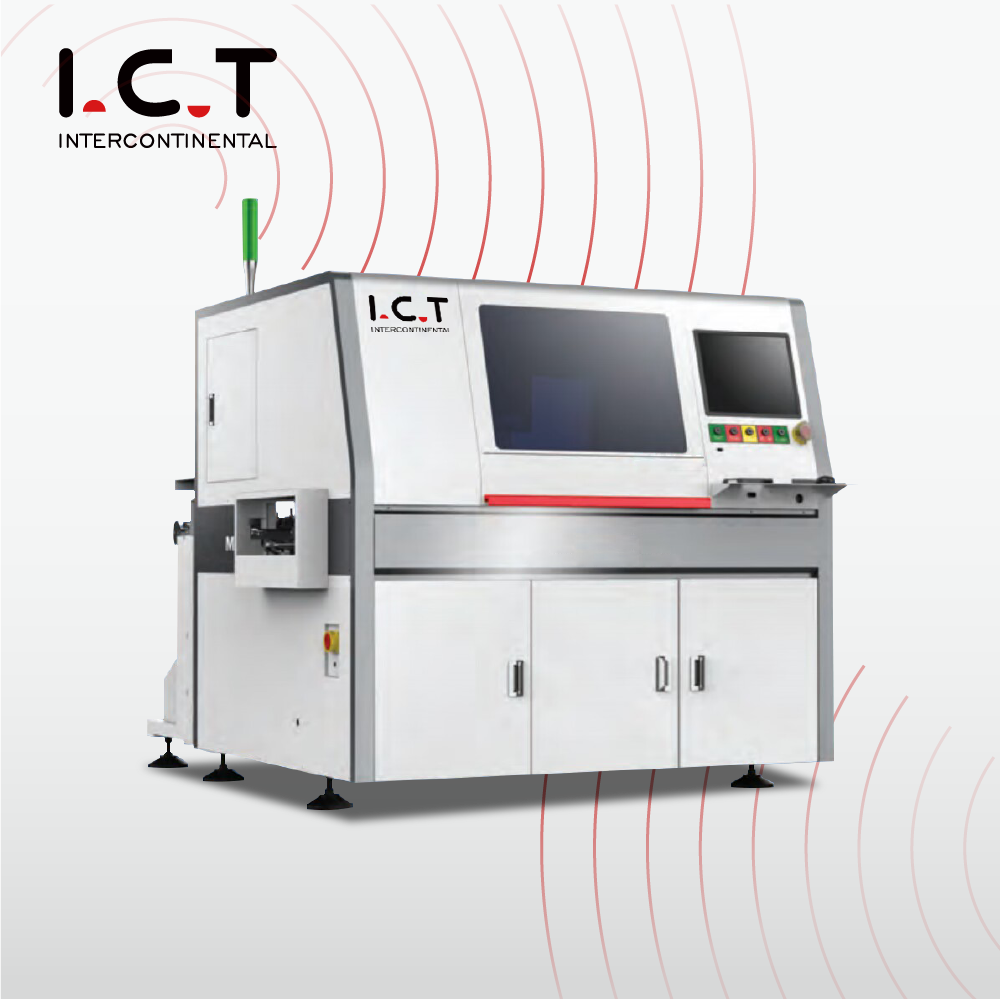

I.C.T Radial Insertion Machine S3020
|
|
|
|
Model
|
S3020
|
|
|
Actual Speed
|
18000 CPH
|
|
|
Feeders
|
20
|
|
|
Accurancy
|
±0.05mm
|
|
|
Component Height
|
20mm
|
|
|
PCB Size
|
50*50-450*450mm
|
|
|
Air Pressure
|
4.5~6Kg/cm2
|
|
|
Power Supply
|
AC:220±10%,50/60HZ,2Kw
|
|
|
Dimension(mm)
|
L1700*W1500*H1000
|
|
|
Weight
|
Approx:2100kg
|
|
Certifications
Packing & Delivery
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
