Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SREXACT
-
Model Number:
-
SVP592FA-BL
-
Certificate:
-
E346932
-
Rated current per contact:
-
20A
-
Available Cable OD.:
-
8.5~15mm
-
Body material:
-
PA 94V0 Blue color
-
Pin material:
-
Brass
-
Pin finish:
-
Silver plated
-
Contact resistance:
-
<2mΩ
-
Rated voltage:
-
AC 240V
-
Temperature range:
-
-30℃ to 85℃
-
For power:
-
Input
Quick Details
-
Type:
-
POWER CONNECTOR
-
Application:
-
Audio & Video
-
Gender:
-
Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SREXACT
-
Model Number:
-
SVP592FA-BL
-
Certificate:
-
E346932
-
Rated current per contact:
-
20A
-
Available Cable OD.:
-
8.5~15mm
-
Body material:
-
PA 94V0 Blue color
-
Pin material:
-
Brass
-
Pin finish:
-
Silver plated
-
Contact resistance:
-
<2mΩ
-
Rated voltage:
-
AC 240V
-
Temperature range:
-
-30℃ to 85℃
-
For power:
-
Input

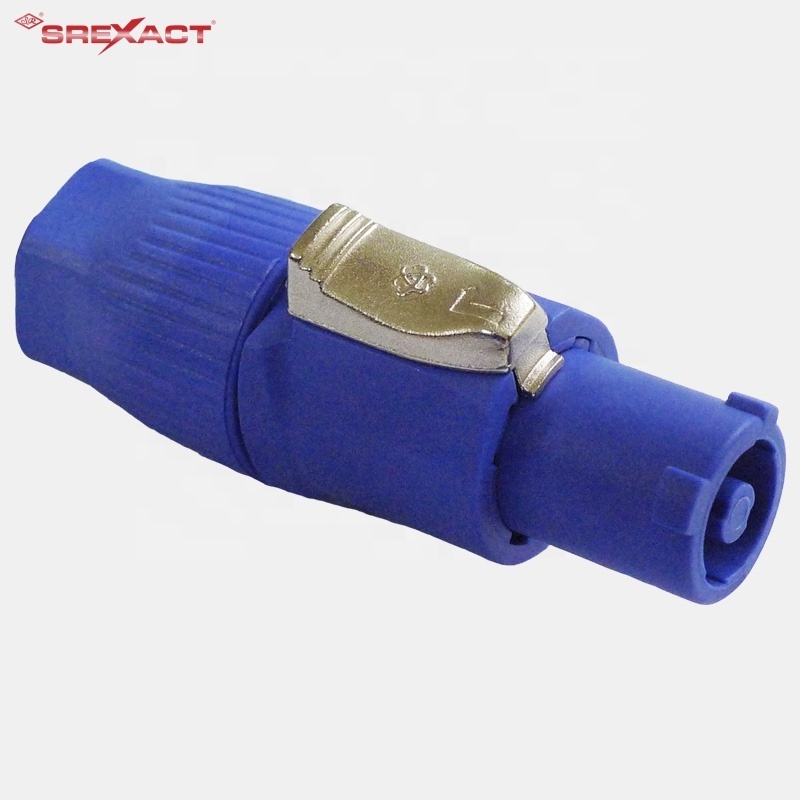

SVP592FA-BL: 2+1PIN IN LINE FEMALE POWER CONNECTOR FOR INPUT, 20A
Cable OD.: ∅8.5~
∅
11mm /
∅
12~
∅
15mm
UL Certificate No.:
E346932
Patent No.:
ZL 201030277859.X
ZL 201530098054.1
Advantage:
1. Brand-new improved waterproof / dustproof cable clamp fitting.
Replacement on gasket will meet cable size.
Different requirement, more environment protection and more practical.
2. Ergonomic designed latch, matched the front part of finger.
3. Brand-new and improved T-type thread, can be rotary tightened, not slipped.
Hexagonal rear cap can be tightened with one wrench.
4. UL 94V-HB flame retardant material, to safety requirements.
2+1pin female output Power connector
2+1pin socket male power connector
16A Female true1 Power connector
16A male true1 Power connector
Sun Rise Exact Industrial Co.
has won a good reputation from customers for years and obtained the certificate of ISO 9001 quality management system in 2002, while Ningbo Sun Rise Electronic Technology Co., Ltd. also has obtained certification of ISO 9001/2000 quality management system and 14001/2004 environmental management standard in 2006. Our products have received TUV,UL,and etc. certification.
From getting orders, purchasing materials, manufacturing to delivering products, Ningbo Sun Rise Electronic Technology Co., Ltd. insists on "customer service and total quality" to sustain our product standards, and complies with the agreement and standard issued by World Environment-protection
Organization to assure all products RoHS compliant.
To sum up, we would hold on to our management principles "Honesty, Quality, Service, Efficiency and Innovation" all the time!
