Quick Details
-
Model Number:
-
400w
-
Certification:
-
ce/iec
-
Output Voltage:
-
12v 24v
-
rotor diameter:
-
52cm
-
Material:
-
FRB
-
Wind turbine type:
-
vertical axis wind turbine
-
Blades number:
-
2 pcs
-
Blades rotor diameter:
-
0.9m-2m
-
Wind turbine capacity:
-
400w
-
Rotation direction:
-
C.W
-
Hub:
-
vertical type
-
Color:
-
white, orange, yellow,blue, green
-
Rated working voltage:
-
12v/24v
Quick Details
-
Rated Power:
-
400w
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENRYD
-
Model Number:
-
400w
-
Certification:
-
ce/iec
-
Output Voltage:
-
12v 24v
-
rotor diameter:
-
52cm
-
Material:
-
FRB
-
Wind turbine type:
-
vertical axis wind turbine
-
Blades number:
-
2 pcs
-
Blades rotor diameter:
-
0.9m-2m
-
Wind turbine capacity:
-
400w
-
Rotation direction:
-
C.W
-
Hub:
-
vertical type
-
Color:
-
white, orange, yellow,blue, green
-
Rated working voltage:
-
12v/24v

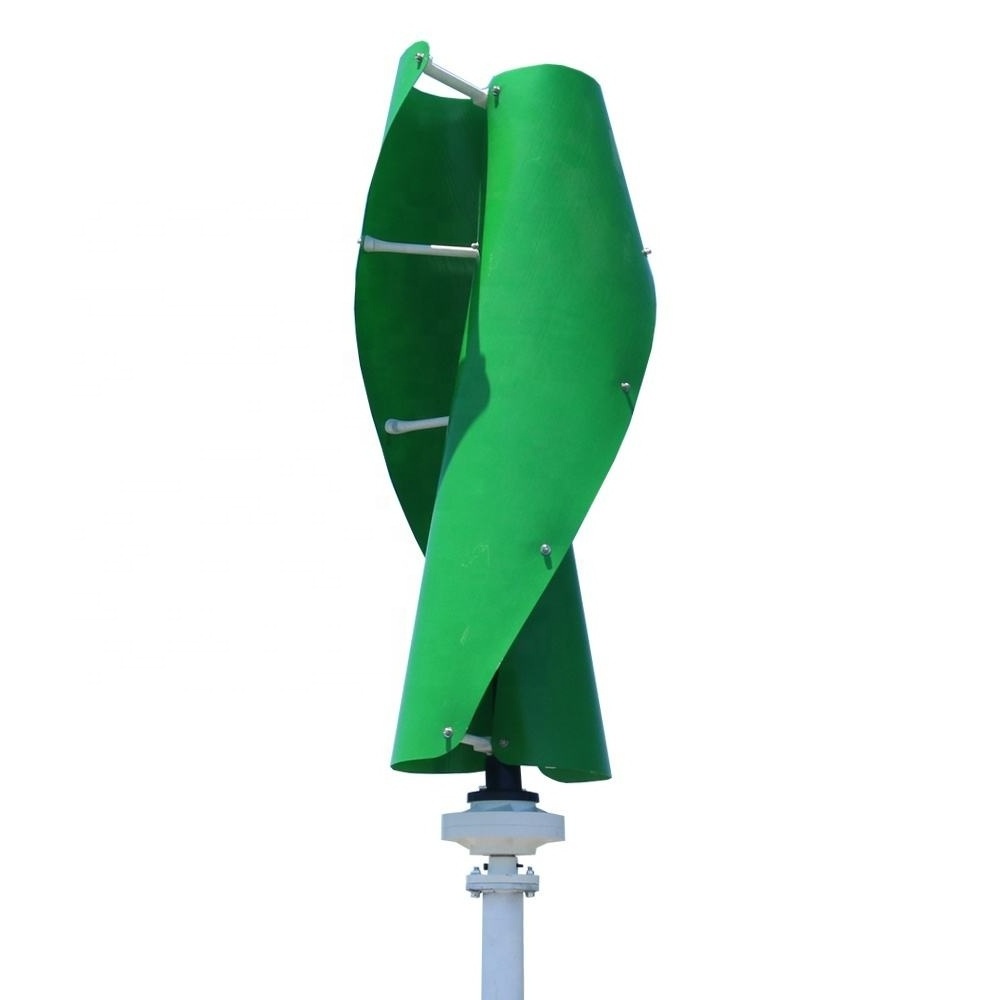

vertical axis wind turbine 200w 400w 600w 1kw
1. High twist sprial vertical axis wind turbine
Orange color, green color, white color,
|
item |
200w |
400w |
600w |
1000w |
|
Started wind speed (m/s) |
1.3 m/s |
1.3 m/s |
<2.5m/s |
<2.5m/s |
|
Cut-in wind speed (m/s) |
2.3 m/s |
2.3 m/s |
3.5 m/s |
3.5 m/s |
|
Rated Wind speed (m/s) |
12 m/s |
12 m/s |
10 m/s |
10 m/s |
|
Rated voltage(DC) |
12/24V |
12/24V |
24V/48V |
24V/48V |
|
Rated power(W) |
200W |
400W |
600W |
1000W |
|
Max power(W) |
250W |
450W |
650W |
1100W |
|
RoRotor Diameter of Blades(m) |
0.52 |
0.52 |
0.52 |
0.8 |
|
Blades Height(m) |
1.05(no generator) |
1.3(no generator) |
1.5(no generator) |
2(no generator) |
|
|
1.17 (include generator and Flange) |
1.5 (include generator and Flange) |
1.8(include generator and Flange) |
2.2(include generator and Flange) |
|
Safe wind speed (m/s) |
Max wind speed:≤40m/s,The instantaneous max wind speed≤45m/s |
|||
|
Blades quantity |
2 |
|||
|
Blade material |
glass/basalt |
|||
|
Generator |
Three phase permanent magnet suspension motor |
|||
|
Control System |
Electromagnet |
|||
|
Mount Height(m) |
7~12m (9m) |
|||
|
Generator protection grade |
IP54 |
|||
|
Work environment temperature |
VAWT -25~+45℃ |
|||
|
|
controller -10~+45℃ |
|||
|
|
Inverter 0~+40℃ |
|||
|
Work environment humidity |
VAWT ≤90%, |
|||
|
|
Controller and inverter≤80% |
|||
|
Altitude: |
≤4500m |
|||
|
Product assembly weight (Kg) |
<24Kg |
<24Kg |
<40Kg |
<70Kg |
|
Overspeed protection |
Electromagnetic brake |
|||
|
Overload protection |
Electromagnetic brake and the unloading unit |
|||
For more technical details, pls contact with us!
www.huayaturbine.com
CARTON
The sample can be delivery via express.
Bulk order can be Delivery by sea. FOB/C&F, CIF
Provide professional wind turbine technical support;
Provide on/off grid system design, wind solar hybrid system design service.
Completely system provider and designer;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawing;
Provide OEM service, customized service.
Support paypal /west union payment, TT payment;
