Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FUTAO-LP
-
Model Number:
-
LED-J158
-
Beam Angle(°):
-
60
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
220V
-
Lamp Luminous Flux(lm):
-
60000
-
Working Temperature(℃):
-
-40 - 50
-
Product Name:
-
Street Lighting Pole
-
Installation Height:
-
3 - 15M
-
Material:
-
Hot Rolled Steel Q235, Q345, Q420, Q460, GR50, GR65, SS400, etc.
-
Shape:
-
Polygonal / Conical / Tubular
-
Surface Treatment:
-
Hot Dip Galvanized / Powder Coated / Spray Painting
-
Welding Standard:
-
AWS D1.1
-
Galvanization Standard:
-
ASTM A123 / EN ISO 1461
-
Color:
-
RAL Color Standard
Quick Details
-
Color Temperature(CCT):
-
2700K (Soft Warm White)
-
Warranty(Year):
-
3
-
Lighting solutions service:
-
Lighting and circuitry design, auto CAD layout
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FUTAO-LP
-
Model Number:
-
LED-J158
-
Beam Angle(°):
-
60
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
220V
-
Lamp Luminous Flux(lm):
-
60000
-
Working Temperature(℃):
-
-40 - 50
-
Product Name:
-
Street Lighting Pole
-
Installation Height:
-
3 - 15M
-
Material:
-
Hot Rolled Steel Q235, Q345, Q420, Q460, GR50, GR65, SS400, etc.
-
Shape:
-
Polygonal / Conical / Tubular
-
Surface Treatment:
-
Hot Dip Galvanized / Powder Coated / Spray Painting
-
Welding Standard:
-
AWS D1.1
-
Galvanization Standard:
-
ASTM A123 / EN ISO 1461
-
Color:
-
RAL Color Standard

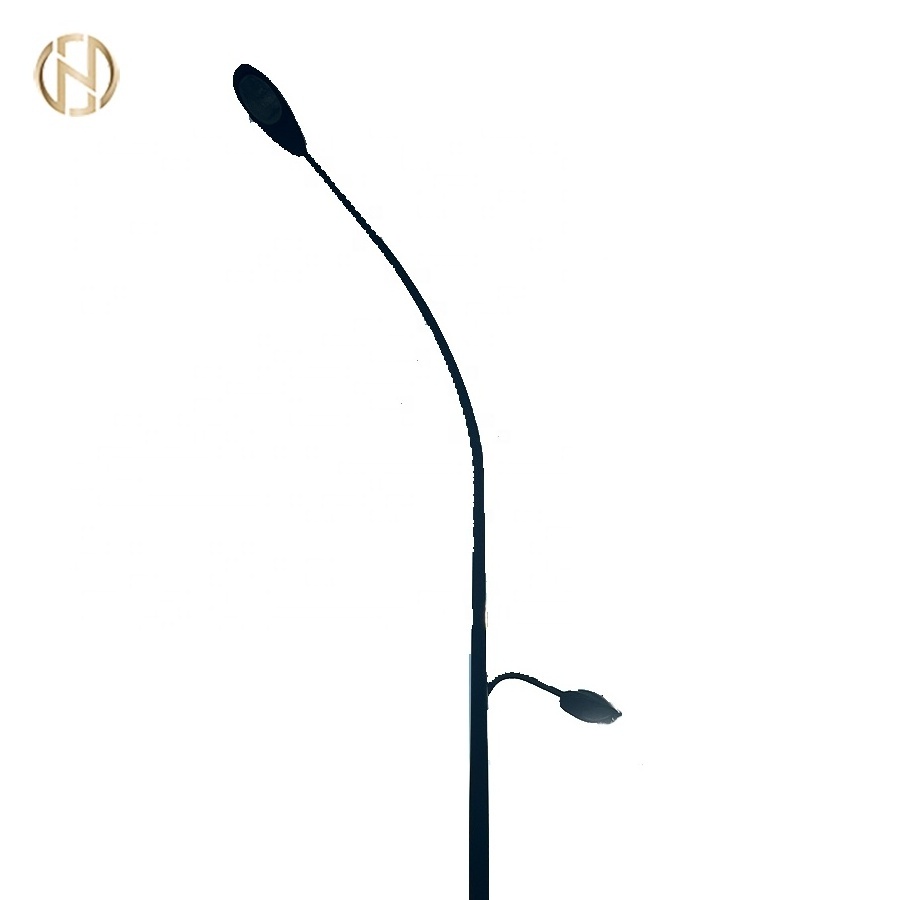

Street Lighting Pole
- OEM&ODM
- easy for installion
- concise design lighting pole
- high cost performance lighting pole
- Material :SS400, Q235,Q345,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
- (Other Material is Available on Request)
- ·Hot Dip Galvanized (≥86um)
- ·Any Color Polyester Powder Coated (≥100 um)
- ·Taper Conical , Octagonal, Polygon Section
- ·With demounted bracket design,easy loaded,install,and maintenance
- ·Theftproof slide lock
-
·Category: Garden lighting,Street lighting pole, light mast,street light mast
Height
From 5 m to 16m
Suit for
Airport ,seaport,plaza,stadium ,square,highway,street way etc
Shape
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material
Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,
ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Lamp power
200 W- 2000 W (HPS/MH)
220V (+-10%) /50Hz
Torlance of the dimenstion
+- 2%
Optical assembly of lighting fixture
IP 65
Electroshock resistant protective grade
Grade one
The casing anti-corrosion performance
Class two
Working atmosphere of lighting fixture
-35 °C~+45 °C
Surface treatment
Hot dip galvanized Following ASTM A 123, color polyester power or
any other standard by client required.
Joint of Poles
Insert mode,innerflange mode,face to face joint mode
Design of pole
Against earthquake of 8 grade
Wind Speed
160 Km/Hour
Minimum yield strength
355 mpa
Minimum ultimate tensile strength
490 mpa
Max ultimate tensile strength
620 mpa
Standard
ISO 9001
Length of per section
Within 14m once forming without slip joint
Welding
We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness
1 mm to 30 mm
Production Process
Rew material test → Cuttingj →Molding or bending →Welidng
(longitudinal )→Dimension verify →Flange welding → Hole drilling
→Calibration → Deburr→Galvanization or powder coating , painting
→Recalibration →Thread →Packages
