Quick Details
-
Power:
-
33.7kW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rhinoceros/ XINIU
-
Maximum Digging Height:
-
6888mm
-
Maximum Digging Depth:
-
3320mm
-
Max Digging Radius:
-
6538mm
-
Rated Speed:
-
28km/h(Max.)
-
Marketing Type:
-
Hot Product
-
Product name:
-
5 tonne excavator
-
Overall dimensions(mm):
-
6066x2070x2880 mm
-
Engine type:
-
YANMARengine 4TNV94L
-
Swing motor/travel motor:
-
EATON
-
Swing speed:
-
11rpm
-
Pump type:
-
variable pump and gear pump
-
hydraulic system:
-
Rexroth Load Sensing System
-
Max. grade ability:
-
30°
-
Fuel tank capacity:
-
150L
-
Hydraulic tank capacity:
-
150L
-
Certification:
-
CE ISO
Quick Details
-
Operating Weight:
-
6230KG
-
Bucket capacity:
-
0.3cbm
-
Engine Brand:
-
YANMARengine
-
Power:
-
33.7kW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rhinoceros/ XINIU
-
Maximum Digging Height:
-
6888mm
-
Maximum Digging Depth:
-
3320mm
-
Max Digging Radius:
-
6538mm
-
Rated Speed:
-
28km/h(Max.)
-
Marketing Type:
-
Hot Product
-
Product name:
-
5 tonne excavator
-
Overall dimensions(mm):
-
6066x2070x2880 mm
-
Engine type:
-
YANMARengine 4TNV94L
-
Swing motor/travel motor:
-
EATON
-
Swing speed:
-
11rpm
-
Pump type:
-
variable pump and gear pump
-
hydraulic system:
-
Rexroth Load Sensing System
-
Max. grade ability:
-
30°
-
Fuel tank capacity:
-
150L
-
Hydraulic tank capacity:
-
150L
-
Certification:
-
CE ISO
Product Description

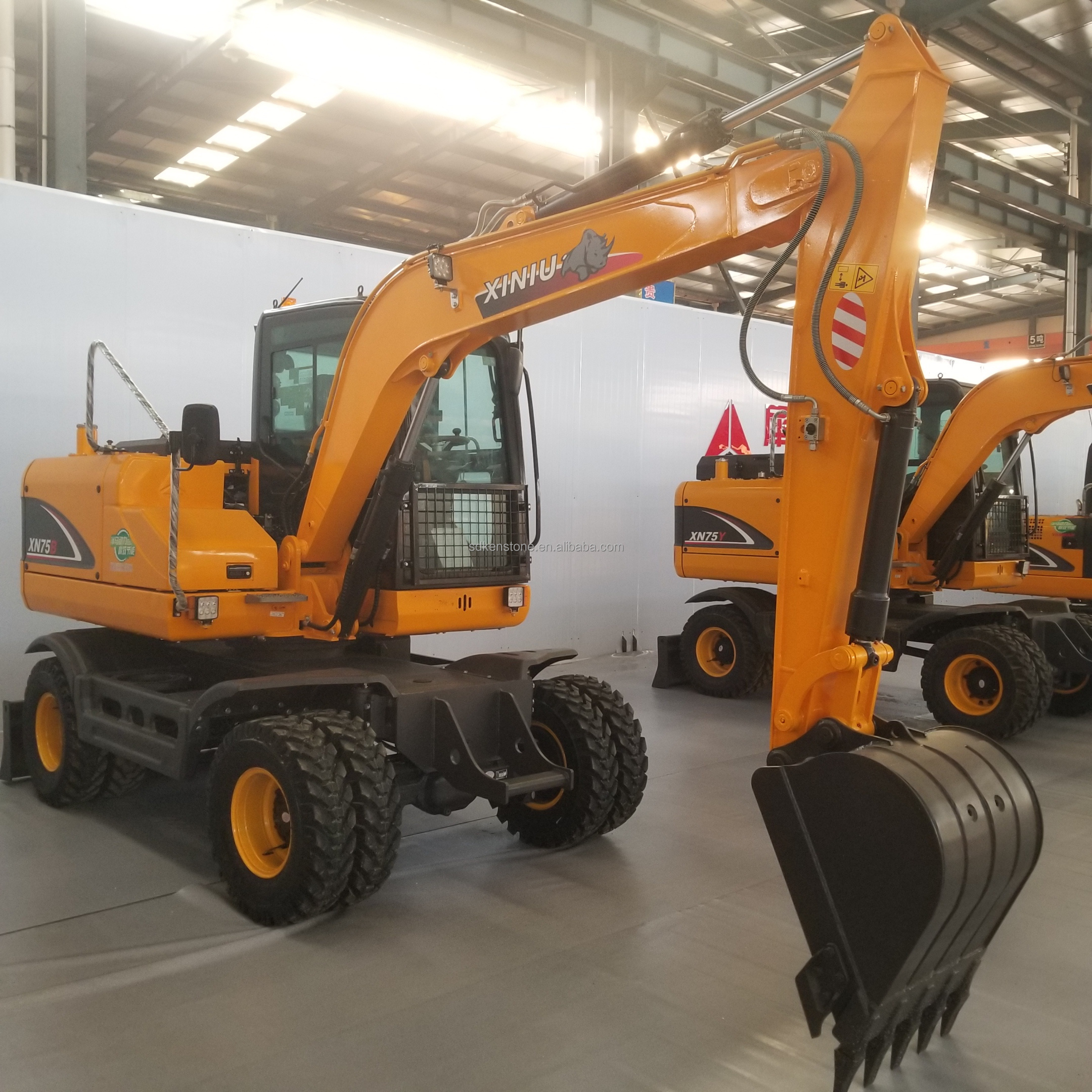

XN75B Rhinoceros 6 ton Wheel Excavator 6230kg 5 tonne excavator
1. Adopting world famous brand YANMAR engine, with strong driving force, low noise, low oil consumption, and
more reliable.
2. Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guarantee
the good quality and work performance. Low energy consumption, fast response speed, precision control, small
impact, can keep strong mining capacity and excellent operation efficiency.
3. Using high performance radiator, unobstructed air flow, fast flow speed, good hear dissipation effect, stable
working temperature, and long service life.
4. The welding of machine main structures use automatic welding robot, key parts welding flaw detection to
ensure all parts in high strength, high quality, and to prolong the service life of the machine.
5. Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.
Specification
|
SPECIFICATION
|
|
|
||
|
Operating Weight
|
6230kg 5tonne excavator
|
|
||
|
Bucket capacity
|
0.3m³
|
|
||
|
Engine Model
|
Yanmr 4TNV94L
|
|
||
|
Displacement
|
3.054L
|
|
||
|
Rated power / Speed
|
33.7kw/2100rpm
|
|
||
|
Maximum torque
|
193.2-210.6N.m/1600rpm
|
|
||
|
Max. travel speed
|
28km/h
|
|
||
|
Swing speed
|
11rpm
|
|
||
|
Max. Grade ability
|
30°
|
|
||
|
Pump type
|
Variable pump x2 + Gear pump x2
|
|
||
|
Pump Pressure P1 P2
|
24Mpa
|
|
||
|
Pump Flow rate P1 P2
|
60.5x2L/min
|
|
||
|
Hydraulic Tank Capacity
|
150L
|
|
||
|
Fuel tank capacity
|
150L
|
|
||
|
Engine Fuel tank capacity
|
12L
|
|
||
Details Images
New upgrade cabin, beautiful out-looking, cabin ergonomic design, front gear institutions, adjustable suspension seats, air conditioner, open field of vision, operating more comfortable.
Imported international brand pump/main valve, quick moving, compound movement harmoniously, high reliability, long service time.
The overall box-type structure chassis, with reinforced front and rear driven axles, reinforcement gearbox, reinforcement up and down box, more load carry capacity.
Front and rear driven axles with hub reduction, more passing ability, suitable for complex road, more driving power, suitable for climbing.
Parataxis radiator, full steel mesh back door, increase ventilation, improving the cooling efficiency, the back lights hidden inside the counterweight completely, avoiding the collision at the complex conditions working.
Recommend Products
Our company
Certifications
FAQ
What is the machIne advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container ?
A: 2 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container ?
A: 2 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
