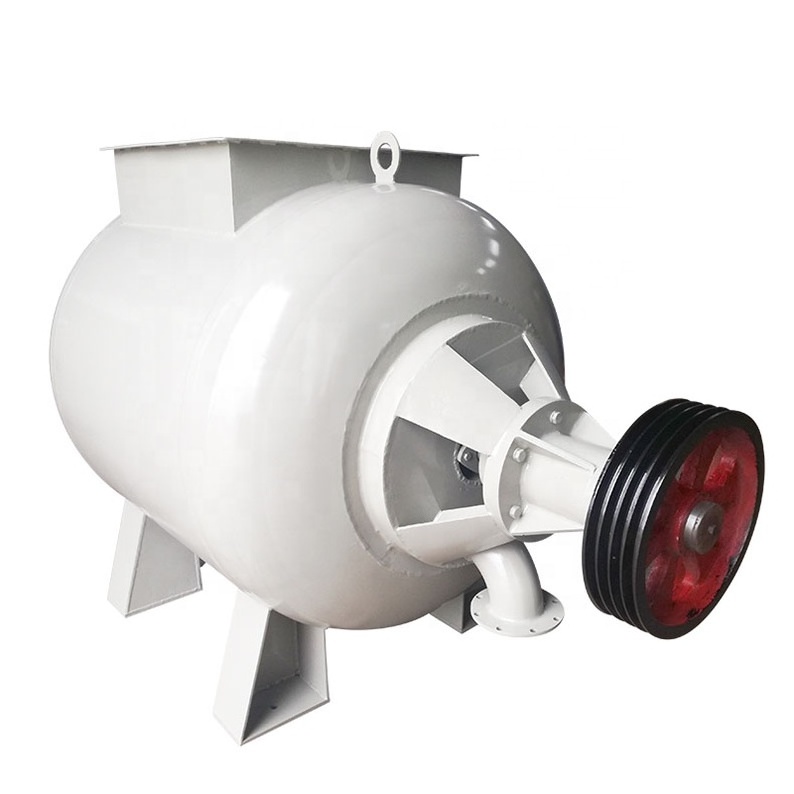

The tank is made by welded steel or stainless steel ,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet."D" type hydropulper has changed the way of flow ,make the material contact more quickly with the rotor ,and reduce bearting time greatly,and improve production capacity in the condition of without increasing the power and volume .
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380/220V, 380V/50Hz
-
Power:
-
22KW
-
Weight:
-
850 kg
-
Product name:
-
recycled waste paper bagasse pulp molding machinery
-
Type:
-
pulping equipment
-
Function:
-
to break the waste paper,carton box and wood pulp
-
Volume:
-
1-25m3 of volume as your require
-
Body of equipment:
-
SUS ,cast iron
-
Drive way:
-
AC frequency conversion speed
-
Bearing:
-
NSK ,FAG ,INA available
-
Certification:
-
ISO9001
Quick Details
-
Production Capacity:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NH
-
Voltage:
-
380/220V, 380V/50Hz
-
Power:
-
22KW
-
Weight:
-
850 kg
-
Product name:
-
recycled waste paper bagasse pulp molding machinery
-
Type:
-
pulping equipment
-
Function:
-
to break the waste paper,carton box and wood pulp
-
Volume:
-
1-25m3 of volume as your require
-
Body of equipment:
-
SUS ,cast iron
-
Drive way:
-
AC frequency conversion speed
-
Bearing:
-
NSK ,FAG ,INA available
-
Certification:
-
ISO9001
Paper pulp making machine recycled waste paper bagasse pulp molding
|
Advantage :
2. Short pulping time ;
3. Easy operation and maintenance ;
4. Continuous, intermittent discharge ;
5. Only dissociation of the slurry without cutting ;
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Parameter
|
Model
|
NHD0
|
NHD1
|
NHD2
|
NHD3
|
NHD5
|
NHD8
|
NHD10
|
NHD15
|
|||||||
|
Volume (m³）
|
0.5
|
1
|
2
|
3
|
5
|
8
|
10
|
15
|
|||||||
|
Inner diameter of the tank (mm)
|
D1000
|
D1200
|
D1600
|
D1800
|
D2400
|
D2500
|
D2700
|
D3500
|
|||||||
|
Capacity (t/d)
|
3-5
|
6-10
|
12-16
|
18-26
|
26-34
|
45-60
|
60-80
|
80-100
|
|||||||
|
Rotor diameter (mm)
|
D360
|
D450
|
D500
|
D540
|
D700
|
D800
|
D1000
|
D1250
|
|||||||
|
Rotor speed (r/min)
|
700
|
650
|
490
|
480
|
450
|
336
|
320
|
320
|
|||||||
|
Slurry tube diameter (mm)
|
D80
|
D100
|
D125
|
D150
|
D200
|
D250
|
D250
|
D325
|
|||||||
|
Inlet pipe diameter
(mm)
|
D50
|
D50
|
D65
|
D60
|
D80
|
D80
|
D80
|
D100
|
|||||||
|
Concentration（%）
|
2.5-4.5
|
|
|
|
|
|
|
|
|||||||
|
Motor (kw)
|
4/11
|
4/22
|
4/37
|
6/45
|
6/55
|
6/75
|
9/90
|
6/160
|
|||||||
Applications
Product Structure
Paper pulp making machine recycled waste paper bagasse pulp molding machinery for egg tray and toilet paper
, which improves the work efficiency, and it can be used for pulping waste paper & wet strength paper. D Type Hydropulper is mainly used to crushing pulp board, wastepaper, drinking, and pulp purification. Through dissociating, it can maximum make the paper's fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity's shape and strength.
Product Detail
Tank
Rotor
Stainless steel Rotor and outflow pulp tray locate above the bottom of the tank ,forming a low pressure area around the outflow pulp tray,to reduce the contact between impurities and cutter or sieve plate ,and prolong the service life of the cutter and seive plate .
Cutter blade
The design of cutter blade between cutter and sieve plate prevents the twining of waste materials like wire and weaving,and reduce running current.
Sieve plate
Sieve plate used for screening paper pulp.
Belt wheel
A complete set of European standard belt wheel,can shorten maintenance time,improve work efficiency ,reduce operating costs.
