Quick Details
-
Power:
-
85Kw
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Maximum Digging Height:
-
8930mm
-
Maximum Digging Depth:
-
4750mm
-
Machine Weight:
-
15000 kg
-
Max Digging Radius:
-
8000mm
-
Rated Speed:
-
28km/h
-
Item:
-

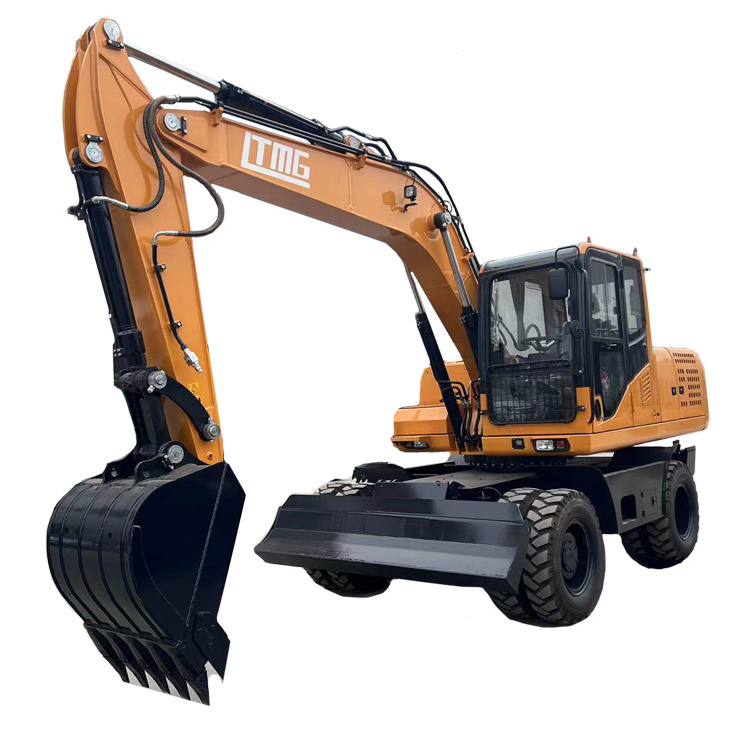

wheel Excavator
-
Engine:
-
Yuchai engine
-
Rated power:
-
85kw
-
Weight:
-
15 ton
-
Max.digging depth:
-
4750mm
-
Max.digging radius:
-
8000mm
-
Max.digging height:
-
8930mm
-
Max.dimping height:
-
6520mm
-
bucket:
-
0.6m3
-
Gradeability:
-
25°
Quick Details
-
Operating Weight:
-
7000kg, 8000kg, 13500kg, 15000kg
-
Bucket capacity:
-
0.6m3
-
Engine Brand:
-
Japanese
-
Power:
-
85Kw
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Maximum Digging Height:
-
8930mm
-
Maximum Digging Depth:
-
4750mm
-
Machine Weight:
-
15000 kg
-
Max Digging Radius:
-
8000mm
-
Rated Speed:
-
28km/h
-
Item:
-
wheel Excavator
-
Engine:
-
Yuchai engine
-
Rated power:
-
85kw
-
Weight:
-
15 ton
-
Max.digging depth:
-
4750mm
-
Max.digging radius:
-
8000mm
-
Max.digging height:
-
8930mm
-
Max.dimping height:
-
6520mm
-
bucket:
-
0.6m3
-
Gradeability:
-
25°
Advantages
FEATURE
◆Adopt advanced constant power variable plunger pump.
◆Adopt wet multi-disc brakes, with buffer control, smooth operation and braking.
◆Engineering cylinders, America Parker sealing ring, comes with a buffer device.
◆16MM steel plates were used and each bushing was quenched and tempered.
STANDARD CONFIGURATION
Yuchai engine / Plot multiplexer /High quality motor / Engineering cylinder, built-in America Parker seall Adjustable dozer/ Steel crawler Air conditioner / Adjustable driver's seat /Standard bucket/ Hydraulic lock /Cab/ Escape hammer/ Portable fire extinguisher/Audio
OPTIONAL CONFIGURATION
Hammer / Ripper / Log grapple / Raker /Auger drilll Large bucket/ Mud Bucket / Air Conditioning
APPLICATION
Applicable to toilet upgrading,engineering forcible entry,excavate barren hills,small earthwork, municipal projects, break concrete,dredging river and other working environment.
◆Adopt advanced constant power variable plunger pump.
◆Adopt wet multi-disc brakes, with buffer control, smooth operation and braking.
◆Engineering cylinders, America Parker sealing ring, comes with a buffer device.
◆16MM steel plates were used and each bushing was quenched and tempered.
STANDARD CONFIGURATION
Yuchai engine / Plot multiplexer /High quality motor / Engineering cylinder, built-in America Parker seall Adjustable dozer/ Steel crawler Air conditioner / Adjustable driver's seat /Standard bucket/ Hydraulic lock /Cab/ Escape hammer/ Portable fire extinguisher/Audio
OPTIONAL CONFIGURATION
Hammer / Ripper / Log grapple / Raker /Auger drilll Large bucket/ Mud Bucket / Air Conditioning
APPLICATION
Applicable to toilet upgrading,engineering forcible entry,excavate barren hills,small earthwork, municipal projects, break concrete,dredging river and other working environment.
|
Specifications
|
|
|
||
|
Bucket Capacity
|
(m³)
|
0.6
|
||
|
Swing Speed
|
(rmp)
|
0-12
|
||
|
Gradeablity
|
(°)
|
25
|
||
|
Max.Bucket Digging Force
|
(KN)
|
91
|
||
|
Max.Arm Digging Force
|
(KN)
|
55
|
||
|
Engine Model
|
|
Yuchai
|
||
|
Power/revolution speed
|
(KW)
|
92
|
||
|
Tire Model
|
|
9.00-20
|
||
|
System Pressure
|
(MPa)
|
32
|
||
|
Machine size
|
|
|
||
|
Dimension Length*Width*Height
|
(mm)
|
6770x2550x3370
|
||
|
Cabin Height
|
(mm)
|
3100
|
||
|
Axle Base
|
(mm)
|
2600
|
||
|
Wheel(track)Distance
|
(mm)
|
1944
|
||
|
Minimum ground clearance
|
(mm)
|
350
|
||
|
Tail Swing Radius
|
(mm)
|
2420
|
||
OEM/ODM
Optional Attachment
Shipping Plan
Factory Introduction
Certificate
Hot Products
Customer Feedback
Customer Sharing
Customer Reviews
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
