Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
China
-
Brand Name:
-
APEX
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1500
-
Applicable Industries:
-
Manufacturing Plant,Home Use,Construction works
-
Product name:
-
Wood routers
-
Brand:
-
APEX
-
Function:
-
carving, drilling, cutting
-
Model:
-
1325, 1530,6090,2040,2030,1212
-
Certification:
-
CE
-
Processing material:
-
wood, acrylic, aluminum etc.
-
Axis:
-
3 axis, 4axis,5 axis
-
Keyword:
-
Wood routers
-
Port:
-
Qingdao
-
Payment:
-
T/T,L/C
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
China
-
Brand Name:
-
APEX
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1500
-
Applicable Industries:
-
Manufacturing Plant,Home Use,Construction works
-
Product name:
-
Wood routers
-
Brand:
-
APEX
-
Function:
-
carving, drilling, cutting
-
Model:
-
1325, 1530,6090,2040,2030,1212
-
Certification:
-
CE
-
Processing material:
-
wood, acrylic, aluminum etc.
-
Axis:
-
3 axis, 4axis,5 axis
-
Keyword:
-
Wood routers
-
Port:
-
Qingdao
-
Payment:
-
T/T,L/C

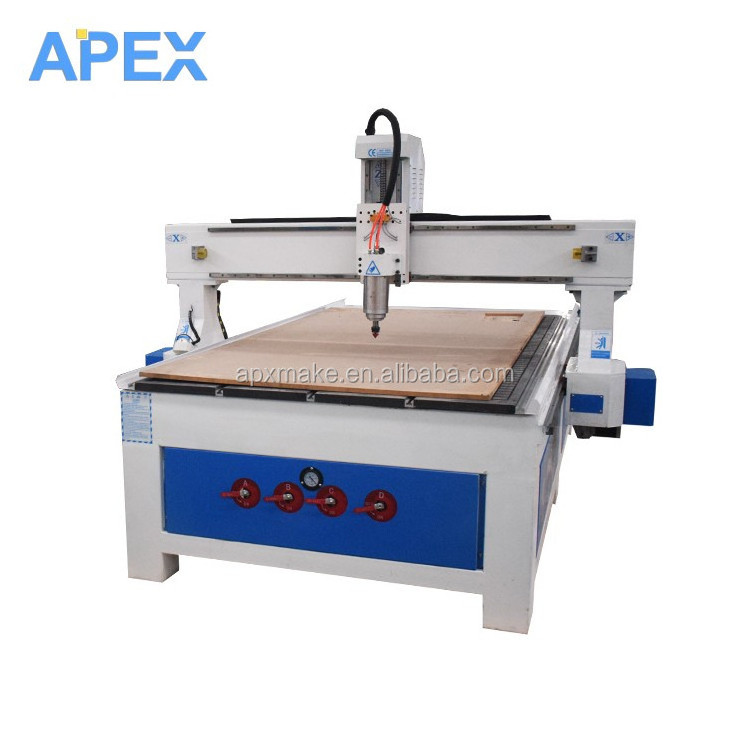

AP1325 Wood CNC Machine
The machine body is welded by thick steel pipes, and it is strong enough to process different materials. such as the wood, acrylic, aluminum, etc. The machine can do engraving, carving, drilling, cutting, milling, grooving work, and many other different works.
Parameters |
Standard Specifications |
Working area |
1300*2500*200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.01/2000mm |
Spindle speed |
1-24000RPM |
Max Travelling Speed |
≥40000mm/min |
Max Working speed |
≥20000mm/min |
Commend Code |
G Code |
Diameter of Cutter |
3.175, 4, 6, 8, 10, 12.7mm |
Cooling Mode |
Water-cooling |
Working voltage |
AC220V/380V |
Interface |
USB |
N.W./G.W. |
1400kg/ 1500kg |
Package size |
3.2m*2.2m*2.2m |
Runing environment |
Temperature:0℃~45℃ Relative Humidity: 30%~75% |
1. Wood furniture industry:
Door, cabinet, table, chair,
Wave board, exquisite pattern, antique furniture, wooden door, screen, craft window sash, composite door, cabinet door, interior door, sofa foot, headboard and so on.
2. Advertising industry:
Signage, trademark, badge, display board, conference board, billboard
Advertising filing, sign making, acrylic engraving and cutting, crystal word making, burst molding and other advertising material derivatives.
3. Mold industry:
Metal mold sculptures such as copper, aluminum and iron, as well as non-metal molds such as artificial marble, sand, plastic cloth and PVC pipe.
4. Art and decoration:
Wooden crafts; gift box; jewelry box
5. Other:
Embossed and three-dimensional engraving and cylindrical objects.
