1)
Along with the motor we R&D a servo drive
which uses a fanless cooling design, even the fan cooling is not used, the
temperature rise of our drive system is controlled within 20 degrees;
2) By optimizing the structural design, no traditional fan distribution box is needed to save investment and installation space for customers;
3) Designed and optimized software to achieve better electromagnetic noise control goals;
4) Developed corresponding protection programs according to the fan operating characteristics of various scenarios, enhancing safety Protective measures can realize overload protection, temperature protection and overvoltage protection, protection against collision and severe dynamic imbalance;
5) Intuitive operation interface allows users to directly operate without reading the user manual at a glance.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XINGTAI
-
Model Number:
-
TFM2855
-
Frequency:
-
50HZ
-
Application:
-
Big HVLS fan
-
Rated Speed:
-
67rpm
-
Rated Torque:
-
130Nm
-
Weight:
-
27kgs
-
OD:
-
284mm
-
Height:
-
112mm
-
Certification:
-
CE
Quick Details
-
AC Voltage:
-
220/380V
-
Warranty:
-
2 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XINGTAI
-
Model Number:
-
TFM2855
-
Frequency:
-
50HZ
-
Application:
-
Big HVLS fan
-
Rated Speed:
-
67rpm
-
Rated Torque:
-
130Nm
-
Weight:
-
27kgs
-
OD:
-
284mm
-
Height:
-
112mm
-
Certification:
-
CE
Product Description

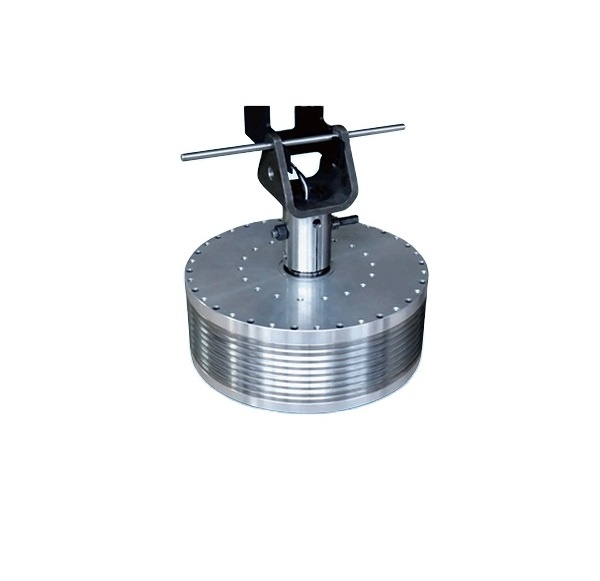

1.5kw servo motor for 20-24ft hvls fan
0.9kw servo motor for 16-20ft hvls fan
Specification
TFM2285 Direct Drive Motor Specification
0.9kw for 16-20ft hvls fan
Under high voltage 380V
|
Motor Specification
|
|
|
|
|||
|
Items
|
Data
|
Units
|
Remark
|
|||
|
Rated Voltage
|
380
|
Vac
|
380-440Vac
|
|||
|
Rated Current
|
1.8
|
Amp
|
|
|||
|
Rated Power
|
850
|
Watt
|
|
|||
|
Rated Efficiency
|
85%
|
PCT
|
|
|||
|
Rated rpm
|
67
|
RPM
|
Related to fan characteristic load
|
|||
|
Max rpm
|
150
|
RPM
|
|
|||
|
Rated torque S1
|
120
|
Nm
|
|
|||
|
Max torque S6
|
130
|
Nm
|
|
|||
|
Ke
|
2200
|
V/Krpm
|
Related to Temperature
|
|||
|
KT
|
44.5
|
Nm/A
|
|
|||
|
Temperature Sensor
|
KTY84-130
|
N/A
|
Standard Features
|
|||
|
Insulation Grade
|
150
|
℃
|
F-class Insulation
|
|||
|
IP Grade
|
IP55
|
N/A
|
|
|||
|
|
|
|
|
|||
|
Motor Diemension
|
|
|
|
|||
|
OD
|
284
|
mm
|
|
|||
|
Height
|
112
|
mm
|
|
|||
|
Fixed shaft OD
|
52
|
mm
|
Fixed shaft extension diameter
|
|||
|
Motor Weight
|
25.5
|
kgs
|
|
|||
|
Motor Weight
|
27
|
kgs
|
With lifting lugs
|
|||
TFM3370 Direct Drive Motor Specification
1.5kw for 20-24ft hvls fan
Under high voltage 380V
|
Items
|
Data
|
Units
|
Remark
|
|
Rated Voltage
|
380
|
Vac
|
380-440Vac
|
|
Rated Current
|
2.7
|
Amp
|
|
|
Rated Power
|
1500
|
Watt
|
|
|
Rated Efficiency
|
85%
|
PCT
|
|
|
Rated Speed
|
62
|
RPM
|
Related to fan characteristic
load
|
|
Max Speed
|
65
|
RPM
|
|
|
Rated Torque S1
|
232
|
Nm
|
|
|
Rated Torque S6
|
250
|
Nm
|
|
|
Ke
|
5800
|
V/Krpm
|
|
|
KT
|
86
|
Nm/A
|
|
|
Temperature Sensor
|
KTY84-130
|
N/A
|
Standard Feature
|
|
Insulation Grade
|
150
|
℃
|
F-class Insulation
|
|
IP Grade
|
IP55
|
N/A
|
|
TFM3370 Direct Drive Motor Specification
Under high voltage 220V
|
Items
|
Data
|
Units
|
Remark
|
|
Rated Voltage
|
220
|
Vac
|
380-440Vac
|
|
Rated Current
|
4.7
|
Amp
|
|
|
Rated Power
|
1500
|
Watt
|
|
|
Rated Efficiency
|
85%
|
PCT
|
|
|
Rated Speed
|
62
|
RPM
|
Related to fan characteristic
load |
|
Max Speed
|
65
|
RPM
|
|
|
Rated Torque S1
|
232
|
Nm
|
|
|
Rated Torque S6
|
250
|
Nm
|
|
|
Ke
|
3340
|
V/Krpm
|
Related to fan characteristic
load |
|
KT
|
49.4
|
Nm/A
|
|
|
Temperature Sensor
|
KTY84-130
|
N/A
|
Standard Feature
|
|
Insulation Grade
|
150
|
℃
|
F-class Insulation
|
|
IP Grade
|
IP55
|
N/A
|
|
Motor Diemension
|
OD
|
330
|
mm
|
|
|
Height
|
128
|
mm
|
|
|
Fixed shaft OD
|
52
|
mm
|
Fixed shaft extension diameter
|
|
Motor Weight
|
32.5
|
kgs
|
|
|
Motor Weight
|
35
|
kgs
|
With lifting lugs
|
Application
Large Industrial Ceiling hvls Fan:
The big ceiling fan with this Direct drive servo motor has an efficiency of 84% within the speed range, especially under 70%
Optimized Design of the Fan Drive and Direct Drive Motor:
Packing & Delivery
BLDC motor packing
Fan blades packing
Two order choices for you:
1.Order motor and drive only
2.Order a whole set of fan (including connecting plate, blade holder, fan bldes etc.)
2.Order a whole set of fan (including connecting plate, blade holder, fan bldes etc.)
Order motor and drive only
Set of
Direct drive motor along with its controll driver
for fan factory.
Order a whole set of large ceiling fan
Complete set of 24ft industrial ceiling fan ,
including
Motor, controller,6 blades,
connecting plate, blade holder,etc
