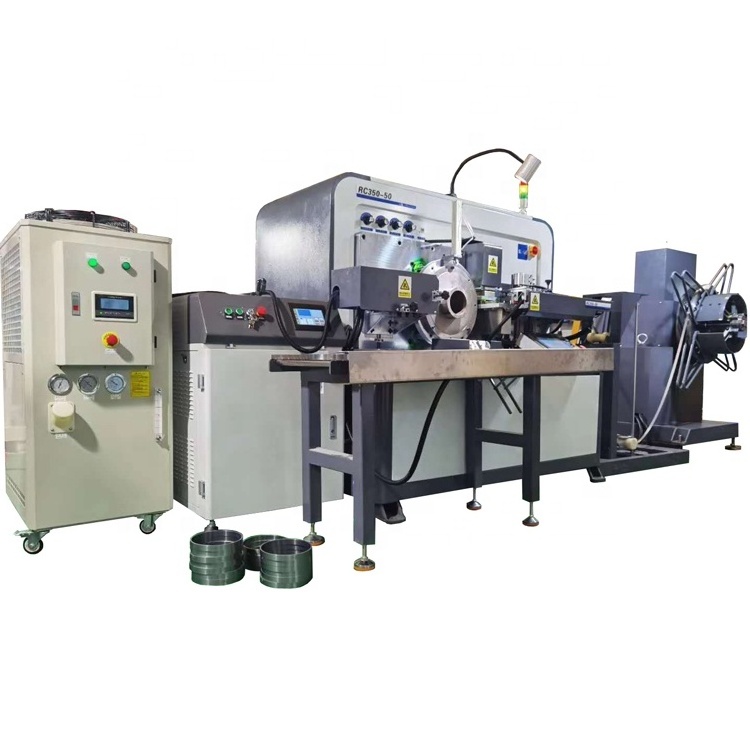

Full automatic toroidal transformer core winding machine for silicon steel wound cores

Full automatic toroidal transformer core winding machine for silicon steel wound cores

FOB Reference Price: Get Latest Price

≥1 Sets

US $50000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

silicon steel strip thickness:: 0.12-0.5mm

Toroidal core OD:: max. 100mm

Toroidal core ID:: min. 30mm

Main winding motor power:: servo motor, 4kW

Feeding motor power:: servo motor, 1.1kW

Speed of winding spindle:: 3000 rpm

Toroidal core OD accuracy:: 0.1mm

Toroidal core height evenness:: +/-0.1mm

Laser welding power:: 200W

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Zhenhuan

silicon steel strip width:: 10-100mm

silicon steel strip thickness:: 0.12-0.5mm

Toroidal core OD:: max. 100mm

Toroidal core ID:: min. 30mm

Main winding motor power:: servo motor, 4kW

Feeding motor power:: servo motor, 1.1kW

Speed of winding spindle:: 3000 rpm

Toroidal core OD accuracy:: 0.1mm

Toroidal core height evenness:: +/-0.1mm

Laser welding power:: 200W

MACHINE DESCRIPTION

This toroidal transformre core winding machine is specially designed for winding toroidal wound cores from CRGO electrical silicon steel full automatically. It has flexible function for various toroidal wound cores:

This machine stops Panasonic PLC control system, full closed-loop control all the procedure, including clamping, fixing, pressing, winding, cutting, welding, releasing, etc.
This machine adopts 5 servo motors driving: |toroidal transformer core winding machine|
* Servo motor for cutting device tracking (non-stop) |toroidal transformer core winding machine|
* Servo motor for cutting down CRGO strips with max. thickness 0.5mm (with reducer)
* Servo motor for spindle winding (with reducer) |toroidal transformer core winding machine|
* Servo motor for flapping & ejecting finished cores |toroidal transformer core winding machine|
* Servo motor for clamping & feeding strip to pin on spindle |toroidal transformer core winding machine|

MAIN FEATURES

- Auto feeding, auto winding, auto cutting, auto welding, auto releasing
- PLC control, HMI operation
- Laser welding, no damage to CRGO strip
- Motorized elevating worktable
- Special water chiller for cooling

- Carbide alloy cutting blade, long life

- Auto decoiling CRGO strips

MACHINE SPECIFICATION

No.	Item	Data
1	Suitable ribbon width	10-100mm
2	Suitable CRGO ribbon thickness	0.12~0.50mm
3	Suitable Permoalloy ribbon thickness	0.1~0.35mm
4	Suitable magnet core ID	Min. 30 mm / Max. 180mm
5	Max. magnet core OD	250mm
6	Main spindle speed	Max. 3000rpm
7	Magnet core ID/OD tolerance	+/-0.5mm
8	Magnet core height evenness	+/-0.1mm
9	Laser generator power	200W
10	Total electric power	6kW
11	Max. ribbon reel weight	1000kg
12	Main machine dimension	About 1950 x 850 x 1600mm
13	Chiller dimension	About 700 x 500 x 800mm
14	Laser generator dimension	About 1200 x 700 x 1000mm
15	Total weight	About 2200kg
