Quick Details
-
Conveyor speed:
-
0.22m/s
-
Load:
-
20 kg
-
Penetration:
-
≥40 mm steel plate
-
Monitor:
-
Samsung 19in LCD Monitor
-
Noise:
-
< 55dB(A)
-
Operating system:
-
windowsXP
-
Film Safety:
-
Safety to the ISO1600
-
Dimensions:
-
L) 1750mm (W)750mm(H)1300mm
-
NW / GW:
-
290 kg / 360 kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINDUN
-
The channel size:
-
500(W)*300(H)mm
-
Conveyor speed:
-
0.22m/s
-
Load:
-
20 kg
-
Penetration:
-
≥40 mm steel plate
-
Monitor:
-
Samsung 19in LCD Monitor
-
Noise:
-
< 55dB(A)
-
Operating system:
-
windowsXP
-
Film Safety:
-
Safety to the ISO1600
-
Dimensions:
-
L) 1750mm (W)750mm(H)1300mm
-
NW / GW:
-
290 kg / 360 kg

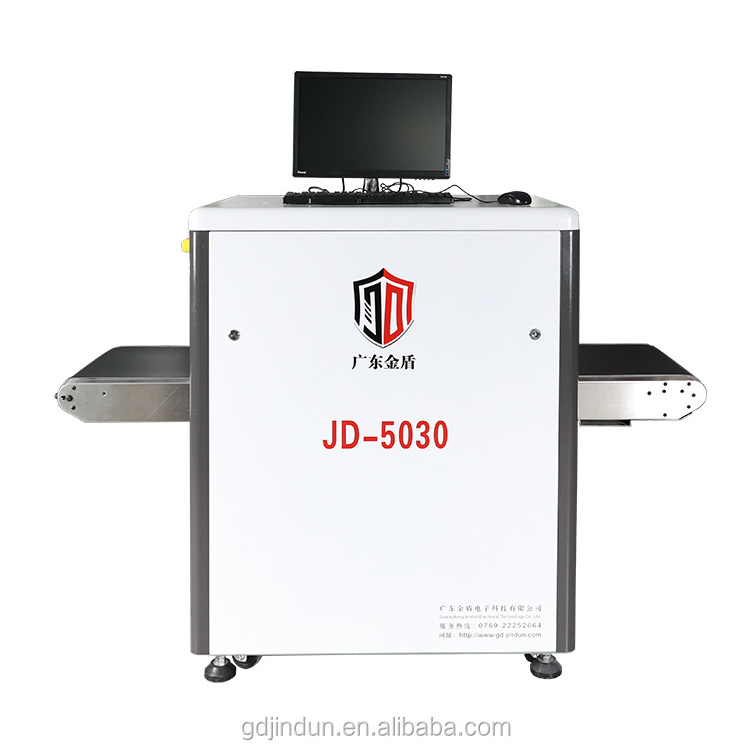

Details Images
Advantages
(1). Spellman brand generator from the USA
(2). Hamamatsu brand detector from Japan
(3). Interroll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported
(2). Hamamatsu brand detector from Japan
(3). Interroll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported
Features:
* Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the
overall quality
* Global leading parameters: the inspection report issued by the Ministry of Public
Security, shows that each parameter is ahead of other products, more details in the inspection report.
* Energy-saving design: The machine can sense objects automatically,if there is luggage
on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
* A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown
automaticly ,reduce equipment failure.
* Environmental-friendly Design: lead shade with protective film, prevent lead from hand
contact, avoid lead pollution.
* Dynamic screen switching: when it is stationary screen it can be switched and when it
is dynamic it also can switch freely.
overall quality
* Global leading parameters: the inspection report issued by the Ministry of Public
Security, shows that each parameter is ahead of other products, more details in the inspection report.
* Energy-saving design: The machine can sense objects automatically,if there is luggage
on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
* A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown
automaticly ,reduce equipment failure.
* Environmental-friendly Design: lead shade with protective film, prevent lead from hand
contact, avoid lead pollution.
* Dynamic screen switching: when it is stationary screen it can be switched and when it
is dynamic it also can switch freely.
Product Certification
|
1.Strict quality internal control , double-check principles of engineering and production
|
|
2.Safeguard measures for machine parts
|
|
3.Through the testing by Ministry of public security and police use electronic product quality testing center
|
|
4.Through the EU CE certification
|
|
5.Through the ISO9001 quality management system certification
|
|
6.Through the ISO14001 environmental management system certification
|
|
7.Through the GB/T28001 occupation health and safety management system certification
|
|
8.Through thes provincial Environmental Protection Department of radiation safety certification
|
|
9.Through the provincial occupation health inspection center detection of radiation
|
|
10.Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate
|
|
11.Double soft certification
|
Product Description
|
X-ray Generator
|
|
|
|
Ray Beam direction
|
Bottom-illuminated
|
|
|
Tube current
|
0.4~0.5mA（adjustable）
|
|
|
Tube voltage
|
100-160 kV（adjustable）
|
|
|
Ray beam divergence angle
|
60°
|
|
|
The cooling / work cycle
|
Sealed oil cooling / 100％
|
|
|
Image Processing System
|
|
|
|
X-ray sensor
|
L-shaped photodiode array detector (C), 24bit depth
|
|
|
Monitor
|
high resolution 19 inch LCD SamSung monitor
|
|
|
Color image display
|
24-bit true color display
|
|
|
Edge Enhancement
|
the outline of objects will be more clear
|
|
|
Super Image Enhancement
|
the details of the image are more clear
|
|
|
High penetration display
|
improve image contrast in dark areas, so the difficult penetrating area will be more clear
|
|
|
Low penetration display
|
improve image contrast in dark areas, so the difficult penetrating area will be more clear
|
|
|
Magnifier
|
local amplification function
|
|
|
Brighten / darken
|
Increase/ decrease image brightness
|
|
|
Image pull back / front pull
|
Show the top 20 images, and the current image can be any image processing
|
|
|
Image Restoration
|
Restored to its original state
|
|
|
Image Storage
|
Real-time save any image, any image can be processed arbitrarily ,continuous work to save
|
|
|
Environmental conditions
|
|
|
|
Operating temperature / humidity
|
0℃～45℃／20%～95% (No condensation)
|
|
|
Storage temperature / humidity
|
-20℃～60℃／20%～95% (No condensation)
|
|
|
Operating Voltage
|
220VAC(±10%) 50±3Hz
|
|
|
Power consumption
|
1.0KW（maximum）
|
|
|
Noise level
|
<55dB （A）
|
|
|
Technical Standards
|
Technical Parameters
|
|
The channel size
|
500（W）×300（H）mm
|
|
Conveyor speed
|
0.22m/s
|
|
Load
|
20 kg
|
|
Resolution
|
0.0787 mm
|
|
Penetration
|
≥40 mm steel plate
|
|
Monitor
|
Samsung 19in LCD Monitor
|
|
Storage
|
500G hard drive to save any image in real time, can store more than 100,000 and
can make any image processing, and continuous work to save. |
|
Noise
|
< 55dB(A)
|
|
Operating system
|
windowsXP
|
|
Film Safety
|
Safety to the ISO1600
|
|
Leaking radiation dose rate
|
Safety to the ISO1600
|
|
Dimensions
|
Away from any device outer surface of 5cm, the ray irradiation leak rate should
be < 0.05µGy/H |
|
NW / GW
|
290 kg / 360 kg
|
|
Applications
|
Customs, port, prosecutors, prisons, railway stations, courts and other security units.
|
