Quick Details
-
Application:
-
Walls/acoustic shield/sandwich panel core/ceiling
-
Design Style:
-
None
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SuperGold/OEM/ODM
-
Model Number:
-
SGI-GW002
-
Type:
-
Fiberglass Heat Insulation Materials
-
Material:
-
Glass Fiber, fiberglass
-
Color:
-
Yellow
-
Density:
-
20-120kg/m3
-
Thickness:
-
25-150mm/customized
-
Width:
-
600-1250mm/customized
-
Length:
-
600-3000mm/customized
-
Heat Conductivity:
-
0.038-0.042w/m.k
-
Highest working temperature:
-
Less than 400℃
-
Facing:
-
FSK Aluminum foil/Black or white tissue/others
-
Certification/Test Report:
-
CE/ISO/ASTM/ASNZS
-
Package:
-
Heat Shrink PP Bag or Plastic Bag
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Walls/acoustic shield/sandwich panel core/ceiling
-
Design Style:
-
None
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SuperGold/OEM/ODM
-
Model Number:
-
SGI-GW002
-
Type:
-
Fiberglass Heat Insulation Materials
-
Material:
-
Glass Fiber, fiberglass
-
Color:
-
Yellow
-
Density:
-
20-120kg/m3
-
Thickness:
-
25-150mm/customized
-
Width:
-
600-1250mm/customized
-
Length:
-
600-3000mm/customized
-
Heat Conductivity:
-
0.038-0.042w/m.k
-
Highest working temperature:
-
Less than 400℃
-
Facing:
-
FSK Aluminum foil/Black or white tissue/others
-
Certification/Test Report:
-
CE/ISO/ASTM/ASNZS
-
Package:
-
Heat Shrink PP Bag or Plastic Bag
P.S.
1.
The glass wool boards are custom-made products, please discuss with us the size and density(you need) to get an exact quotation before placing an order.
2.
If you need a sample, please contact us to discuss the size(you need) and shipping options before placing an order.
SUPERGOLD

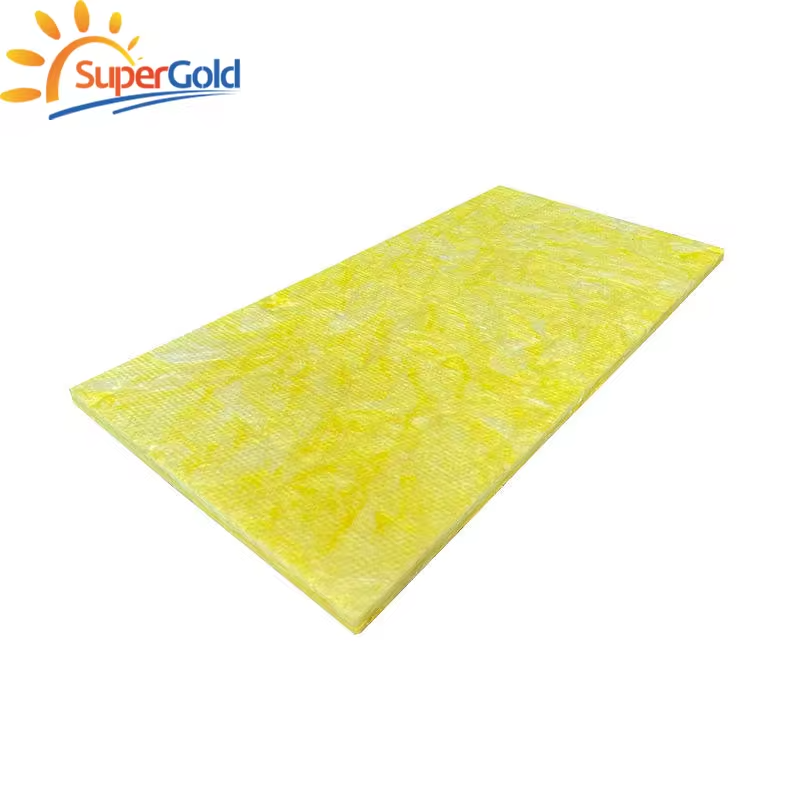

glass wool board is consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, rigid glass wool panel
, it
provides an excellent balance of both thermal and acoustic insulation properties
.
The boards can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, WMSK, Black tissue and Kraft Facing) according to customer's requirement.
Semi-Rigid Board or
Rigid Board
Conductivity Value tested under temperature in 23°C
Consult us for other available specifications.
Consult us for other available specifications.
Facing is available according to your project design.
In general, glass wool boards are wrapped by transparent or yellow color plastic bag,
they are stored in the dry environment.
(The packing are supported for customization.)
ISO 9001: 2015, ISO 14001:2015
GB/T17795-2008, GB/T23932-2009, EN ISO 354, EN12667, ASTM C177, ASTM C653, ASTM C665 With CE Certificate according to standard EN 13162:2008
GB/T17795-2008, GB/T23932-2009, EN ISO 354, EN12667, ASTM C177, ASTM C653, ASTM C665 With CE Certificate according to standard EN 13162:2008
Classified as Euroclass A1 to BS EN ISO 13501-1, and GB/T5464-2010, GB/T14402-2007
•
Improve the energy efficiency of the building
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
Our glass wool board can be widely used in sandwich panels for modular house and container house,
facades, roofs, ceilings,
partition walls and
interior
walls
.
It is also recommended for the optimum thermal and acoustic insulation of industrial equipment, domestic appliances and sheet metal ductwork, operating at up to 170°C.
1.Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read your SDS and literature before specification and insulation.
2.The glass wool board products are supported to get samples, our glass wool board samples are small blocks, the packages are plastic bags, please contact us to discuss the size(you need) before placing an order.
|
Available Product Specifications
|
|
|
|
|
||||
|
Length
|
1
.
2m/2
.
4m/Customization
|
|
|
|
||||
|
Width
|
1
.
2m/Customization
|
|
|
|
||||
|
Thickness
|
20-100mm
|
|
|
|
||||
|
Density
|
24-96kg/m
³
|
|
|
|
||||
