Quick Details
-
Shade Shape:
-
Round
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Model Number:
-
ST78-2
-
Input Voltage(V):
-
AC 220V
-
Lamp Luminous Efficiency(lm/w):
-
/
-
Lamp Luminous Flux(lm):
-
/
-
Working Temperature(℃):
-
-20 - 40
-
Working Time (hours):
-
25000
-
PCs/ Ctn:
-
5
-
Packing Dimension:
-
/
-
Product Dimension:
-
/
-
Product Weight（kg）:
-
100
-
Product name:
-
Infrared Sensor lamp
-
Material:
-
Glass
-
Light source:
-
Max.2*25W(E27)
-
Detection Angle:
-
360°
-
Detection Distance:
-
Max.6m(<24°C)
-
Application fields:
-
Entrance, Hallway, Aisle, Toilet, Basement, Garage, ect
-
Certificate:
-
CE
-
Warranty:
-
3 Years
Quick Details
-
Lamp Body Material:
-
PC
-
Design Style:
-
Modern
-
Shade material:
-
PC
-
Shade Shape:
-
Round
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Model Number:
-
ST78-2
-
Input Voltage(V):
-
AC 220V
-
Lamp Luminous Efficiency(lm/w):
-
/
-
Lamp Luminous Flux(lm):
-
/
-
Working Temperature(℃):
-
-20 - 40
-
Working Time (hours):
-
25000
-
PCs/ Ctn:
-
5
-
Packing Dimension:
-
/
-
Product Dimension:
-
/
-
Product Weight（kg）:
-
100
-
Product name:
-
Infrared Sensor lamp
-
Material:
-
Glass
-
Light source:
-
Max.2*25W(E27)
-
Detection Angle:
-
360°
-
Detection Distance:
-
Max.6m(<24°C)
-
Application fields:
-
Entrance, Hallway, Aisle, Toilet, Basement, Garage, ect
-
Certificate:
-
CE
-
Warranty:
-
3 Years

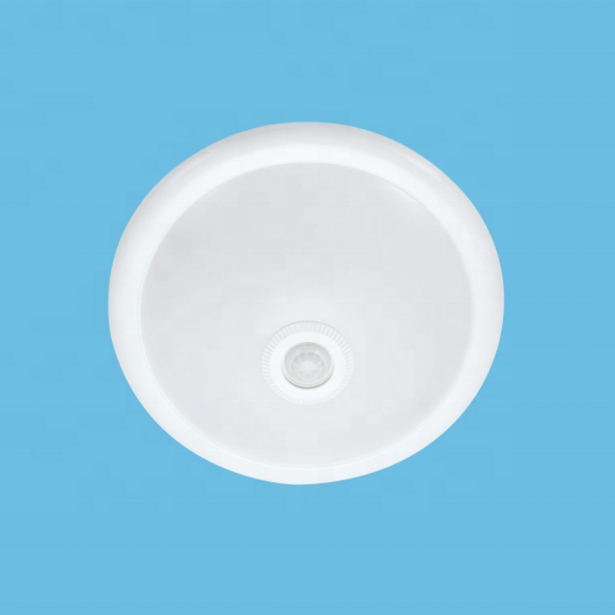

Welcome to use ST78-2 Infrared Sensor Light!
Supermarket Good Price ST78-2 infrared security sensor light motion sensor lamp LED ceiling lamp
The product is an energy-saving automatic sensor lamp, adopting integrated circuit and precise detecting components. It gathers automatism, convenience, safety, saving-energy and practical functions. Its performance is stable. It can identify day and night. The lamp can turn on when one enters detection field and can turn off automatically when one leaves detection field.
Specifications:
Power Source: 220-240V/AC Detection Range: 360 °
Power Frequency: 50/60Hz Detection Distance: 6m max(<24 ℃ )
Ambient Light: <3-2000LUX (adjustable) Working Temperature: -20~+40 ℃
Time Delay: Min.10sec ± 3sec Working Humidity : <93%RH
Max.3min ± 30sec Installation Height: 2.2-4m
Rated Load: Max. 2x25W (E27) Detection Moving Speed: 0.6-1.5m/s
Lifetime and Warranty:
|
Lifetime (hr) |
26000-45000 at least |
|
Warranty |
3 years |
FUNCTION:
Ø Can identify day and night: The cons umer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.
Ø Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
Ø Adjustable Time Delay: the length of time delay could be set according to the customers’ requirement, the minimum time of this item is 10sec ± 3sec, the maximum is 3min±30sec.
INSTALLATION:
Ø Switch off the power.
Ø Unscrew the plastic screw nut and remove the glass lampshade.(refer to figure1)
Ø Pass the wire through the hole in the bottom and connect the power wire into connection-wire column according to the connection-wire diagram. Install the sensor lamp in the position where you need with inflated screws. (refer to figure2)
Ø Enclose the incandescent bulbs or energy-saving lamps. Install back the lampshade, then electrify and test it. (refer to figure3)
CONNECTION-WIRE DIAGRAM:
SENSOR INFORMATION:
Our company adopts automatic machines, such as: SMD, auto component inserter, wave solder, auto injection machines,the daily output is up to 20000-30000 pcs.
The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification .
