Quick Details
-
Brand Name:
-
Minshan
-
Model Number:
-
HN-SW-01
-
Operating Temperature:
-
0~80 Degree
-
Material:
-
DI&Aluminum
-
Medium:
-
liquid
-
Type:
-
Saddle,Flange,Welded,Thread
-
Norminal diameter:
-
DN50~DN200
-
Norminal working pressure:
-
1.2Mpa
-
Time delay:
-
2 to 90s
-
Contacts capacity:
-
AC220V/3A ,DC24V/1A
-
Sensitivity:
-
15 to 37.5 L/min
-
Seal test pressure:
-
2.4Mpa
-
Application:
-
fire fighting equipment
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
15 to 37.5 L/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Minshan
-
Model Number:
-
HN-SW-01
-
Operating Temperature:
-
0~80 Degree
-
Material:
-
DI&Aluminum
-
Medium:
-
liquid
-
Type:
-
Saddle,Flange,Welded,Thread
-
Norminal diameter:
-
DN50~DN200
-
Norminal working pressure:
-
1.2Mpa
-
Time delay:
-
2 to 90s
-
Contacts capacity:
-
AC220V/3A ,DC24V/1A
-
Sensitivity:
-
15 to 37.5 L/min
-
Seal test pressure:
-
2.4Mpa
-
Application:
-
fire fighting equipment
Product Description

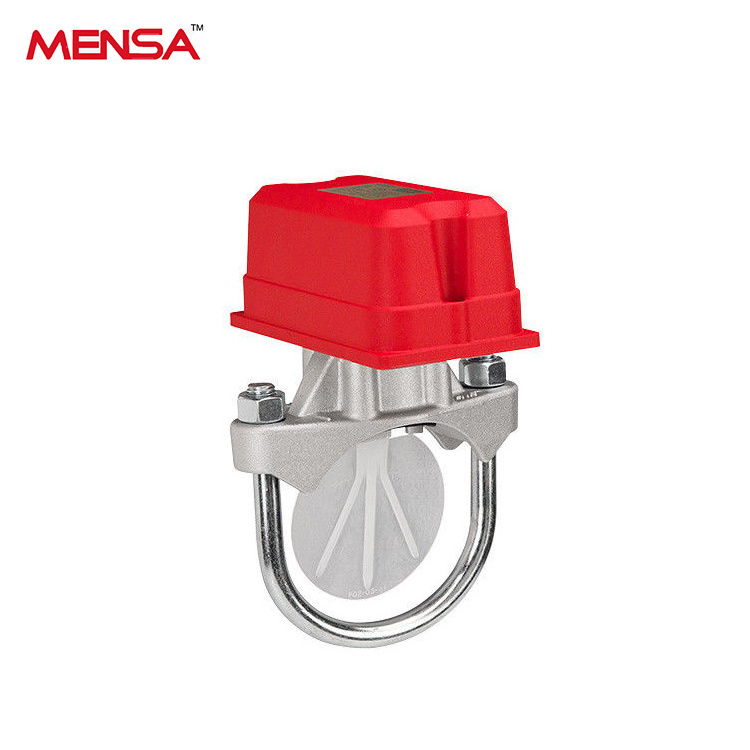

Water Flow Switch and Control Switch Connecting with Fire Sprinkler System
1. Widely use in automatic fire extinguishing system;
2 . Vairous types to choose;
3 . Easy install and use.
4. 2"(50mm) to 8"(200mm) are available
| Characteristics and Functions | |
| Model | ZSJA/H |
| Type | Welded type fire fighting water flow meter |
| Material | Brass, Ductile Iron |
| Norminal diameter | DN50~DN200 |
| Norminal working pressure | 1.2Mpa |
| Time delay | 2 to 90s |
| Sensitivity | 15 to 37.5 L/min |
| Contacts capacity | AC220V/3A ,DC24V/1A |
| Seal test pressure | 2.4Mpa |
| Pressure | High Pressure fire fighting water flow meter |
| Basic Parameters of Water Flow Indicator | ||||
| Type | Saddle type | Flange type | Welded type | Thread type |
| Model | ZSJZ/A | ZSJZ/F | ZSJZ/H | ZSJZ/S |
| Norminal diameter | DN50, DN65, DN80, DN100, DN120, DN150, DN200 | |||
| Norminal working pressure | 1.2Mp | |||
| Time delay | 2 to 90s | |||
| Sensitivity | 15 to 37.5 L/min | |||
| Contacts capacity | AC220V/3A ,DC24V/1A | |||
