Quick Details
-
Accuracy:
-
Better than±0.5%
-
Repeatability:
-
±0.2%
-
Range:
-
≥10:1
-
Medium:
-
Various of liquid,gas and steam
-
Pressure:
-
More than 5MPa
-
Temperature:
-
Less than 400°C
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Beixing
-
Model Number:
-
Wedge type
-
Accuracy:
-
Better than±0.5%
-
Repeatability:
-
±0.2%
-
Range:
-
≥10:1
-
Medium:
-
Various of liquid,gas and steam
-
Pressure:
-
More than 5MPa
-
Temperature:
-
Less than 400°C

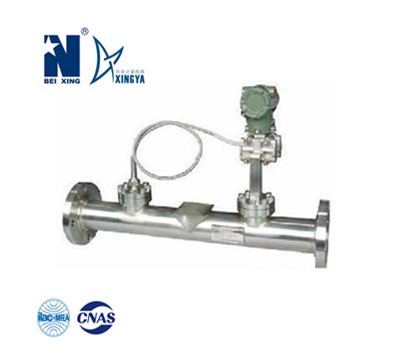

Beixing Meter Manufacturer Wedge flow integrating meter/pipe flow meter
Feature
No deposit,no blocking,with self-cleaning capability,suitable for high temperature,high pressure,high viscosity,strong corrosion of various liquids and gases with high dust-laden flow measurement.
Technical parameters
1.Accuracy: Better than±0.5%
2.Repeatability: ±0.2%
3.Range: ≥ 10:1
4.Pressure loss: About 1/5 of the differential pressure measurement(1/3 of Orifice)
5.Medium: Various of liquid,gas and steam
6.Reynolds number range: 500-1×10 6
7.Measured liquid viscosity: more than 500mPa·s
8.Pressure: More than 5MPa
9.Temperature: Less than 400°C
10.Diameter: DN15mm-DN300mm(We can also provide more than 300mm by customers)
11.Wedge ratio h/D: 0.2,0.3,0.4,0.5
12.Long-time running accuracy: ±0.2%F·S/Y
Application
1.It is suitable to measure the viscosity fluid whose viscosity can reach more than 500mPa·s ,such as fuel oil, residual oil or heavy oil.
2.It is suitable to measure the solid-liquid mixture of suspended particles,such as pulpous fluid, sewage etc.
3.Wide measuring range, Reynolds number from 300 to 10 6 orders of magnitude,so it is used for gas and steam measurement.
4.Common technical parameters:25mm≤D≤300mm,PN≤6.4MPa,t≤200°C
