Quick Details
-
Brand Name:
-
Santai Machinery
-
Voltage:
-
220V 380V 400V 380V/50Hz/three-phase or customized
-
Dimension(L*W*H):
-
2600*2000*1900mm
-
Power (kW):
-
30
-
Weight (T):
-
2.5
-
Name:
-
Mini Shredder Machine
-
Application:
-
Recycle Waste Plastic
-
Keyword:
-
Plastic Shreeder
-
Function:
-
Multifunctional Waste Material Shredder
-
Usage:
-
Waste Raw Material Shredding
-
Product name:
-
Shreddder Machine
-
Crushing material:
-
General Plastic Materials
-
After-sales Service Provided:
-
Video Technical Support
-
Type:
-
Environment-friendly
-
Raw material:
-
Plastic Products Paper Wood Metal Product
Quick Details
-
Max.Production Capacity (kg/h):
-
2000
-
Place of Origin:
-
Henan China
-
Production Capacity (kg/h):
-
1000 - 2000 kg/h
-
Brand Name:
-
Santai Machinery
-
Voltage:
-
220V 380V 400V 380V/50Hz/three-phase or customized
-
Dimension(L*W*H):
-
2600*2000*1900mm
-
Power (kW):
-
30
-
Weight (T):
-
2.5
-
Name:
-
Mini Shredder Machine
-
Application:
-
Recycle Waste Plastic
-
Keyword:
-
Plastic Shreeder
-
Function:
-
Multifunctional Waste Material Shredder
-
Usage:
-
Waste Raw Material Shredding
-
Product name:
-
Shreddder Machine
-
Crushing material:
-
General Plastic Materials
-
After-sales Service Provided:
-
Video Technical Support
-
Type:
-
Environment-friendly
-
Raw material:
-
Plastic Products Paper Wood Metal Product
Products Description

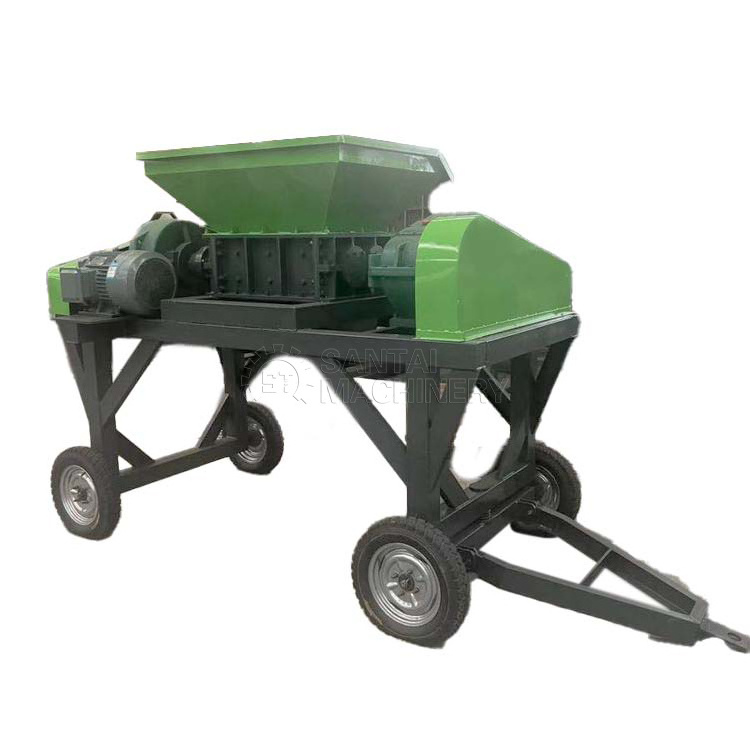

double shaft shredder
Double Shaft Shredder is a large industrial shredder, suitable for shredding large hard materials, such as scrap metal, end-of-life automobiles, waste wires, cables, construction waste, household electrical appliances, domestic waste, rubber tyres, plastic blocks, HDPE, PVC thick-walled pipes, films, waste clothes, wooden pallets and so on. The machine is designed with shaft structure, which can support various types of customised blades to meet the needs of customers for crushing various kinds of waste materials.
Product parameters
|
Model
|
Spindle power
（kw）
|
Spindle speed
(r/min)
|
Capacity
(t/h)
|
Cutter diameter
|
Weight
(t) |
Dimension(mm)
|
|
600
|
6-15*2
|
8-15
|
1-2
|
220
|
2.5
|
2600*2000*1900
|
|
800
|
6-18.5*2
|
8-15
|
1.5-2.5
|
220
|
3
|
2800*2000*1900
|
|
1000
|
6-30*2
|
11-18
|
2-3
|
300
|
5
|
3000*2000*1900
|
|
1200
|
6-37*2
|
12-20
|
3-5
|
400
|
8
|
3200*2000*1900
|
|
1400
|
6-45*2
|
8-10
|
4-6
|
500
|
12
|
4000*3000*2400
|
|
1600
|
6-75*2
|
6-10
|
5-8
|
550
|
14
|
5000*3000*2400
|
|
1800
|
6-90*2
|
5-10
|
8-12
|
600
|
22
|
6000*3500*2400
|
|
2000
|
6-110*2
|
4-8
|
10-15
|
650
|
28
|
7000*4000*4500
|
|
2200
|
6-160*2
|
4-6
|
15-25
|
700
|
30
|
8200*4000*4300
|
twin shaft shredder
During the operation of the dual axis shredder, the material is propelled by an hydraulic cylinder and equipped with a pneumatic clamping device. In terms of equipment control, PLC programmable control is adopted, with a high degree of automation and easy operation. By continuously cutting with a moving knife, the material is gradually reduced until it is completely crushed, during which time it can also be continuously added.
Details Images
Application Scenarios
Double Shaft Shredder
Wood: mattresses, furniture, sofas, wooden pallets, scrap wood, sawdust particleboard, etc.
Metal: used car shell, color steel tile, bicycle, scrap wire, cable, gas tank, iron filings, engine case, paint bucket, etc.
Paper: carton board, carton, packing box, cardboard, etc.
Plastic: PE, PP, PVC, polyethylene pipe, plastic drum, plastic pipe, etc.
Rubber: automobile tires, construction machinery tires, transportation belts, etc
Waste household appliances: TV, washing machine, refrigerator shell, etc
Textiles: waste clothes, woven bags, ton bags, giant bags, industrial textile waste, etc
All kinds of household waste, medical waste, kitchen waste, building materials waste, etc
