Quick Details
-
Model Number:
-
Q195
-
Product name:
-

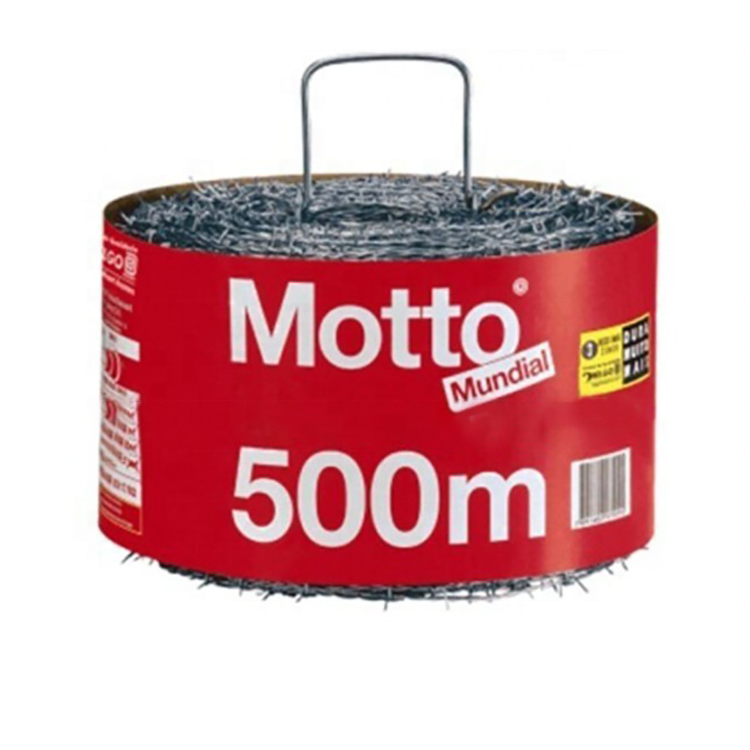

Barbed Wire
-
Application:
-
Protection
-
Color:
-
Silver, Green
-
Certification:
-
ISO9001:2008
-
Barb length:
-
1.5 - 3cm
-
Wire diameter:
-
1.5 - 3.0mm
-
Roll weight:
-
5 - 50kg
-
Packing:
-
Wooden pallet, Metal pallet
-
Feature:
-
Easy, Great Protection, Excellent Quality
-
Usage:
-
Preserve, Garden Fence, prison and so on
Quick Details
-
Material:
-
Iron Wire, PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINSHENGSEN
-
Model Number:
-
Q195
-
Product name:
-
Barbed Wire
-
Application:
-
Protection
-
Color:
-
Silver, Green
-
Certification:
-
ISO9001:2008
-
Barb length:
-
1.5 - 3cm
-
Wire diameter:
-
1.5 - 3.0mm
-
Roll weight:
-
5 - 50kg
-
Packing:
-
Wooden pallet, Metal pallet
-
Feature:
-
Easy, Great Protection, Excellent Quality
-
Usage:
-
Preserve, Garden Fence, prison and so on
Products Description
Barbed wire is a defensive metal wire, and the body is covered with a sharp edge, and there is also the same distance between the blades. This type of wire is economic and easy to install.
Specification
Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Hot-dip galvanizing is stronger than electric galvanizing. Its high resistance allows greater spacing between the fencing posts. It used for grass boundary, railway, highway isolation protection.
Material
: low carbon wire, electric galvanized wire, hot dip galvanized wire
Surface Treatment
: electric galvanized then PE coated, hot dip galvanized then powder coated.
|
Barbed wire type and specifications
|
|
|
|
|||
|
Type
|
Wire Gauge(SWG)
|
Barb Distance
|
Barb Length
|
|||
|
Electro Galvanized Barbed Wire
Hot-dipped zinc plating barbed wire
|
10#*12#
|
3" -6"
|
14-24mm
|
|||
|
|
12#*12#
|
|
|
|||
|
|
12#*14#
|
|
|
|||
|
|
14#*14#
|
|
|
|||
|
|
14#*16#
|
|
|
|||
|
|
16#*16#
|
|
|
|||
|
|
16#*18#
|
|
|
|||
|
PVC coated barbed wire
PE coated barbed wire
|
Before coating / After coating
|
|
|
|||
|
|
1.0-3.5mm / 1.4-4.0mm
|
|
|
|||
|
|
BWG11#-20# / BWG8#-17#
|
|
|
|||
|
|
SWG11#-20# / SWG8#-17#
|
|
|
|||
|
Zinc coated
: 40-60g/m2, 8-20g/m2
Weight coil: 5-50KG Roll length : 100m, 200m, 350m, 400m, 500m Breaking load (Rupture) : 250KGF, 350KGF Barbed wire weave types : Double twist barbed wire, Traditonal Twist barbed wire, Single strand barbed wire PVC PE coating thickness : 0.4-0.6mm; different colors or length are available at customers request |
|
|
|
|||
Application
Barbed wire is mainly used in protecting of grass boundary, railway, highway, national defense, airport, orchard, etc.
