Quick Details
-
Dimension(L*W*H):
-
755x730x1530mm
-
Weight:
-
330kg
-
After-sales Service Provided:
-
No overseas service provided
-
business type:
-
original manufacturer
Quick Details
-
Core Components:
-
Burner, Carbon steel liner
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kingwei Energy
-
Dimension(L*W*H):
-
755x730x1530mm
-
Weight:
-
330kg
-
After-sales Service Provided:
-
No overseas service provided
-
business type:
-
original manufacturer

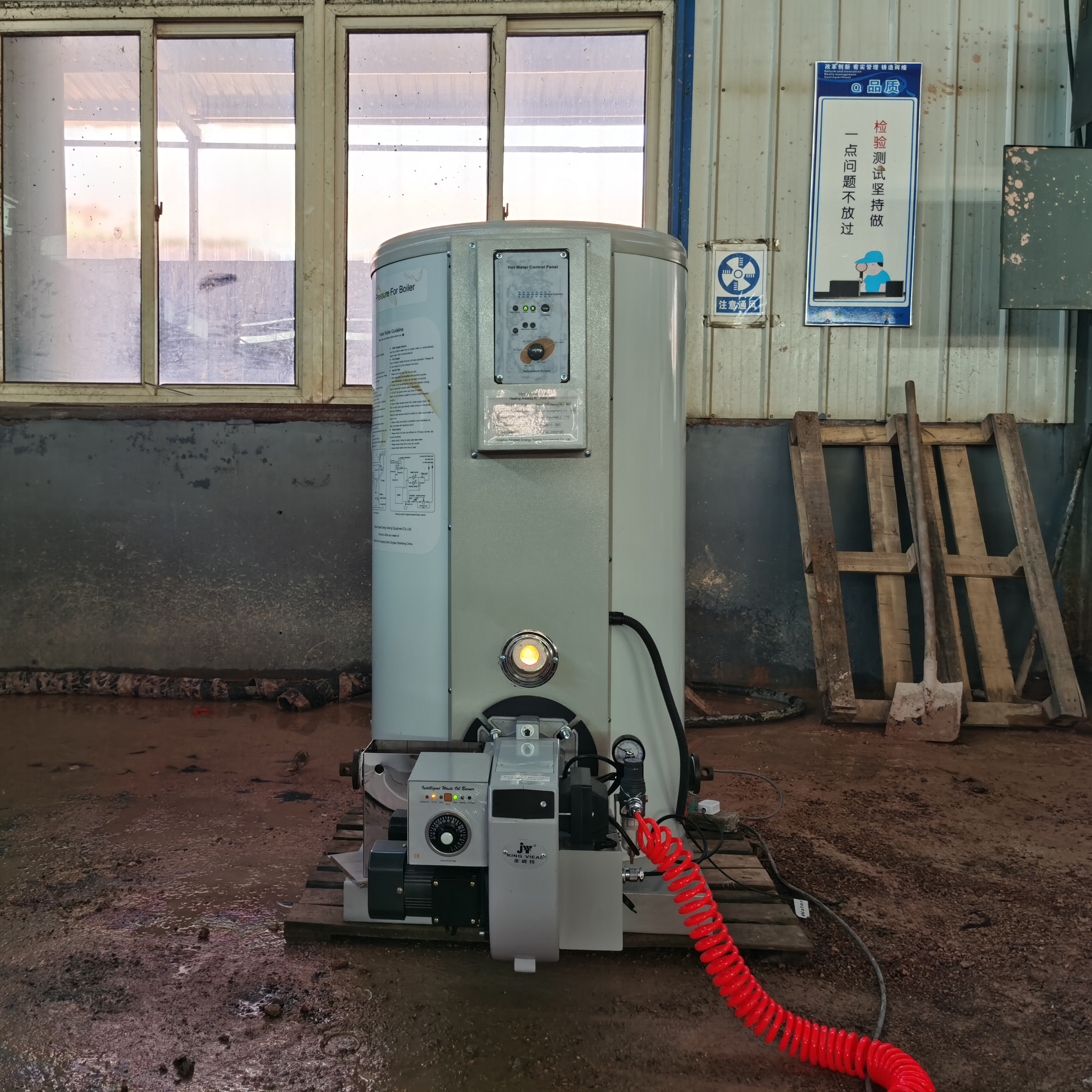

Vertical Hot Water Boiler
|
Model
|
KVB400
|
★
KVB500
|
KVB700
|
★KVB1000
|
KVB1500
|
||||
|
Heating Area
|
2500sq.ft
|
3300sq.ft
|
5000sq.ft
|
8000sq.ft
|
10000sq.ft
|
||||
|
Output Power
|
47kw
|
60kw
|
80kw
|
120kw
|
170kw
|
||||
|
Output Heat
|
40,000Kcal/h
|
50,000Kcal/h
|
70,000Kcal/h
|
100,000Kcal/h
|
150,000Kcal/h
|
||||
|
Chimney Dia
|
3.94inch
|
7.87inch
|
7.87inch
|
7.87inch
|
7.87inch
|
||||
|
Water Exit/Inlet Hole Dia
|
1.26inch
|
1.97inch
|
1.97inch
|
2.56inch
|
2.56inch
|
||||
|
Heating Efficienty
|
85%
|
|
|
|
|
||||
|
Working Pressure
|
Normal Pressure
|
|
|
|
|
||||
|
Waste Oil Consumption
|
3L/h
|
5L/h
|
7L/h
|
10L/h
|
15L/h
|
||||
|
Water Capacity
|
80L
|
110L
|
126L
|
180L
|
250L
|
||||
|
Size (L*W*H)
|
23*22*44inch
|
26*25*51inch
|
26*25*53inch
|
30*29*61inch
|
32*32*68inch
|
||||
|
N.W
|
165kg
|
234kg
|
250kg
|
330kg
|
410kg
|
||||
Horizontal Hot Water Boiler
|
Model
|
KVB2000
|
★KVB3000
|
KVVB4000
|
KVB5000
|
KVB6000
|
||||
|
Heating Area
|
15,000sq.ft
|
20,000sq.ft
|
26,000sq.ft
|
33,000sq.ft
|
40,000sq.ft
|
||||
|
Ouptput Power
|
230kw
|
350kw
|
480kw
|
580kw
|
700kw
|
||||
|
Max.Output Heat
|
200,000Kcal/h
|
300,000Kcal/h
|
400,000Kcal/h
|
500,000Kcal/h
|
600,000Kcal/h
|
||||
|
Working Pressure
|
Normal Pressure
|
|
|
|
|
||||
|
Water Capacity
|
280L
|
860L
|
1120L
|
1200L
|
1300L
|
||||
|
Water Inlet/Exit Hole Dia
|
2.56inch
|
3.15inch
|
3.15inch
|
3.94inch
|
3.94inch
|
||||
|
Drain Valve Dia
|
1.57inch
|
1.57inch
|
1.57inch
|
1.57inch
|
1.97inch
|
||||
|
Oil Consumption
|
20L/h
|
30L/h
|
40L/h
|
50L/h
|
60L/h
|
||||
|
Voltage
|
220v
|
220v
|
380v
|
380v
|
380v
|
||||
|
Total Power Consumption
|
0.37ww
|
1.1kw
|
2.3kw
|
2.3kw
|
2.3kw
|
||||
|
Boiler Size
(L*W*H)
|
79*36*41inch
|
78*42*52inch
|
89*48*52inch
|
89*49*59inch
|
98*84*64inch
|
||||
|
Chimney Dia
|
12inch
|
12inch
|
14inch
|
15inch
|
17inch
|
||||
|
N.W
|
620kg
|
800kg
|
1000kg
|
1500kg
|
1870kg
|
||||
Boiler & Burner Connection Step
Step one, Screw out burner’s flange and tube
Step Two, Put on asbestos mat, align boiler’s connector
Step Three, Onto flat pad, spring pad and screw nut in turn,
tighten completely to the end
Step Four, Put burner onto the fixed flange, screw on tightly
Step Five, Connect burner to boiler’s controller
*Reference video link,https://youtu.be/1TVTog9Hc9M
