Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Ling tie
-
Dimensions(L*W*H):
-
L2950*W1360*H6501650 mm
-
Weight:
-
1000KG, 1000kg
-
Certification:
-
SGS CE ISO9001
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Application area:
-
Screen Printing Frames Cleaning
-
Printing material:
-
Heat Transfer Film
-
Max printing size:
-
700*600
-
Printing speed:
-
2500 times/ hour
-
Frame size:
-
1000*1000mm
-
Printing type:
-
Roll Printing
-
Material thickness:
-
0.02-0.5mm
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
220v
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Ling tie
-
Dimensions(L*W*H):
-
L2950*W1360*H6501650 mm
-
Weight:
-
1000KG, 1000kg
-
Certification:
-
SGS CE ISO9001
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Application area:
-
Screen Printing Frames Cleaning
-
Printing material:
-
Heat Transfer Film
-
Max printing size:
-
700*600
-
Printing speed:
-
2500 times/ hour
-
Frame size:
-
1000*1000mm
-
Printing type:
-
Roll Printing
-
Material thickness:
-
0.02-0.5mm
Products Description

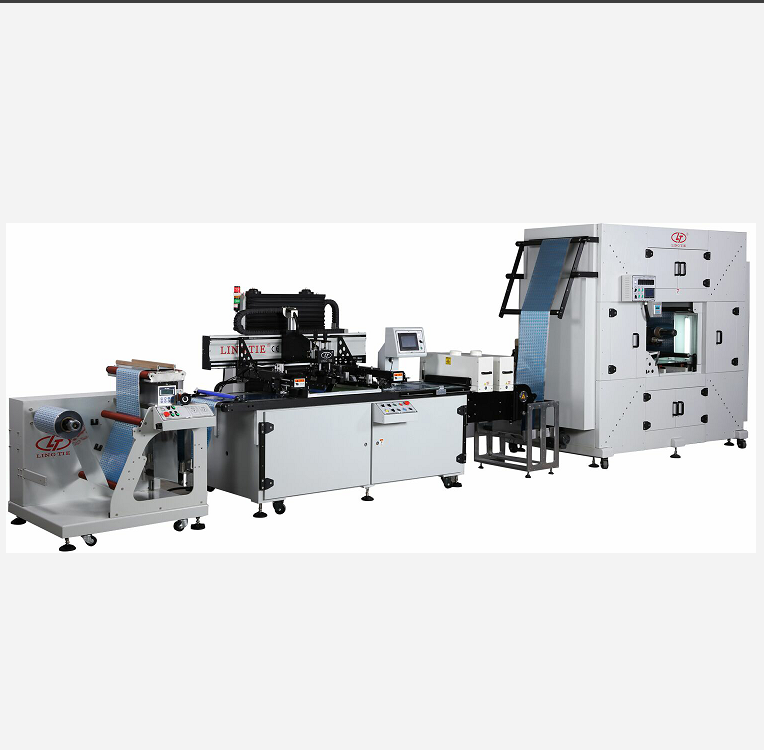

Automatic Precision Silk Screen Printing Machine LTA-7060
The Automatic Precision Silk Screen Printing Machine LTA-7060 is designed to print on film material in roll, such as PET, PVC, PE,PV, PP film.
This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.
The feeder has dust removal rollers, it is able to alarm when the roll material run out.
The printing unit table has vaccum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.
The hot air dryer has 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being
dried.
High level of automation, only one people can operator the the whole printing line.
High printing accuracy, multi color overprint can be done on the machine.
High productivity, production capacity equal to six sets of semi-automatic screen printing machine.
This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.
The feeder has dust removal rollers, it is able to alarm when the roll material run out.
The printing unit table has vaccum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.
The hot air dryer has 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being
dried.
High level of automation, only one people can operator the the whole printing line.
High printing accuracy, multi color overprint can be done on the machine.
High productivity, production capacity equal to six sets of semi-automatic screen printing machine.
Details Images
Product Paramenters
|
Model
|
|
LTA-6080
|
LTA-7060
|
|
Print Area
|
mm
|
600*800
|
700*600
|
|
Print speed
|
t/h
|
0-2500
|
0-2500
|
|
mm
|
900*1200
|
1000*1000
|
|
|
Max.Paper Width
|
mm
|
620
|
720
|
|
Air Source
|
mpa
|
0.4-0.6
|
0.4-0.6
|
|
Power
|
V/W/A
|
220v 3KW 15A
|
220v 3KW 15A
|
|
Frame Regulating variable
|
mm
|
60
|
60
|
|
Printing material thickness
|
mm
|
0.02-0.5
|
0.05-0.5
|
|
Weight
|
kg
|
1000
|
1000
|
|
Machine size
|
mm(L*W*H)
|
3150*1260*1650
|
2950*1360*1650
|
Function for option
All the Machine unit has reverse models,You can choose right-left ,or left to right .
ONe set or Multi set UV dryer for option
