Quick Details
-
Model Number:
-
1
-
Name:
-
digital rs485 portable ultrasonic water liquid flow meter dn 32 to 500
-
Linearity:
-
0.5%
-
Repeatability:
-
0.2%
-
Velocity range:
-
0~±30m/s
-
Measurement accuracy:
-
better than ±1%
-
Power consumption:
-
1.5W
-
Pipe size:
-
DN15-6000
-
Charging Intelligent charging:
-
with AC 220V
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Atech
-
Model Number:
-
1
-
Name:
-
digital rs485 portable ultrasonic water liquid flow meter dn 32 to 500
-
Linearity:
-
0.5%
-
Repeatability:
-
0.2%
-
Velocity range:
-
0~±30m/s
-
Measurement accuracy:
-
better than ±1%
-
Power consumption:
-
1.5W
-
Pipe size:
-
DN15-6000
-
Charging Intelligent charging:
-
with AC 220V

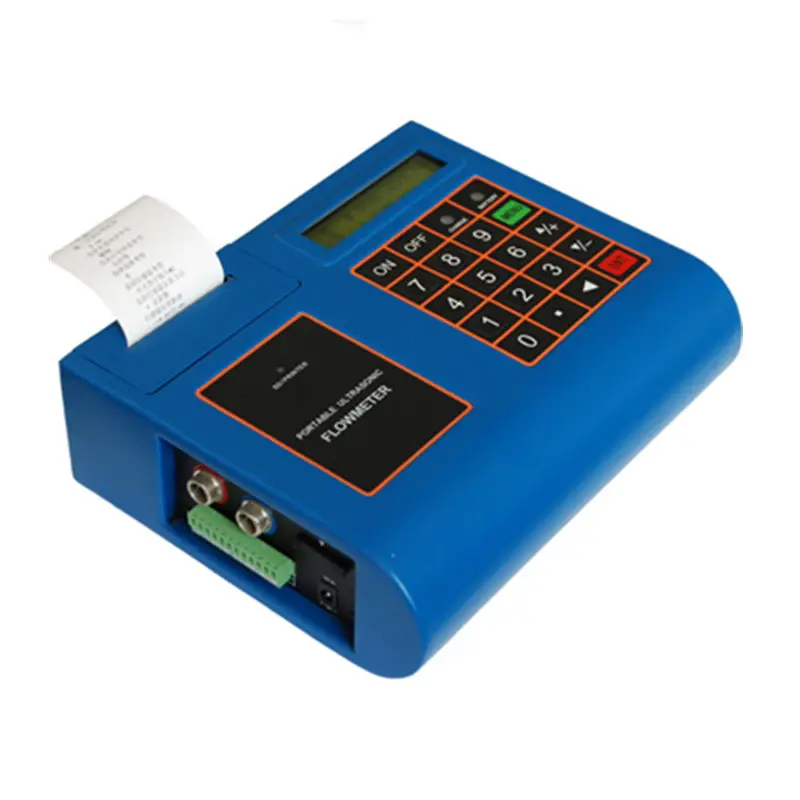

The 2000P portable ultrasonic flowmeter is designed to improve the convenience of flow measurement. It only needs to install the sensor on the outer wall of the pipeline to complete the flow measurement. It is widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery and other industries. It can be used for production monitoring, flow comparison, temporary detection, flow inspection, and it is a tool for flow detection. The built-in printer can realize real-time screen printing, or print more than 20 measurement results set in advance. External 2G SD memory card is convenient for data storage and processing.
Detailed Images digital rs485 portable ultrasonic water liquid flow meter dn 32 to 500
Specification digital rs485 portable ultrasonic water liquid flow meter dn 32 to 500
|
Items |
Specifications |
|
Main unit |
2 line x 20 character LCD with back light Working temperature: -25--60℃ |
|
Mini thermal printer with 24 line character output |
|
|
4x4+2 pushbutton keypad |
|
|
RS-485 interface for downloading upgrade software |
|
|
Transducer options |
TS-2: small size transducer (magnetic) for pipe size: DN15-100mm |
|
TM-1:medium size transducer (magnetic) for pipe size: DN50-700mm |
|
|
TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm |
|
|
Liquid types |
Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave. |
|
Flow velocity range |
0simplusmn30m/s |
|
Accuracy |
Better than plusmn1% |
|
Power Supply |
Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V |
|
Power Consumption |
1.5W |
|
Charging |
Intelligent charging with AC 220V |
|
Weight |
Net weight: 2.5kg (main unit) |
|
Remarks |
With a high strength carrying case suitable for normal and harsh environment |
Optional flow sensor:
|
Sensor model |
Picture |
Measuring Range(mm) |
Temperature Range (ºC) |
|
TS-2
|
|
DN15~100 |
-40~90 |
|
TM-1
|
|
DN50~700 |
-40~90 |
|
TL-1
|
|
DN300~6000 |
-40~90 |
|
TS-2-HT
|
|
DN15~100 |
-40~160 |
|
TM-1-HT
|
|
DN50~1000 |
-40~160 |
|
TL-1-HT
|
|
DN300~6000 |
-40~160 |
|
HS
|
|
DN15~100 |
-40~90 |
|
HM
|
|
DN50~300 |
-40~90 |
|
HS-HT
|
|
DN15~100 |
-40~160 |
|
HM-H
|
|
DN50~300 |
-40~160 |
|
EB-1
|
|
DN300~700 |
-40~90 |
|
EB-1-HT
|
|
DN300~700 |
-40~160 |
Clamp sensor : with a powerful magnet, when measuring steel pipes and cast iron pipes, you only need to attach the sensor to the outer casing of the pipeline. The upper cover of the sensor is marked with the emission direction of the ultrasonic signal
Bracket sensor: The fixing device and the slideway are made of all aluminum, which is light in weight and strong in structure. It has a metric ruler to improve installation accuracy and convenience
