1. Lead Wire Length
2. Probe length
3. probe diameter
4.Thread or Flange connection size
5.Drawing or Sample required for special configuration
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
stainless steel
-
Color:
-
custom
-
Type:
-
custom, WRN/WRF
-
Grade:
-
J/K type
-
Application:
-
High temperature furnace
-
Conductor Material:
-
Iron-Constantan/NiCr-NiAl(Si)
-
Probe length:
-
50-1000mm
-
Sheath material:
-
s.steel
-
probe:
-
1.0mm or 1.5mm
-
Extension wire:
-
kapton or .steel
-
Temperature range:
-
0-600c/0-1200c
-
wire length:
-
1.5/2m
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOPRIGHT
-
Model Number:
-
K type
-
Material:
-
stainless steel
-
Color:
-
custom
-
Type:
-
custom, WRN/WRF
-
Grade:
-
J/K type
-
Application:
-
High temperature furnace
-
Conductor Material:
-
Iron-Constantan/NiCr-NiAl(Si)
-
Probe length:
-
50-1000mm
-
Sheath material:
-
s.steel
-
probe:
-
1.0mm or 1.5mm
-
Extension wire:
-
kapton or .steel
-
Temperature range:
-
0-600c/0-1200c
-
wire length:
-
1.5/2m
Product Description

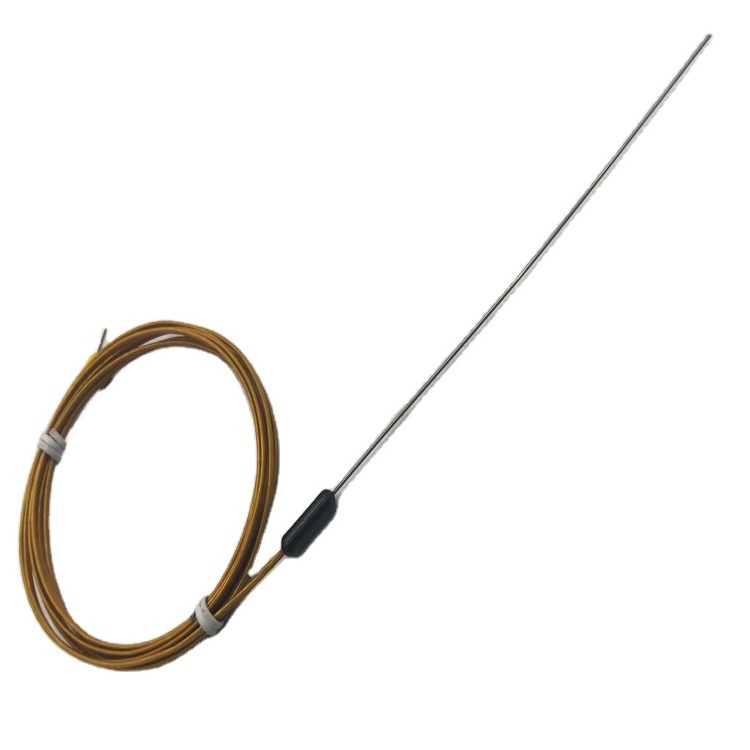

Topright Brand Thermocouple Description
Thermocouple is a commonly used temperature measuring component in a temperature measuring instrument.
By measuring the temperature and converting the temperature signal into a thermoelectromotive force signal, it is converted into the temperature of the measured medium by the secondary meter. It is generally suitable for measuring the surface temperature of gases, liquids and solids in the temperature range of -200 to 1600 °C.
Due to different processes, it is usually divided into two types: armored thermocouple (WRK*) and assembled thermocouple (WR*).
Also, due to the difference in temperature sensing materials, the indexing numbers are classified as K, N, E, J, and T.
Due to different processes, it is usually divided into two types: armored thermocouple (WRK*) and assembled thermocouple (WR*).
Also, due to the difference in temperature sensing materials, the indexing numbers are classified as K, N, E, J, and T.
Detailed Images
Product Paramenters
|
Product
|
CONDUCTOR MATERIAL
|
TYPE
|
GRADUATION
|
USE TEMPERATURE (SHORT TIME)
|
USE TEMPERATURE
|
|
|
PtRh30-Ptrh6
|
WRR
|
B
|
0-1800°C
|
0-1600°C
|
|
THERMOCOUPLE
|
PtRh10-Pt
|
WRP
|
S
|
0-1600°C
|
0-1300°C
|
|
|
PtRh13-pT
|
WRB
|
R
|
0-1600°C
|
0-1300°C
|
|
|
NiCrSi-NiSi
|
WRM
|
N
|
0-1000°C
|
0-1000°C
|
|
|
NiCr-NiAl(Si)
|
WRN
|
K
|
0-1200°C
|
0-900°C
|
|
|
NrCr-constantan
|
WRE
|
E
|
0-700°C
|
0-600°C
|
|
|
Iron- Constantan
|
WRF
|
J
|
0-600°C
|
0-500°C
|
|
|
Copper-Constantan
|
WRF
|
T
|
0-400°C
|
0-350°C
|
|
THERMAL RESISTANCE
|
Copper heat
|
|
CU50
|
|
-50-150°C
|
|
THERMAL RESISTANCE
|
|
|
CU100
|
|
-50-150°C
|
|
|
|
|
PT100
|
|
-200-600°C
|
Reference Data
