Quzhou Zhongdu Machinery Technology Co.,Ltd is industry and trade company which modern enterprise integrating scientific research, development, manufacture and trading. Based on integrity, responsibility and cooperation.
Our company have professional R&D and sales team, providing one-stop service for customers.Our company mainly products is screw Air Compressor , Piston Air Compressor,Drill Machine, Drill Rig Parts ,Jack Hammer , Boring Machine, Tunnel Shotcreting Machine and Other Machinery Hardware Product etc.After many years of production and research and development, we have obtained more than 20 national patents. The products are sold at home and abroad and are well received by customers.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
6200*2200*2900mm
-
Weight:
-
1300 KG
-
Drilling Diameter:
-
140-400mm
-
Drilling Depth:
-
Max.800m
-
Hole diameter:
-
140-400mm
-
Drilling depth:
-
800m
-
Walking speed:
-
2.5km/h
-
Climbing angles(Max.):
-
30
-
Work pressure:
-
1.7-3.5Mpa
-
Air consumption:
-
17-42m3/min
-
Rotational torque:
-
8850-13150N.m
-
Rotational speed:
-
55-120rpm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Voltage:
-
Diesel Engine Driven
-
Dimension(L*W*H):
-
6200*2200*2900mm
-
Weight:
-
1300 KG
-
Drilling Diameter:
-
140-400mm
-
Drilling Depth:
-
Max.800m
-
Hole diameter:
-
140-400mm
-
Drilling depth:
-
800m
-
Walking speed:
-
2.5km/h
-
Climbing angles(Max.):
-
30
-
Work pressure:
-
1.7-3.5Mpa
-
Air consumption:
-
17-42m3/min
-
Rotational torque:
-
8850-13150N.m
-
Rotational speed:
-
55-120rpm
Product Application

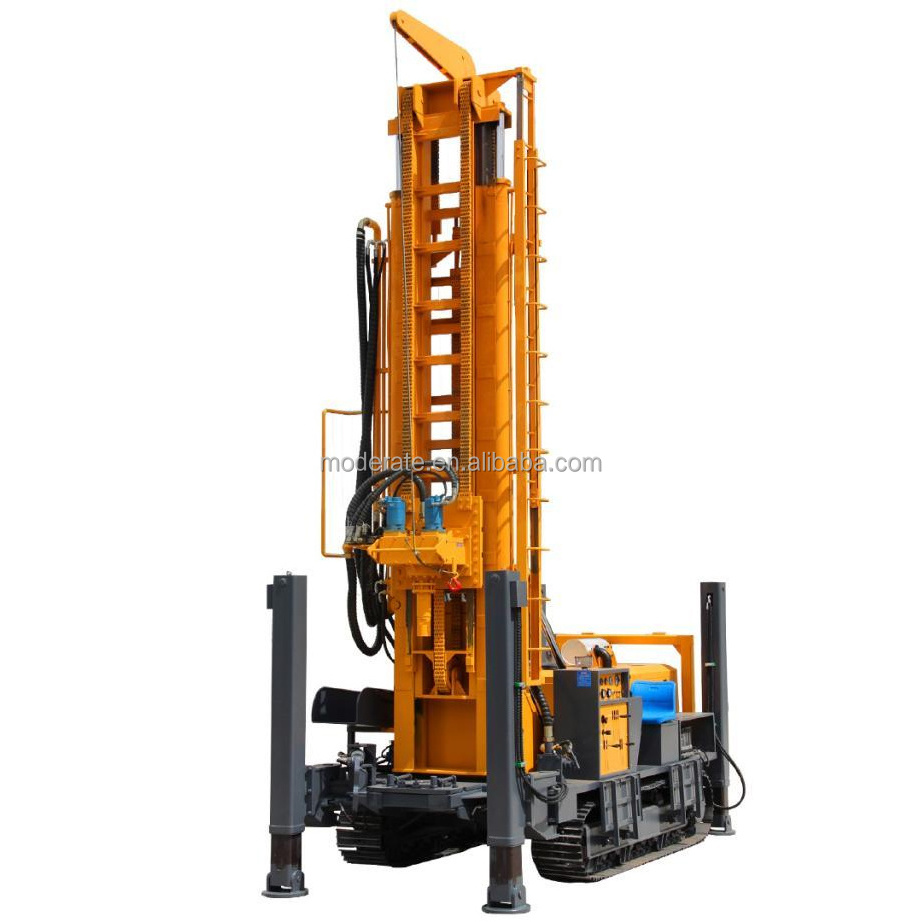

Hot Selling High Efficiency Ground Drilling Machines Mine Crawler Water Well Drilling Rig
FY multifunctional hydraulic well drilling rig series mainly applied to industrial and civil drilling and geotemperature drilling. It has the advantages of large diameter of drilling hole, deep drilling, fast footage, and high efficiency.
|
SPECIFICATIONS FOR ZD-FY800 CRAWLER HYDRAULIC WELL DRILLING RIG
|
|
|
|
|||
|
The weight(T)
|
13
|
Equipped capacitor(Kw)
|
140
|
|||
|
Rig lifting force(T)
|
30
|
Drill pipe diameter(mm)
|
Φ102 Φ108 Φ114
|
|||
|
The hole diameter(mm)
|
140-400
|
Drill pipe length(m)
|
1.5 2.0 3.0 6.0
|
|||
|
Drilling depth(m)
|
800
|
Swing speed(rpm)
|
55-120
|
|||
|
One-time advance length(m)
|
6.6
|
Swing torque(N.m)
|
8850-13150
|
|||
|
Walking speed(km/h)
|
2.5
|
Using air pressure(Mpa)
|
1.7-3.5
|
|||
|
Climbing angles(Max.)
|
30
|
Air consumption(m³/min)
|
17-42
|
|||
Main Features
1) Engine: adopts the famous brand Guangxi Yuchai 140Kw turbocharged version
2) Crawler Driving Gear: the designed motor with a speed reduction gearbox prolongs the service life
3) Hydraulic oil pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
4) Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs
5) Drill chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement
6) Lifting force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
7) The lift arm is installed with a limiter to protect cylinder and ensure the safety of work
8) Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery online.
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Kaixuan Road ,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
