Quick Details
-
Voltage:
-
380v
-
Warranty:
-
1year
-
jet pulverizer:
-
Hard Materials Diamond Jet Pulverizer
Quick Details
-
Model Number:
-
LNJ
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
LNPE
-
Voltage:
-
380v
-
Warranty:
-
1year
-
jet pulverizer:
-
Hard Materials Diamond Jet Pulverizer

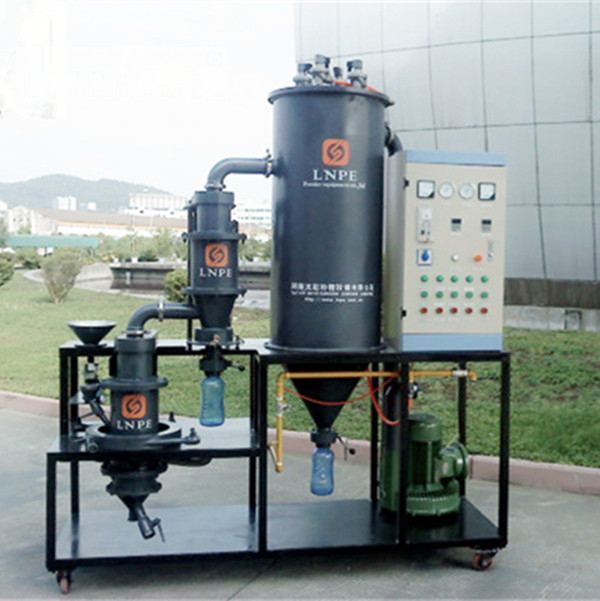

Synthetic Diamond micron powder Pulverizing machine
General
Diamond Dedicated Grinder is specially designed, based on Jet Mill Classifier, according to the physical properties and processing requirements of diamonds: to reduce over-ground powder and improve the rate of finished products.
Features
Diamond Dedicated Grinder adopts the most suitable flow field calculated by our Hydromechanics Numerical Similitude Software. It makes a breakthrough in particle acceleration technology and a great improvement of grinding efficiency, saving energy and reducing over-ground fineness;
1. Inter-particle attrition of materials resulting in little wear and no iron contamination, free of high-cost and cleaning;
2. With total dry processing, better particle size distribution of diamond powder is obtained when one-time processing is finished;
3. Our original External End Face Sealing Technology (patent for invention) obtains greater fineness and avoids oversized particles;
4. Capacity of shaping particles;
5. Multi-use of one machine due to its alterable and compact structure and also can be used as classifier alone;
6. Decreased wear and long service life due to sound flow filed design
7. Fully enclosed way of feeding reduces the loss of materials;
8. Omniseal negative pressure operation, without dust pollution;
9. Easy handling and low noise emission (≤70dBA).
Applicaitons
Super hard materials: diamond, cubic boron nitride (CBN) etc.
Technical Data
|
Model |
Air Flow |
Max Feed Size (mm) |
Product Size (d 50 μm) |
Capacity (kg/h) |
Power (kw) |
|
LN J -6A |
1m ³ /min |
≤ 1 mm |
1-75 µm |
0.2-2 kg/h |
9.5 kw |
|
LN J -1 8 A |
3m ³ /min |
≤5mm |
1-75 µm |
5-15 kg/h |
23.7 kw |
|
LN J - 36 A |
6m ³ /min |
≤5mm |
1-75 µm |
20-80 kg/h |
47.5 kw |
|
LN J - 60 A |
10m ³ /min |
≤5mm |
1-75 µm |
30-150 kg/h |
79 kw |
|
LN J - 120 A |
20m ³ /min |
≤5mm |
1-75 µm |
50-200 kg/h |
1 37 kw |
|
LNJ-240A |
40m ³ /min |
≤5mm |
2-75 µm |
100-500kg/h |
291kw |
Powder shaping
Personalized design to solve the affairs on grinding and classification.
