FOB Reference Price: Get Latest Price
≥5 Pieces
US $9.6
≥100 Pieces
US $8.5
≥1000 Pieces
US $6.9
≥5000 Pieces
US $5.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
GLC
Model Number:
GLC-DC-wifi-001
Operating Temperature:
-20~60
Product Name:
Smart Light Switch
Material:
PC
Max. Power:
5V≤50W 6V≤60W 9V≤90W 12V≤120W 24V≤240W 36V≤360W 48V≤480W
Voltage:
DC5V 6V 9V 12V 24V 36V 48V
Usage:
Door Automation
Keyword:
Home Automation Control System
Application:
Tuya App
Function:
Smart Home Wireless Remote Control Switch
Certification:
CE
Frequency:
433.92MHZ +2.4GHz WIFI

Quick Details

Max. Current:
10A
Max. Voltage:
DC5V 6V 9V 12V 24V 48V
Customized support:
logo
Place of Origin:
Guangdong, China
Brand Name:
GLC
Model Number:
GLC-DC-wifi-001
Operating Temperature:
-20~60
Product Name:
Smart Light Switch
Material:
PC
Max. Power:
5V≤50W 6V≤60W 9V≤90W 12V≤120W 24V≤240W 36V≤360W 48V≤480W
Voltage:
DC5V 6V 9V 12V 24V 36V 48V
Usage:
Door Automation
Keyword:
Home Automation Control System
Application:
Tuya App
Function:
Smart Home Wireless Remote Control Switch
Certification:
CE
Frequency:
433.92MHZ +2.4GHz WIFI
Product Paramenters
Key word
rf + wifi switch
Working voltage
DC 5V 6V 9V 12V 24V 36V 48V
Product Size
42*31*24mm
Current
10A
APP
Tuya
RF working frequency
433Mhz
RF mode of operation
self-lock      interlock  Inching    Manual on/off
Scope of application
door access    lamps   motors  etc.
voltage
5v
6v
9v
12v
24v
36v
48v
Load power
50W
60W
90W
120W
240W
360W
480W
Details Images
Product collocation

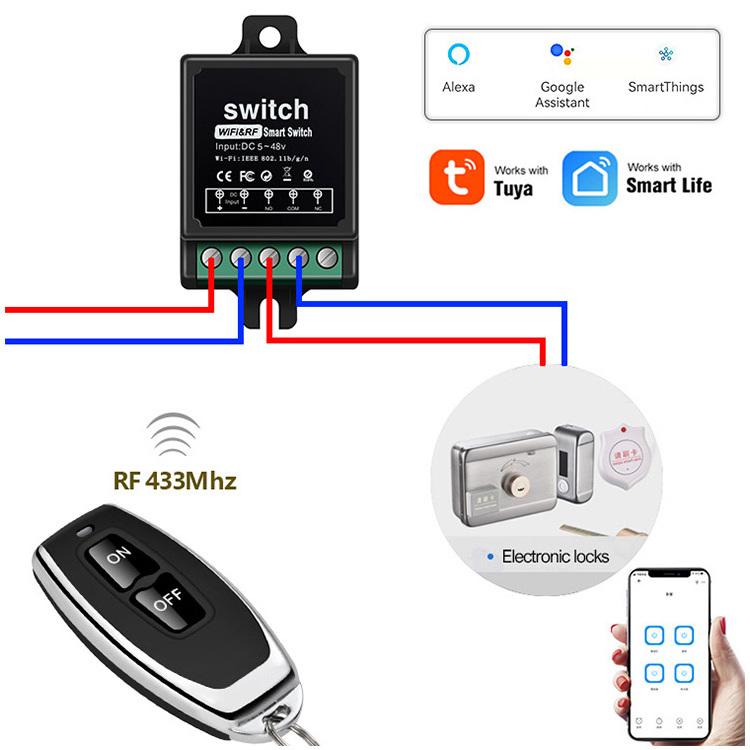

Wiring Instructions
Pairing settings
Introduction to working mode:
Self-locking mode: control with a button, press once to turn on, press again to turn off, it is called self-locking.
Interlock mode: When the remote control has two buttons, one button is on and the other button is off, which is called interlocking. Inching mode: Use a key control, press and hold the remote control button, the relay is closed; release the remote control button, the relay is disconnected; it is called inching mode.
Manual switch: no remote control required, press the learning button on the receiver to control on and off, press once to open, then press to close.
Pairing Method:
Inching mode: controller is powered on,press the learn button 2 times in a row,indicator light is on,then press the ON or OFF button on the remote control panel,the indicator light turns off after flashing 3 times,indicates pairing is complete. self-locking mode: controller is powered on,press the learn button 3 times in a row,indicator light is on,then press the ON or OFF key on the remote control panel,the indicator light flashes 3 times and then goes out,indicates pairing is complete. Interlocking Mode: controller is powered on,press the learn button 4 times in a row,indicator light is on,press the ON button of the remote control,the indicator light flashes 3 times and then stays on,press the OFF key again,the indicator light flashes 3 times and then goes out,indicates successful pairing.
Clear code :controller is powered on,press the learn button 8 times in a row,the indicator light flashes first, then goes
off,indicates that the clear encoding is successful.
Notice: Each controller can be paired with up to 10 buttons,Each button can only correspond to one state,If you have already matched the code, you need to clear the code first, and then re-code.
