Quick Details
-
Model Number:
-
CCOREL250
-
Application:
-
Water quality monitor
-
Feature:
-
Easy Install
-
Material:
-
ABS+UV
-
Accessories:
-
Dosing Pumps,sensor
-
Voltage:
-
220v 50hz/60hz
-
Numerical Value:
-
PH and ORP
-
Package:
-
Carton Box
-
PH Control:
-
1.0 to 14
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
Pool
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PIKES
-
Model Number:
-
CCOREL250
-
Application:
-
Water quality monitor
-
Feature:
-
Easy Install
-
Material:
-
ABS+UV
-
Accessories:
-
Dosing Pumps,sensor
-
Voltage:
-
220v 50hz/60hz
-
Numerical Value:
-
PH and ORP
-
Package:
-
Carton Box
-
PH Control:
-
1.0 to 14
-
Warranty:
-
1 Year

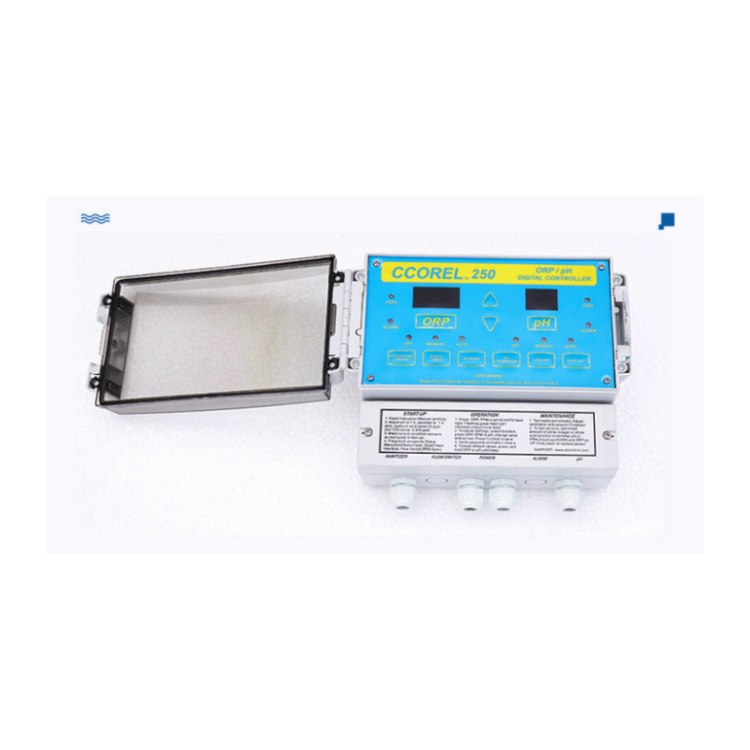

Automatic Swimming Pool Water Quality Monitor Measurement PH / ORP Sensor Analyzer Control System for Spa Pool Water Treatment
Product Description
Advantages
1.Connect controller to timer in parallel with main pump make sure to follow electrical codes.
2.install ORP and ph sensors on recirculation line after filter orbypass line.
3.connect chemical feeders to controller outputs.
|
Technical characteristic
|
|
|
|
OPR Control
|
Adjustable from 0 to 999mv
|
|
|
PH Control
|
Adjustable from 1.0 to 14
|
|
|
ORP Sensor
|
Platinum electrode with 13-ft(4m) cable
|
|
|
PH Sensor
|
Glass electrode with 13-ft(4m) cable
|
|
|
Readouts
|
ORP(3 digits) and ph(2 digits) LEDs
|
|
|
Feed modes
|
Manual, automatic
|
|
|
Adjustments
|
Setpoint, calibration, limits, feed rate
|
|
|
Indicators
|
LEDs for feed mode, feed status, alarms
|
|
|
Safety
|
Audio,visual and remote alarms
|
|
|
|
out-of rang limits and overfeed safety timers
|
|
|
Cabinet
|
Polystyrene 9x7x4in. (22x18x10cm)
|
|
|
Electrical
|
AC 220V/50hz
|
|
|
Plumbing
|
PVC tees for 0.5in,1.5in or 2in line
|
|
|
Warranty
|
1 year on electronic module
|
|
|
Shipping
|
12x12x12-n(30x30x30cm) carton
|
|
|
|
9lbs(4kg) without pumps
|
|
