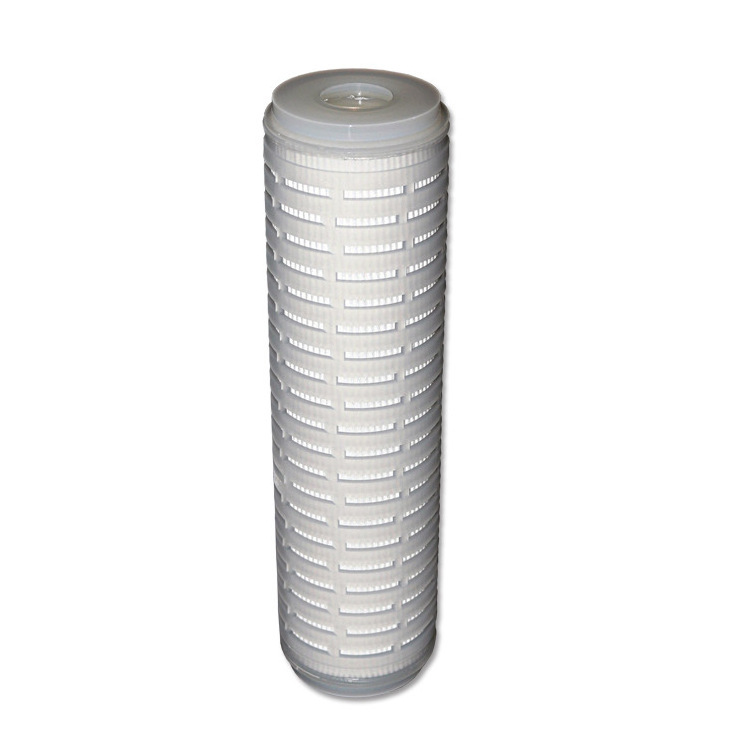

High Quality Factory Price 5'' 10'' 20'' inch PP Pleated Filter Cartridge Water Filter Element Pleated Cartridge for Soft Drink

High Quality Factory Price 5'' 10'' 20'' inch PP Pleated Filter Cartridge Water Filter Element Pleated Cartridge for Soft Drink

FOB Reference Price: Get Latest Price

≥2 Pieces

US $3.53

≥25 Pieces

US $3.24

≥100 Pieces

US $2.94

≥500 Pieces

US $2.35

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power Source:: Manual

Place of Origin:: Guangdong, China

Brand Name:: OEM

Product name:: PP Pleated Filter Cartridge

Material:: 100% polypropylene

Micron rate:: 0.1-60um

Use:: Water Filtration

Length:: 5"10"20"30"40"

Function:: Removes Bacteria

Service life:: 1-3 Months

Filter material:: Polypropylene Filter Medium

OEM:: Availabe

Quick Details

After-sales Service Provided:: Free spare parts

Warranty:: None

Application:: Household

Power Source:: Manual

Place of Origin:: Guangdong, China

Brand Name:: OEM

Product name:: PP Pleated Filter Cartridge

Material:: 100% polypropylene

Micron rate:: 0.1-60um

Use:: Water Filtration

Length:: 5"10"20"30"40"

Function:: Removes Bacteria

Service life:: 1-3 Months

Filter material:: Polypropylene Filter Medium

OEM:: Availabe

High Quality Factory Price 5'' 10'' 20'' inch PP Pleated Filter Cartridge Water Filter Element Pleated Cartridge for Soft Drink

Products Description

Product Name	PP Pleated Filter Cartridge
Material	PP Cotton
Function	Removes Bacteria
Size	5"/10"/20"
Micron Rate	Default 0.22 micron (0.1-60 micron precision filter can be customized)
Filter material	Polypropylene Filter Medium
Application	Household Drinking Water Filtration
OEM	Availabe

The main characteristics of the microporous membrane Pleated filter are:

high retention rate, high flow rate, low pressure difference and wide chemical compatibility; The production process adopts unique hot melt welding processing technology, without any adhesive, no foreign matter release. Meet the production requirements of food, beverage, beer, chemical, pharmaceutical and other industries.

Introduction:
polypropylene composite filter membrane (polypropylene) is adopted as the main filtration material. It is an advanced fixed-type deep filter element. The nominal precision of the filter can be from 0.1μm to 60μm. The filter membrane is not affected by the fluctuation of feed pressure. Its unique low pressure difference, high throughput, good filtering accuracy and low economic costs and other advantages, favored by the majority of users.

Features:
⊙ Relative filtration accuracy, retention rate of more than 90%.

⊙ Wide chemical compatibility, large circulation, low pressure difference.

⊙ No media shedding phenomenon, in line with pharmaceutical industry standards.

⊙ Wide range of filtering accuracy to meet various application requirements.

⊙ Using hot melt welding process, firm and no release pollution products.

⊙ Available chemical methods, online steam disinfection and sterilization.

⊙ Can be cleaned and recycled, economical.

Typical Applications:
⊙ Reverse osmosis water system, deionized water system pre-filtration.

⊙ Beverage, wine, mineral water, pure water, edible oil and other filtration

⊙ Chemical solvents, fine chemicals, ink and other filtration.

⊙ Liquid medicine, pharmaceutical, pharmaceutical water filtration.

Other: biological products, plasma, oilfield reinjection water, gas filtration and so on.

Characteristics:
· Excellent chemical compatibility, suitable for filtering strong acids, alkalis and organic solvents

· The filter membrane is folding deep filtration, and the membrane filtration area is large

· Low pressure difference, strong contaminant capacity, long service life

· Wide filtering accuracy to choose from

Polypropylene microporous membrane filter element

Polypropylene filter element is a kind of fixed pore deep filter element with ultrafine polypropylene fiber filter material as the filter medium, and the filter material meets the relevant requirements of FDA. Filter accuracy norm range from 0.1um to 60um, its unique low pressure difference, high circulation, long service life characteristics, is the first choice for pre-filtration products. The whole polypropylene structure has stable performance and extensive chemical compatibility.

Specifications and Technical Parameters:
Filter medium: polypropylene fiber membrane

Upper and lower support material: polypropylene

Support frame and structural elements: polypropylene

Filtration accuracy : 0.1, 0.22, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 30, 60 (um)

Filter length : 5", 10", 20", 30", 40"
Sealing material: silicone rubber, butadiene rubber, EPDM rubber, fluorine rubber

Sealing mode: hot melt welding

Effective filtration area : 0.4~ 0.7m /10"

Filter diameter: 69.0mm

Maximum operating temperature : 80℃, 0.28MPa

Maximum positive pressure difference : 0.42MPa(25℃)

Max back pressure difference : 0.28MPa(25℃)

Sterilization condition : 121℃ for 30 min

Typical Application Areas:
Pharmaceutical industry: liquid medicine, cell debris, biological products and other filtration.

Chemical industry: organic solvents, chemical reagents, ink, plating solution and other filtration.

Food industry: drinking water, mineral water, beverages, beer, wine, fruit wine and other filtration.

Electronics industry: reverse osmosis water system pre-filtration, deionized water system pre-filtration.

Gas filtration: compressed air, nitrogen, carbon dioxide and other filtration.

Other industries: photoresist, magnetic media and other filtration.

Pure water flow reference table :10" filter element initial value L/min(△P=0.01MPa, 1 centipoise viscosity, 25℃)
