Quick Details
-
Mounting Type:
-
pin
-
Description:
-
piezo buzzer
-
Model No.:
-
BPC43M-1229
-
Dimension:
-
D 43.0
-
Rated Voltage:
-
12 VDC
-
Operating Voltage:
-
6~28VDC
-
Rated Current:
-
Max.30mA at 12VDC
-
Sound Output:
-
Min. 95dB at 12VDC,10cm
-
Resonant Frequency:
-
2.9±0.5KHz
-
Tone:
-
Continuous
-
Operating Temperature:
-
-20℃~+80℃
-
Store Temperature:
-
-30℃~+70℃
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TAT
-
Model Number:
-
BPC43M-1229
-
Mounting Type:
-
pin
-
Description:
-
piezo buzzer
-
Model No.:
-
BPC43M-1229
-
Dimension:
-
D 43.0
-
Rated Voltage:
-
12 VDC
-
Operating Voltage:
-
6~28VDC
-
Rated Current:
-
Max.30mA at 12VDC
-
Sound Output:
-
Min. 95dB at 12VDC,10cm
-
Resonant Frequency:
-
2.9±0.5KHz
-
Tone:
-
Continuous
-
Operating Temperature:
-
-20℃~+80℃
-
Store Temperature:
-
-30℃~+70℃

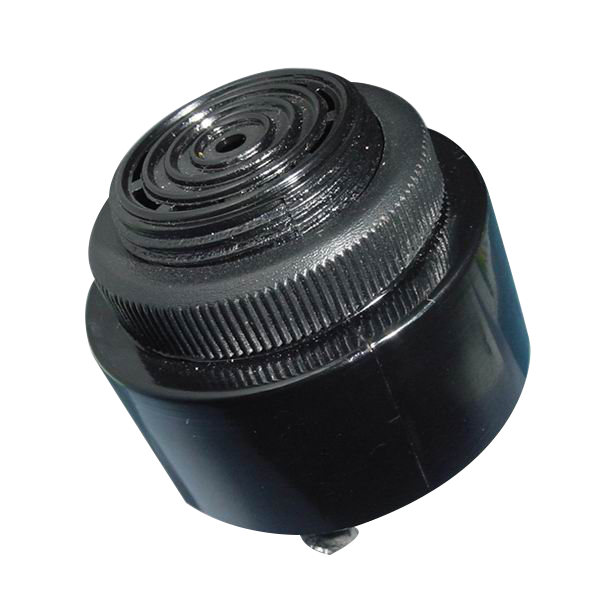

Piezo buzzer active waterproof type 4333 DC 12V 24V 95dB pulse continuous tone piezo buzzer
Our factory
1.Could we get samples firstly ?
Yes , we could send you free samples for approval firstly for testing .
2.Can customize,modify and develop products according to the design drawing?
Yes ,we provide OEM service and can customize products according to the drawing.
3.What about delivery time?
Sample, We will send to you within 3 days after payment received.
Production for big quantity needs 7 to 15 days. Andit also depends on product and quantity.
4.What about terms of payment?
Payment terms: T/T, west Union Paypal and L/C etc.
5.How you will send the goods to us?
We will send the goods to you by DHL,FEDEX,U
PS, EMS,AIR etc.
