- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TDER
-
Fork Length:
-
1200mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
5730*2390*2170mm
-
Weight (KG):
-
4000 kg
-
Product Name:
-

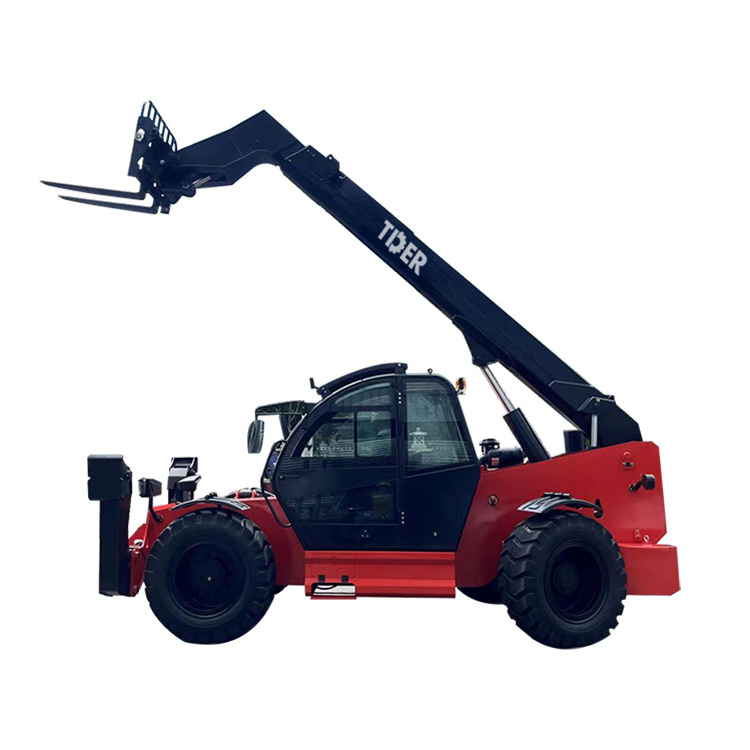

3ton telehandler telescopic boom forklift
-
Engine:
-
Chinese Engine
-
Rated load:
-
4000kg
-
wheel base:
-
2700mm
-
Max. horizontal reach:
-
2090mm
-
Load Center:
-
500mm
-
Min. Turning radius:
-
6200mm
-
Ground clearance:
-
400mm
Quick Details
-
Min. Lifting Height:
-
7000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TDER
-
Fork Length:
-
1200mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
5730*2390*2170mm
-
Weight (KG):
-
4000 kg
-
Product Name:
-
3ton telehandler telescopic boom forklift
-
Engine:
-
Chinese Engine
-
Rated load:
-
4000kg
-
wheel base:
-
2700mm
-
Max. horizontal reach:
-
2090mm
-
Load Center:
-
500mm
-
Min. Turning radius:
-
6200mm
-
Ground clearance:
-
400mm
Product Paramenters
|
Model
|
|
Unit
|
FT40
|
|
|
Rated load
|
|
kg
|
4000
|
|
|
Load center
|
|
mm
|
500
|
|
|
Max. Lifting height
|
|
mm
|
7000
|
|
|
Min. Ground clearance
|
|
mm
|
400
|
|
|
Min. Turning radius
( outer tyre center ) |
|
mm
|
6200
|
|
|
Boom frame upward angle
|
|
°
|
60
|
|
|
Boom frame downward angle
|
|
°
|
11
|
|
|
Length (with fork)
|
|
mm
|
5730
|
|
|
Width
|
|
mm
|
2390
|
|
|
Wheel base
|
|
mm
|
2700
|
|
|
Tyre
|
Front（2 pcs）
|
-
|
16/70-24
|
|
|
|
Rear（2 pcs）
|
-
|
10.00 -20-16
|
|
Product Details
1. It can realize the functions that the gantry forklift can complete, greatly save the cost of use, save time, manpower, fuel and space.
2. Optional fully enclosed cab, visible sunroof, wide field of vision. Reversible cab for quick access to all major components.
3. The pilot control is adopted, the control is lighter, and the driving fatigue is reduced.
4. The shelf can be tilted at a large angle, and the goods can be quickly loaded and unloaded.
5. Adopt electro-hydraulic control gear control system. Shifting is simple and convenient, reducing labor intensity and improving work efficiency.
6. Optimize the design of the heat dissipation channel to effectively improve the thermal balance performance.
7. Reinforced boom, high-quality lifting cylinder to achieve rapid lifting and telescopic.
Product packaging
*All products will be strictly tested before shipping.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing forklifts.
*We also offer wooden packing way to make the forklifts safer.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
*Ropes and triangle blocks will be used for fixing forklifts.
*We also offer wooden packing way to make the forklifts safer.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certificates
Our Factory
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions
certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided.
Attachments
TDER provides a variety of forklift attachments, such as paper roll clamp, soft bale clamp, rotator, push pull and so on. You can also send us a request to customize your own attachments.
Spare Parts
Why Choose Us
TDER offers customized services.
You can freely change the color, engine, LOGO and more.
"TDER makes every mechanical gear customizable."
