Quick Details
-
Max. Loading Capacity:
-
3000L
-
Weight (KG):
-
1800 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONE
-
Voltage:
-
220-480V/50-60Hz 3phase Customize
-
Dimension(L*W*H):
-
3100*2000*2750mm
-
Power (kW):
-
65 kW
-
Product name:
-
HONE 3000L fixed type customized vacuum emulsifying mixer
-
Machine Type:
-
Fixed-Type
-
Function:
-
Mixing Raw Material
-
Heating method:
-
jacket Electric Steam Heating
-
Stirrer type:
-
Wall Scraper Mixer
-
Homogenizer:
-
Frequency Inverter
-
Control:
-
Button
-
Jacket:
-
3 Layers
-
Discharge:
-
Bottom Discharge/Positive Pressure Discharge
Quick Details
-
Barrel Volume (L):
-
3000
-
Max. Loading Volume (L):
-
3000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 65 r.p.m
-
Max. Loading Capacity:
-
3000L
-
Weight (KG):
-
1800 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONE
-
Voltage:
-
220-480V/50-60Hz 3phase Customize
-
Dimension(L*W*H):
-
3100*2000*2750mm
-
Power (kW):
-
65 kW
-
Product name:
-
HONE 3000L fixed type customized vacuum emulsifying mixer
-
Machine Type:
-
Fixed-Type
-
Function:
-
Mixing Raw Material
-
Heating method:
-
jacket Electric Steam Heating
-
Stirrer type:
-
Wall Scraper Mixer
-
Homogenizer:
-
Frequency Inverter
-
Control:
-
Button
-
Jacket:
-
3 Layers
-
Discharge:
-
Bottom Discharge/Positive Pressure Discharge
Related Products
Product Description

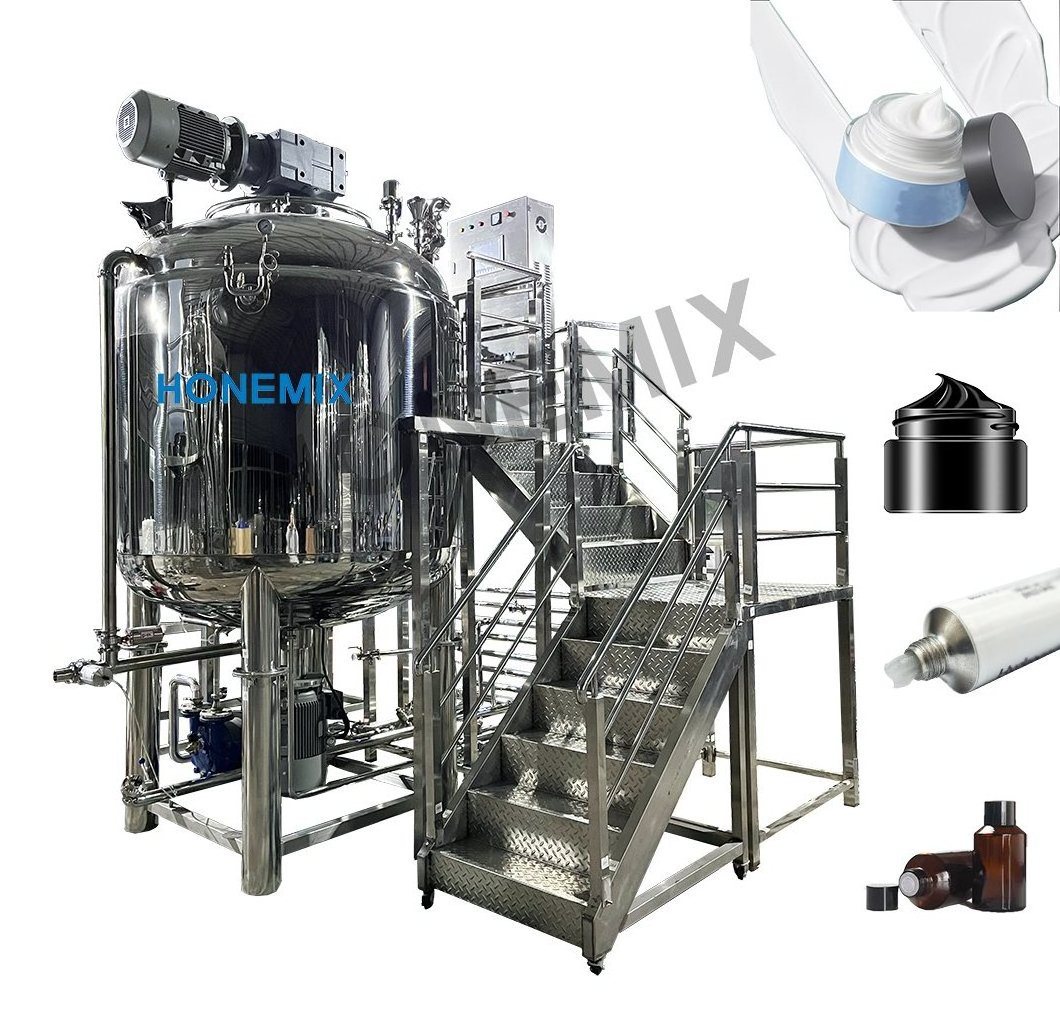

HONE 3000L Butter Cream Stainless Steel Fixed Lid Vacuum Mixing Tank With Homogenizer Custom Horizontal Mixing Motor
Detailed Images
This Fixed-type vacuum emulsifying mixer combination CUSTOMIZED for our customer, Vacuum system, Bottom discharge system, Mixing system, Homogenizer system and Jacket steam heating/cooling system, meet GMP standard.
All those functions work together to produce batches of good cosmetics products.
Fixed Lid
Man-Hole
Material suction inlet
Material suction inlet
Vacuum presssure gauge
Vacuum port, Vent filter
Positive pressure inlet
Perfume hopper
CIP spray ball
LED Light, Sight window
Vacuum port, Vent filter
Positive pressure inlet
Perfume hopper
CIP spray ball
LED Light, Sight window
Wall Scrapper Mixer & Homogenizer
SUS316L Frame wall scrapper mixer with
PTFE scraper
45degree blades on opposite angles to make sure mixture complete
Siemens motor drive
0-65rpm with variable speed control for mixer
Siemens motor drive
0-65rpm with variable speed control for mixer
0-3600rpm with variable speed control for homogenizer
※ TWO WAYS wall scrapper mixer (OPTION)
※ TWO WAYS wall scrapper mixer (OPTION)
Discharge Port
SUS316L
Discharge/Drain port with ball valve
GMPSFI standards
※
Pipes and Fittings Connection (OPTION)
Electric Cabinet
3 Phase power indication,
Voltmeter,
SIEMENS Touch screen control system
