Quick Details
-
Voltage:
-
220/380/420 Three-phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Model Number:
-
DSH-26C
-
Dimensions(L*W*H):
-
190x160x180CM
-
Weight:
-
1276 KG
-
Platen Size:
-
420*1200mm
-
Product name:
-
roll heat press machine
-
Keywords:
-
roll to roll heat press machine
-
Name:
-
roller sublimation heat press machine
-
Roller Width:
-
420mm
-
Roller Diameter:
-
1200mm
-
Power(KW):
-
18
-
Voltage(V):
-
220/380/420 Three-phase
-
Temp Range(°C):
-
0-399
-
Drum Surface:
-
Chrome:High hardness and abrasion performance
-
Blanket Material:
-
High Temperature Resistance
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Roll to roll printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220/380/420 Three-phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Model Number:
-
DSH-26C
-
Dimensions(L*W*H):
-
190x160x180CM
-
Weight:
-
1276 KG
-
Platen Size:
-
420*1200mm
-
Product name:
-
roll heat press machine
-
Keywords:
-
roll to roll heat press machine
-
Name:
-
roller sublimation heat press machine
-
Roller Width:
-
420mm
-
Roller Diameter:
-
1200mm
-
Power(KW):
-
18
-
Voltage(V):
-
220/380/420 Three-phase
-
Temp Range(°C):
-
0-399
-
Drum Surface:
-
Chrome:High hardness and abrasion performance
-
Blanket Material:
-
High Temperature Resistance
Product Description
Specification
1.The 100% roller drum round seamless pipe, precision machining, cylindrical roller precision grinder, ensure each drum thickness line.
2.drum cylindrical plating, to ensure uniform temperature transfer, no color.
3.advanced technology for our Heat transfer machine for lanyards.

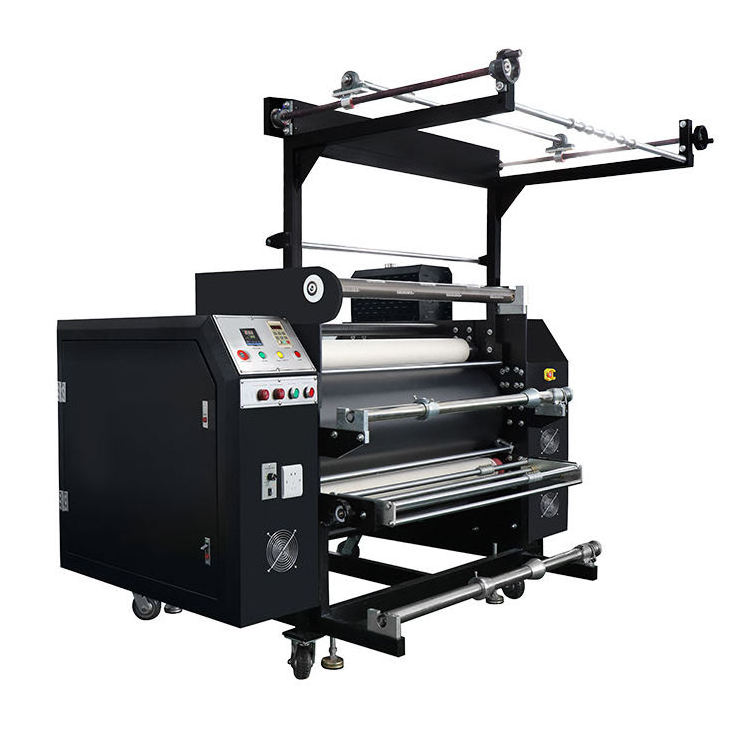

Introduction:
This Sublimation transfer machine can heat transfer print color patterns and words painted with subliming ink and solvent ink on textile fabric such as cotton, hemp and chemical fiber. Floss and sparkle heat printing. And can be used for sublimation transfer printing, good-sized billboard and piece of garment transfer printing.
Specification
|
Printing/Roll Width
|
420MM
|
|
Roller diameter
|
1200MM
|
|
Voltage
|
220/380/420 Three-phase
|
|
Other Voltage
|
Custom voltage by your special order
|
|
Rated output
|
18KW
|
|
Weight
|
1800KG
|
|
Packing Size
|
224*194*170CM
|
|
Feeding Method
|
Top feeding
|
|
Other Size
|
Available
|
|
Air Compressor Required
|
Required
|
|
Blanket Material
|
High Temperature Resistance
|
|
Drum Surface
|
Chrome:High hardness and abrasion performance
|
|
Temperature Range
|
0-399℃
|
|
Note
|
Custom size by your special order
Customized machine to work with different power supplier |
-Power controle
-Warming up button
-Overall power button
-Button--to adjust and operate the machine speed,machine transfer speed- quickly or slowly
-Temperature control instrument--to control and adjust the temperature
-Warming up button
-Overall power button
-Button--to adjust and operate the machine speed,machine transfer speed- quickly or slowly
-Temperature control instrument--to control and adjust the temperature
1. The automatically shut down function provides for saving labor and time to wait for the machine cools down to close it and can avoid the blanket to burn out.
2. With a large master to ensure the blanket back far away from the roller drums to prevent from high temperature to destroy the blanket.
3. The oil temperature heating technology circulates the thermal conductivity of liquid and averagely heating to avoid explosion.
4. The unique function of automatically correct blanket edge allows for more accurate positioning.
5. With power-off protection function, blanket and roller can be individually separated.
6. Chrome plating in the roller, it is wear resistant, anti-sticking and transfer excellent.
7.It can be used for different sizes lanyards.
2. With a large master to ensure the blanket back far away from the roller drums to prevent from high temperature to destroy the blanket.
3. The oil temperature heating technology circulates the thermal conductivity of liquid and averagely heating to avoid explosion.
4. The unique function of automatically correct blanket edge allows for more accurate positioning.
5. With power-off protection function, blanket and roller can be individually separated.
6. Chrome plating in the roller, it is wear resistant, anti-sticking and transfer excellent.
7.It can be used for different sizes lanyards.
