Quick Details
-
Brand Name:
-
DOSSY
-
Model Number:
-
DS5210-M
-
Accuracy Class:
-
0.5 Class
-
Output Voltage:
-
0-220V AC
-
Operating Temperature:
-
-25°C~55°C
-
Dimensions:
-
96x96mm
-
Products:
-
Energy Meters
-
Data update:
-
3 times/second
-
Humidity:
-
≤93%RH,Non-Dewfall
-
Display mode:
-
4 bit digital tube LED display, automatic decimal point shift
-
Display:
-
LCD/LED
-
Insulation strength:
-
Input and auxiliary power supply AC2.5kV,1min
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
Active Energy
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DOSSY
-
Model Number:
-
DS5210-M
-
Accuracy Class:
-
0.5 Class
-
Output Voltage:
-
0-220V AC
-
Operating Temperature:
-
-25°C~55°C
-
Dimensions:
-
96x96mm
-
Products:
-
Energy Meters
-
Data update:
-
3 times/second
-
Humidity:
-
≤93%RH,Non-Dewfall
-
Display mode:
-
4 bit digital tube LED display, automatic decimal point shift
-
Display:
-
LCD/LED
-
Insulation strength:
-
Input and auxiliary power supply AC2.5kV,1min

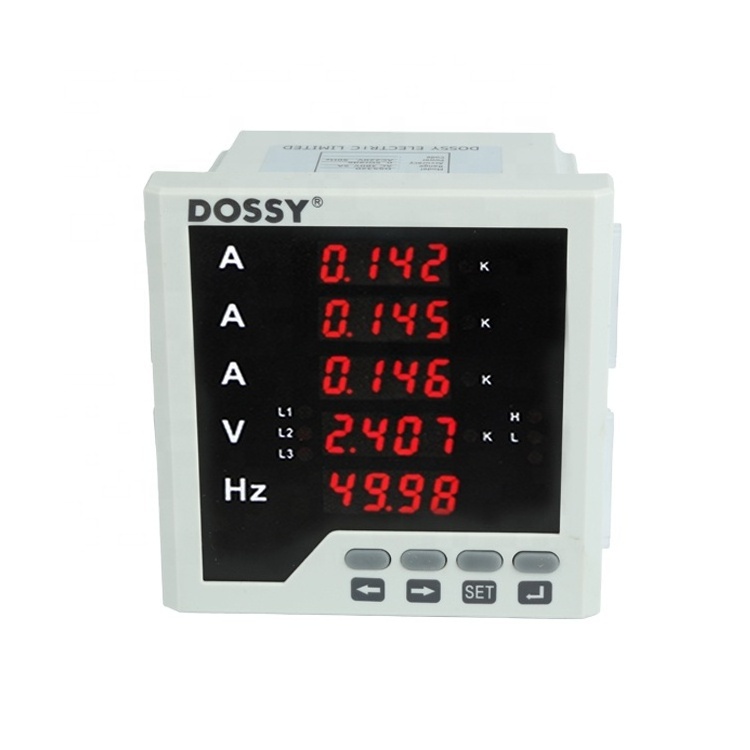

Factory supply electrical meter
Function
- Measure : Three-phase voltage & current & frequency, (V / A / Hz)
- A new generation of programmable intelligent instrument, measurement, alarm, transmitting, communication at an organic whole
- Suitable for replacing pointer meter
- Carries on the real-time measurement and display, overrun alarm output according to the set of measurements, to analog output of measured data, and through the RS - 485 communication interface with PC to realize networking, can be widely used in power monitoring, industrial automation, intelligent power distribution system and so on switchgear.
Feature
- True RMS measurement, high accuracy, can normally measure the distortion waveform
- Programmable ratio, voltage and current can be set freely
- Simple wiring scheme
- High input impedance of the signal input, the input impedance > 2 m Ω
- Perfect input and output protection function, high reliability.
- Modular structure design can facilitate the implementation of output functional configuration
- The product has a lifespan of more than 7 years
|
Model |
Phase |
Display |
Panel(mm) |
Measuring |
RS-485 |
|
DS5210-M |
3 |
LED |
96x96 |
(V / A /Hz) |
No
|
Technical Parameter
|
Electrical feature |
|||
|
Accuracy |
0.5 Class |
||
|
Data update |
3 times/ second |
||
|
Power supply |
AC153-265V,50/60Hz |
||
|
Nominal input
|
AC Voltage |
AC 57.7V,100V,220V,380V,500V |
|
|
AC Current |
AC 1A,5A,0-9999A |
||
|
Allowable Overload |
Continue:1.2 times, Instantaneity:Voltage 2times/5s, Current10times/5sDisplay “HHHH”when exceed the rated value |
||
|
Measuring range |
Phase Voltage |
5-265V AC |
|
|
Line Voltage |
5-440V AC |
||
|
Current |
Standard 0.05-5A , ≥5A need use Current transformer |
||
|
Frequency |
45-65Hz |
||
|
Phase |
3 Phase |
||
|
Display range |
0-9999KV(with transformer) |
||
|
0-9999KA(with X/5 CT) |
|||
|
Display mode |
4 bit digital tube LED display, automatic decimal point shift |
||
|
Environment |
|||
|
Temperature |
Operation:-25~55°C,Storage:-25~50°C |
||
|
Humidity |
≤93%RH,Non-Dewfall ,Non corrosive gas |
||
|
Altitude |
≤2500m |
||
|
Safety Characteristics |
|||
|
Insulation strength |
Input and auxiliary power supply AC2.5kV,1min |
||
|
Insulation Resistance |
>100MΩ |
||
|
Heat resistance and flame retardant |
Terminal:960°C,Case:650°C,actuation duration:30s |
||
|
Electromagnetic Compatibility |
|||
|
Electrostatic discharge immunity |
4 Grade(GB/T17626.2) |
||
|
Electrical fast transient pulse group immunity |
2 Grade(GB/T17626.4) |
||
|
Surge (impact) immunity |
4 Grade(GB/T17626.5) |
||
Model Selection
|
Model |
Phase |
Display |
Panel(mm) |
Measuring |
RS-485 |
|
DS5210-M |
1 |
LED |
96x96 |
(V / A /Hz)
|
No |
