Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
110V/220V/240V/380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOP Y MACHINERY
-
Dimension(L*W*H):
-
(L)1600mm*(W)1260mm*(H)1680mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Packaging Machines and Equipments
-
Interlock::
-
Germany Schmersal
-
Vacuum Generator::
-
PIAB
-
Warranty::
-
24Months
-
Air Cylinders::
-
SMC and Airtac
-
Bag width::
-
80-450mm
-
Bag Length::
-
100-650mm
-
Packing Speed of single machine:
-
5-16 Bags/Min
-
Packing speed of twin machine:
-
5-30bags/min
Quick Details
-
Function:
-
FILLING, Laminating, Sealing, Wrapping, Packing
-
Packaging Type:
-
Bags, Film, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic
-
Weight (KG):
-
300
-
Voltage:
-
110V/220V/240V/380V/415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOP Y MACHINERY
-
Dimension(L*W*H):
-
(L)1600mm*(W)1260mm*(H)1680mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Packaging Machines and Equipments
-
Interlock::
-
Germany Schmersal
-
Vacuum Generator::
-
PIAB
-
Warranty::
-
24Months
-
Air Cylinders::
-
SMC and Airtac
-
Bag width::
-
80-450mm
-
Bag Length::
-
100-650mm
-
Packing Speed of single machine:
-
5-16 Bags/Min
-
Packing speed of twin machine:
-
5-30bags/min
Products Description

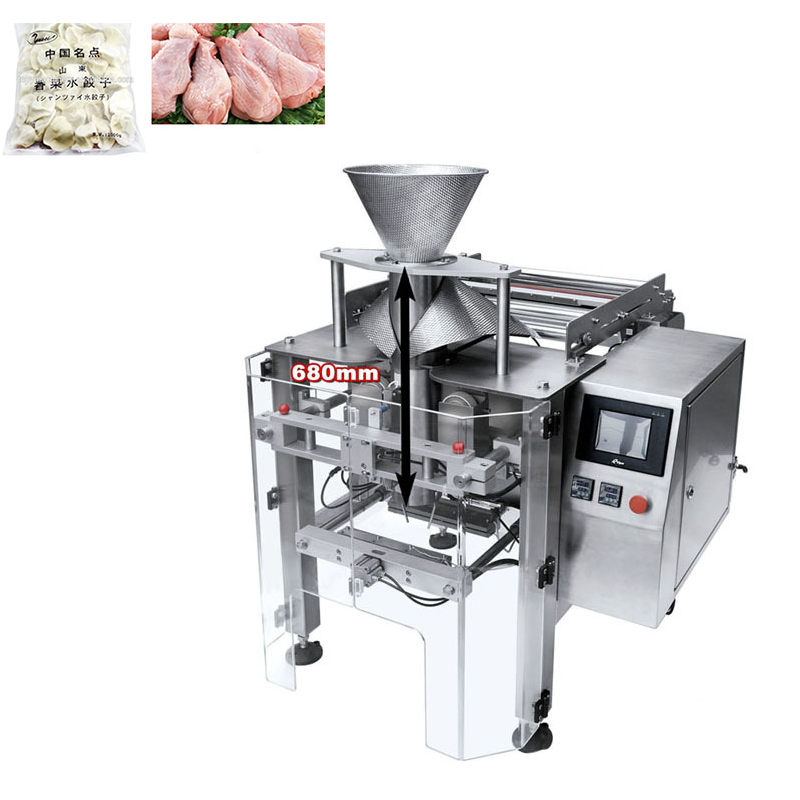

Vffs machine-the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
Vffs machine is suitable for all kinds of the bags made of plastic roll film, such as pillow bag, side gusset bag, quad sealing bag and so on.
Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc
Besides, by connecting with different weighing equipments, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc
Product Paramenters
Function and characteristics:
* PLC controller with touch screen interface
* Servo-driven end seal jaws
* Servo-driven film transport
* Hot printer and film feeding system synchronous
* Quickly changing one-piece bag former
* Eye mark sensor for film tracking
* Stainless steel frame
* Servo-driven end seal jaws
* Servo-driven film transport
* Hot printer and film feeding system synchronous
* Quickly changing one-piece bag former
* Eye mark sensor for film tracking
* Stainless steel frame
|
Specifications
|
|
|
|
|
||||
|
Model. No
|
TOPY-VP420
|
TOPY-VP520
|
TOPY-VP620
|
TOPY-VP800
|
||||
|
Bag Size
|
（L）60-230mm*
（W）60-200mm |
（L）100-300mm*
（W）80-250mm |
（L）100-380mm*
（W）100-300mm |
（L） 50-380mm*
（W）110-400mm |
||||
|
Bag Speed
|
15-60bags/min
|
15-60bags/min
|
15-60bags/min
|
10-30bags/min
|
||||
|
film width
|
140-420mm
|
180-520mm
|
220-620mm
|
340-800mm
|
||||
|
Air Consumption
|
0.6Mps 0.36m3/min
|
0.6Mps 0.36m3/min
|
0.6Mps 0.4m3/min
|
0.6Mps 0.7m3/min
|
||||
|
Powder Supply
|
2.2kw， 220V 50/60HZ
|
3kw， 220V 50/60HZ
|
4kw， 220V 50/60HZ
|
4.5kw， 220V 50/60HZ
|
||||
|
Packed Dimension
|
(L)1430*(W)970*(H)1600mm
|
(L)1550*(W)1160*(H)1480mm
|
(L)1600*(W)1260*(H)1680mm
|
(L)1600*(W)1500*(H)2050mm
|
||||
Packing Solution
The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.
A. Powder Packing Solution
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
