Keeyak has always adhered to the "Quality First" principle. Before each product leaves the factory, we inspect it for quality.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
IVECO
-
WHEELBASE:
-
3310
-
Dimensions:
-
5580*2000*2540
-
Warranty:
-
One Year
-
Transmission:
-
Automatic
-
Color:
-
Optional
-
Engine:
-
4K22D4M
-
Horse Power:
-
118(kw)
-
Chassis brand:
-
IVECO
-
Product name:
-

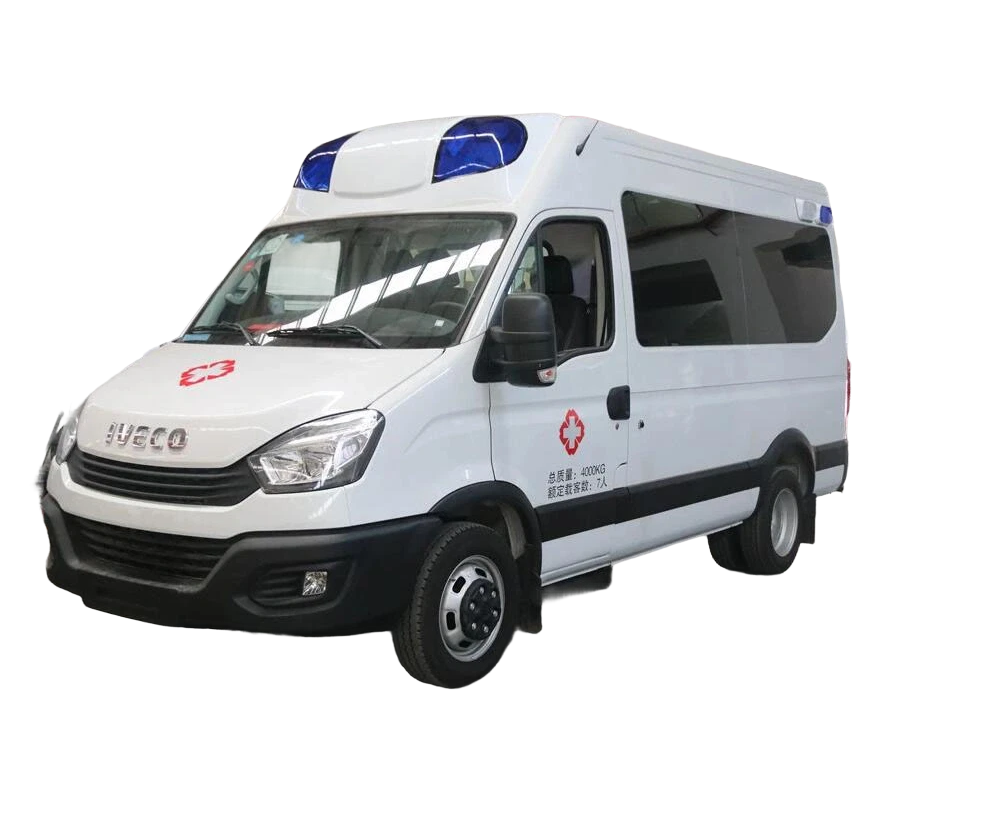

ICU Rescue Ambulance
-
Colour:
-
Optional
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
IVECO
-
WHEELBASE:
-
3310
-
Dimensions:
-
5580*2000*2540
-
Warranty:
-
One Year
-
Transmission:
-
Automatic
-
Color:
-
Optional
-
Engine:
-
4K22D4M
-
Horse Power:
-
118(kw)
-
Chassis brand:
-
IVECO
-
Product name:
-
ICU Rescue Ambulance
-
Colour:
-
Optional
|
Technical Parameters
|
|
|
|
|
|
|||||
|
Technical parameters of truck chassis
|
|
|
|
|
|
|||||
|
A
|
Size and Weight
|
|
|
|
|
|||||
|
|
Wheelbase(mm):
|
|
3310
|
|
|
|||||
|
|
Dimension(mm):
|
|
5580X2000X2540
|
|
|
|||||
|
|
Curb weight(kg):
|
|
2920
|
|
|
|||||
|
|
Engine
|
|
|
|
|
|||||
|
|
Model:
|
|
F1CE34818
|
|
|
|||||
|
|
Fuel type:
|
|
Diesel
|
|
|
|||||
|
|
Displacement(ml)
|
|
2998
|
|
|
|||||
|
|
Emission standard
|
|
Euro V
|
|
|
|||||
|
|
Rate power kw(hp):
|
|
107kw/145HP
|
|
|
|||||
|
|
Transmission system
|
|
|
|
|
|||||
|
|
Manual gear box:
|
|
5 Forwards & 1 reverse
|
|
|
|||||
|
|
Max.Speed(km/h):
|
|
≥120
|
|
|
|||||
|
Standard configuration
|
|
|
|
|
|
|||||
|
B
|
1
|
Anti collision steel beam
|
|
|
|
|||||
|
|
2
|
Center control door lock
|
|
|
|
|||||
|
|
3
|
Leather steering wheel
|
|
|
|
|||||
|
|
4
|
Two set in cabin
|
|
|
|
|||||
|
|
5
|
Air bag
|
|
|
|
|||||
|
|
6
|
Tea table box in cabin
|
|
|
|
|||||
|
|
7
|
Stereo tape recorder+CD
|
|
|
|
|||||
|
|
8
|
Rear mirror
|
|
|
|
|||||
|
Technical parameters of super structure
|
|
|
|
|
|
|||||
|
C
|
Air conditioner and Exhaust system
|
|
|
|
|
|||||
|
|
1
|
Cabin air conditioner
|
|
|
|
|||||
|
|
2
|
Medical warehouse air conditioner
|
|
|
1
|
|||||
|
|
3
|
Bidirectional exhaust fan in medical warehouse
|
|
|
1
|
|||||
|
Disinfection and Light system
|
|
|
|
|
|
|||||
|
D
|
1
|
Medical warehouse daylight lamp(Self bright function in night)
|
|
|
4
|
|||||
|
|
2
|
Ultraviolet disinfection lamp in medical warehouse
|
|
|
1
|
|||||
|
E
|
Center power system
|
|
|
|
|
|||||
|
|
1
|
1000W power inverter system
|
|
|
1
|
|||||
|
|
2
|
12V power socket
|
|
|
2
|
|||||
|
|
3
|
220V power socket
|
|
|
2
|
|||||
|
|
4
|
Integrated control protection system
|
|
|
1
|
|||||
|
|
5
|
AC circuit protection system
|
|
|
1
|
|||||
|
|
6
|
Integrated Switch Control Panel
|
|
|
1
|
|||||
|
|
7
|
Intercom system
|
|
|
1
|
|||||
|
|
Emergency alarm system
|
|
|
|
|
|||||
|
F
|
1
|
Alarm lights controller mounted on cabin
|
|
|
1
|
|||||
|
|
2
|
100W car speakers built in interior of the long rows lights
|
|
|
1
|
|||||
|
|
3
|
Blue flashing LED lights mounted on rear of the car roof
|
|
|
2
|
|||||
|
|
4
|
Blue flashing LED lights mounted on right and left side of the car roof
|
|
|
2
|
|||||
|
|
5
|
White flashing LED lights mounted on right and left side of the car roof
|
|
|
2
|
|||||
|
|
6
|
Long rows lights mounted on front of the car roof
|
|
|
1
|
|||||
|
Oxygen Supply System
|
|
|
|
|
|
|||||
|
G
|
1
|
2 sets of 10L oxygen cylinder with fixed support
|
|
|
2
|
|||||
|
|
2
|
Humidifier fast conversion interface
|
|
|
1
|
|||||
|
|
3
|
Humidifier
|
|
|
1
|
|||||
|
|
4
|
Built-in type Oxygen pipeline
|
|
|
1
|
|||||
|
|
5
|
Oxygen terminal
|
|
|
2
|
|||||
|
H |
Medical warehouse device
|
|
|
|
|
|||||
|
|
1
|
Polymer Hard Top Interior
|
|
|
|
|||||
|
|
2
|
Partition wall of polymer material
|
|
|
|
|||||
|
|
3
|
Transparent push-pull observation window for middle partition
|
|
|
|
|||||
|
|
4
|
Left top Walker plate long hanging cabinet
|
|
|
|
|||||
|
|
5
|
Left middle Walker plate Medical Devices and Lockers
|
|
|
|
|||||
|
|
6
|
Rear left Walker plate Vertical oxygen cabinet
|
|
|
|
|||||
|
|
7
|
Installation of hidden safety embedded parts throughout vehicle
|
|
|
|
|||||
|
|
8
|
Full blue collision walls in medical warehouse
|
|
|
|
|||||
|
|
Seat System
|
|
|
|
|
|||||
|
|
1
|
Reverse folding seat
|
|
|
1
|
|||||
|
|
2
|
Right side forward mounted standalone back seat
|
|
|
1
|
|||||
|
|
3
|
Long horizontal soft seat with seat belt
|
|
|
1
|
|||||
|
|
Rescue Stretcher
|
|
|
|
|
|||||
|
|
1
|
Automatic loading stretcher and Stretcher guide
|
|
|
1
|
|||||
|
|
2
|
Stable Folding transfusion hanger
|
|
|
1
|
|||||
|
|
Safety System
|
|
|
|
|
|||||
|
|
1
|
Fire extinguisher
|
|
|
1
|
|||||
|
|
2
|
Safety handrail
|
|
|
1
|
|||||
|
Technical parameters of Negative Pressure ambulance Device
|
|
|
|
|
|
|||||
|
I
|
1
|
Overall size of negative pressure box(mm)
|
|
620*420*320
|
|
|||||
|
|
2
|
Medium efficiency filter size(mm)
|
|
450*300*21
|
|
|||||
|
|
3
|
High efficiency filter size(mm)
|
|
450*300*46
|
|
|||||
|
|
4
|
Voltage(V)
|
|
12
|
|
|||||
|
|
5
|
Current(A)
|
|
≤20
|
|
|||||
|
|
6
|
Exhaust volumem(m³/h)
|
|
≥800
|
|
|||||
|
|
7
|
Negative pressure range(Pa)
|
|
20~30
|
|
|||||
|
|
8
|
Error range(Pa)
|
|
1.0
|
|
|||||
|
|
9
|
Effective filtering
|
|
99.995@0.3um
|
|
|||||
|
|
10
|
Ventilation rate
|
|
25 times/h
|
|
|||||
Keeyak, founded in 2009, is a special vehicle production company dedicated to the design, development, and manufacture of special vehicles such as water tanker trucks, garbage trucks, fuel tankers, high-aerial work vehicles, bulk feed trucks, tow trucks, and so on. For three years in a row, sales of high-aerial work vehicles ranked third in China.
★
All products have passed the "3C" mandatory certification, and product qualification has exceeded 99.5%, which has been widely acknowledged by the market and customers. It has obtained the GB/T19001-2016(ISO 9001:2015) Quality Management System certification, as well as the GB/T27922-2011 five-star after-sales service certification.
★ We achieved something great. 33 authorized patents, two innovation patents, and one appearance patent have been obtained by the company.
★ Since entering the international market in 2010, Keeyak has built strong working relationships with numerous reputable international businesses. The Philippines, Cambodia, Tanzania, the Republic of Costa Rica, the Republic of Bolivia, Chile, the Republic of Colombia, Ethiopia, and Venezuela are just a few of the more than 50 nations and areas to which goods are shipped. Customers have been pleased with our products.
Q1. What is your terms of packing?
A: Generally, our cargo is suitable for naked or waxed packing, in container or bulk ship or RO-RO ship according to the size of the cargo.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
