Quick Details
-
Fork Width:
-
160mm
-
Warranty of core components:
-
Other
-
Core Components:
-
Other
-
Weight (KG):
-
1500 kg
-
Product Name:
-

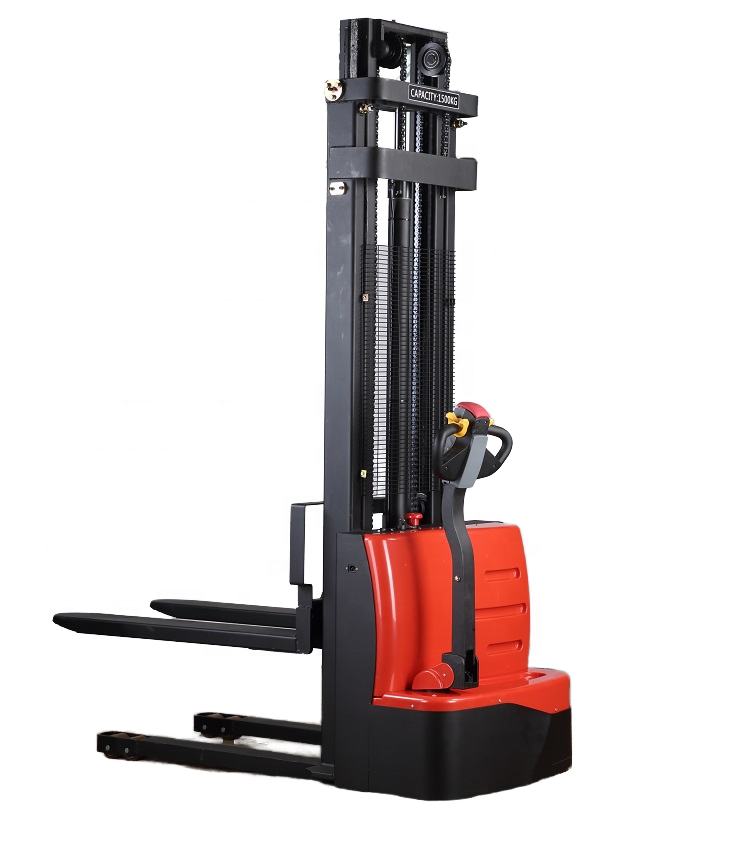

Electric Manual Stacker
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
1500Kg
-
Vehicle width:
-
820mm
-
Fork length:
-
1150mm
-
Fork outer width:
-
680mm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Fork Length:
-
1150mm
-
Fork Width:
-
160mm
-
Warranty of core components:
-
Other
-
Core Components:
-
Other
-
Weight (KG):
-
1500 kg
-
Product Name:
-
Electric Manual Stacker
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
1500Kg
-
Vehicle width:
-
820mm
-
Fork length:
-
1150mm
-
Fork outer width:
-
680mm
|
|
model
|
unit
|
CDDP15
|
|
|
|
|
||||
|
feature
|
Driving method
|
|
Electric
|
|
|
|
|
||||
|
|
Driving style
|
|
Standing driving
|
|
|
|
|
||||
|
|
Rated load
|
Q(kg)
|
1500
|
|
|
|
|
||||
|
|
Load center distance
|
C(mm)
|
500
|
|
|
|
|
||||
|
|
Lifting height
|
H(mm)
|
1600/2000/2500/3000/3500
|
|
|
|
|
||||
|
Wheel chassis
|
wheel
|
|
PU wheel
|
|
|
|
|
||||
|
|
Bearing wheel
|
mm
|
φ80*70
|
|
|
|
|
||||
|
|
Balance wheel
|
mm
|
φ130*55
|
|
|
|
|
||||
|
|
Drive wheel
|
mm
|
φ210*70
|
|
|
|
|
||||
|
size
|
The lowest height of the fork
|
H3(mm）
|
88
|
|
|
|
|
||||
|
|
Vehicle width
|
B(mm)
|
820
|
|
|
|
|
||||
|
|
Fork length
|
L(mm)
|
1150
|
|
|
|
|
||||
|
|
Fork outer width
|
E(mm)
|
680
|
|
|
|
|
||||
|
|
Turning radius
|
mm
|
1520
|
|
|
|
|
||||
|
performance data
|
Driving speed
|
km/h
|
3~5
|
|
|
|
|
||||
|
|
Increase speed
|
m/s
|
0.08~0.13
|
|
|
|
|
||||
|
|
Descent speed
|
m/s
|
0.1~0.13
|
|
|
|
|
||||
|
|
Gradient
|
%
|
4~6
|
|
|
|
|
||||
|
|
service brake
|
|
Electromagnetic braking
|
|
|
|
|
||||
|
motor
|
Drive motor power
|
kw
|
DC0.75
|
|
|
|
|
||||
|
|
Increase motor power
|
kw
|
DC2.2
|
|
|
|
|
||||
|
Battery
|
Voltage
|
v
|
24
|
|
|
|
|
||||
|
|
Capacity/Battery type
|
ah
|
80/12v（X2）
|
|
|
|
|
||||
|
Control system
|
controller
|
|
P90
|
|
|
|
|
||||
Q:How long is the Warranty for Guanniu product?
A:One year warranty except for wearing parts
Q:How about the delivery time?
A:Delivery within 30 days
Q:How about Guanniu spare parts?
A:Accessories can be provided according to customer needs
Q:How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A:Operating time and charging time are determined by the size of the battery and charger
Q:Can Guanniu provide customized products?
A:Can provide customized products
Q:What’s the specification of the chargers?
A:Chargers are provided according to the battery size, and can also be provided according to customer requirements
Q:Why should you buy from us not from other suppliers?
A:We can provide you with the products you need, we have more cost-effective products, can provide fast and effective after-sales service
